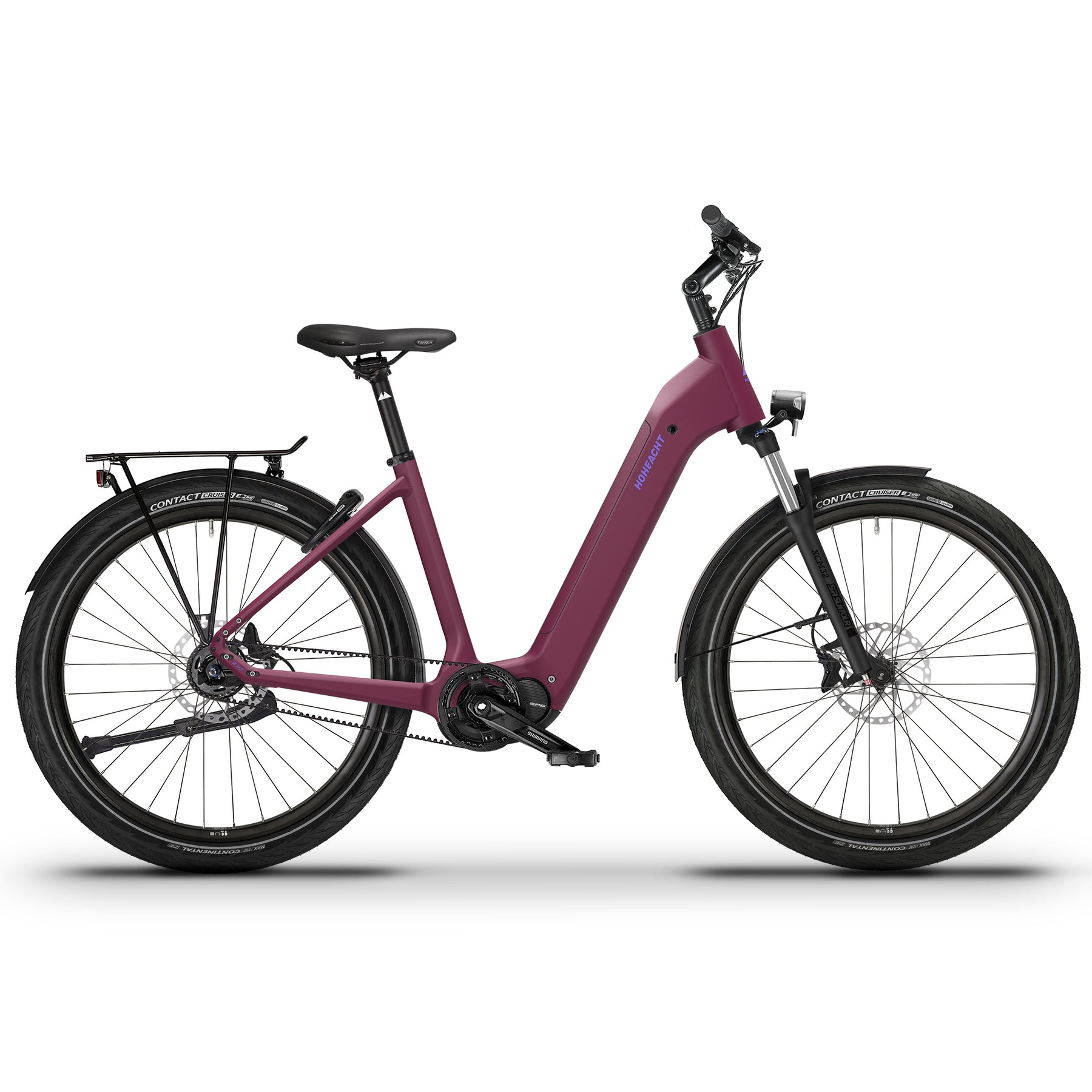

GRANDAMO Urbo – comfortable city e-bike with power

The HoheAcht GRANDAMO Urbo ensures comfort in your everyday bike life. “GRANDAMO” means “great love” and “Urbo” means “city”. The GRANDAMO models with a permissible total weight of 170 kg are just right for tall people and for extra cargo. In comparison, the AMO models are approved for up to 140 kg.

The 85 Nm strong Shimano EP6 motor lets you conquer your city with more power than ever. The Suntour suspension fork with 100 mm travel offers comfortable driving pleasure.

AREA OF USAGE

City | Commuting | Forest and forestry paths – perfect for the city for shopping with extra cargo or for tours and excursions

MOTOR

Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor

Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.

SHIFTING SYSTEM

Shimano Steps, Nexus SG-C7000, 5-speed hub gear with freewheel, offers not only 5 gears, but also exceptional robustness and durability. This makes it seamlessly compatible with mid-motors.

Frame

Wave, aluminum

Rear brake

Shimano, BR-MT420, four-piston

Suspension fork

SR Suntour, XCM32, 100 mm travel

Brake disc front

Shimano, FW SM-RT64, 180 mm, Center lock, RW RT-EM600

Handlebar

HoheAcht, 31.8 mm, width 660 mm, bend 37°, rise 28 mm, aluminum, black

Brake disc rear

Shimano, FW SM-RT64, 180 mm, center lock, RW RT-EM600

Stem

HoheAcht, 31,8 mm, 90 mm, 0-60°, aluminum, black

Saddle

Selle Royal, Nuvola 5060 DRC

Grips

Herrmans, LINE, 125 mm / 90 mm

Seatpost

HoheAcht, Seatpost 2D, 31,6 mm x 350 mm, 10 mm offset, aluminum

Headset

ACROS, zs56, zs66, industrial bearings, integrated cable routing

Rack

AtranVelo, Tour 365 BS  H-Cargo, 27 kg payload

Rim

Mach1, Trucky 30, 27,5'', aluminum, black

Front light

Herrmans, H-BLACK MR8 E-BIKE 6-12 V, LED, 3.3 W, 180 lm, reflector

Wheel size

27,5 inch

Rear light

Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector

Tyres

Continental, CONTACT Cruiser, 27.5'' x 2.4'' (60-584), reflex


Mudguard


ChingChern, aluminum, powder-coated

Front wheel hub

Formula, CL-81, Disc, 15 x 100 mm, industrial bearings

Battery & frame lock

ABUS, 5755L NR BK OE; ABUS, BLO SHI IT2 X+;
frame lock,
keyed alike

Rear wheel hub

Shimano, Nexus, SG-C7000, 5-speed, freewheel, center lock

Side stand

Ursus, R81 Wave, KSA 40 mm, rear

Sprocket

Gates, CDX pulley, 28 teeth

Pedals

Marwi, SP-828 Black SBL, aluminum with PP

Drive belt

Gates, 122T CDX, blue

Motor

Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor

Crankset

Chainring Gates, 39T CDX + Spider + trouser guard ring, aluminum

Battery

Shimano Steps, BT-EN806, 630 Wh, integrated

Crank arm set Shimano Steps, FC-EM600, 170 mm

Display

Shimano Steps, SC-EN600, Bluetooth, ANT private

Derailleur

Shimano Steps, Nexus SG-C7000, 5-speed hub gear, freewheel

Charger

Shimano Steps, EC-E8004, 4 A

Shift lever

Shimano, Nexus, SL-C7000, 5 speed, twist shifter

Weight

From 29,0 kg

Front brake

Shimano, BR-MT420, four-piston

Max. permissible weight

170 kg



General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.

 Frame size (cm) 48 55 61
 Seat tube (mm) 480 550 610
 Tob tube horizontal  (mm) 618 643 668
 Head tube (mm) 195 215 215
 Wheelbase (mm) 1183 1210 1235
 Chainstays (mm) 484 484 484
 Bottom bracket height (mm) 286 286 286
 Head tube angle (°) 69 69 69
 Seat angle (°) 74 74 74
 Stack (mm) 680 698 698
 Reach (mm) 423 442 468
