PASIO Terra
PASIO Terra
PASIO Terra

PASIO Terra

Regular price3.999,00 €
/
Tax included.

Color
Size

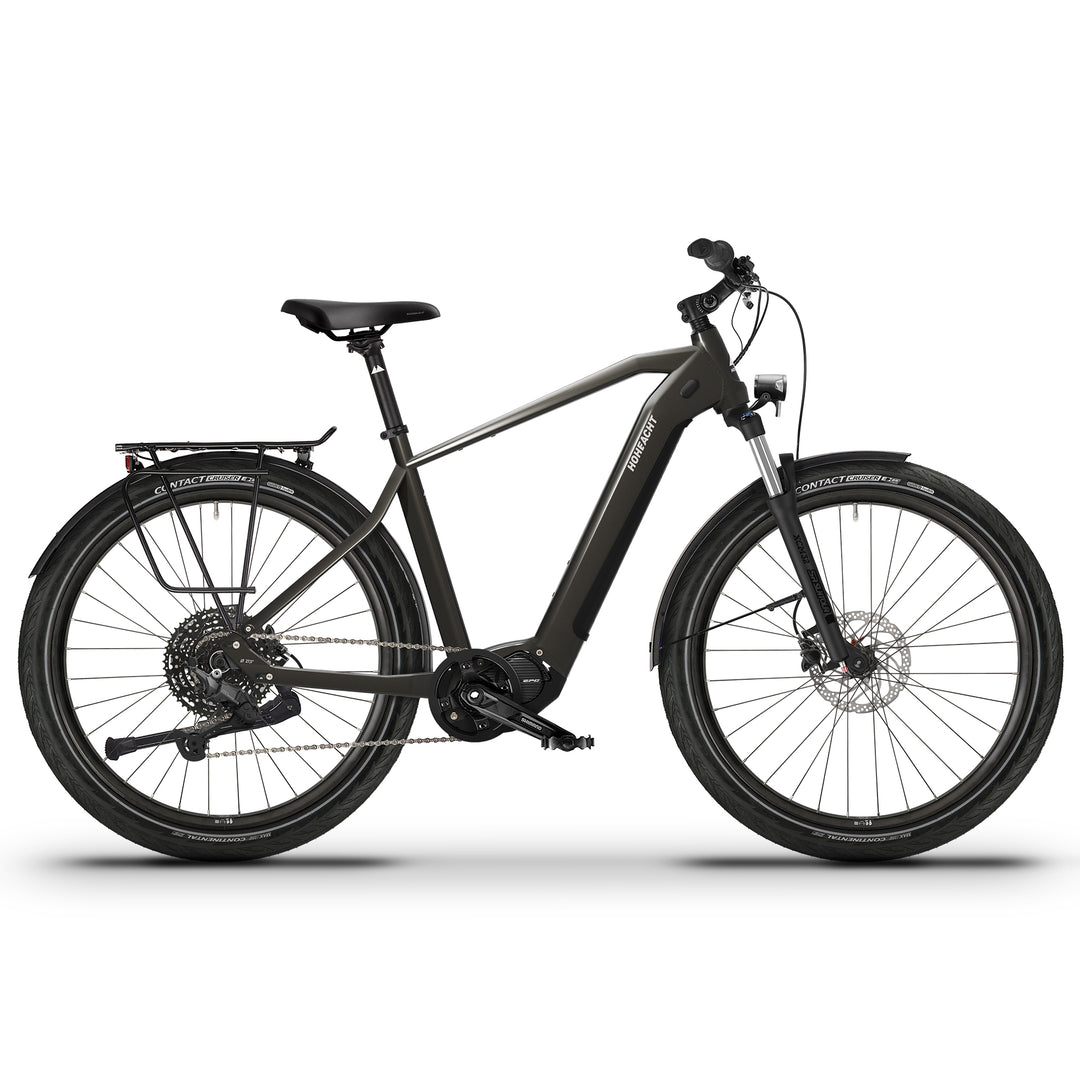

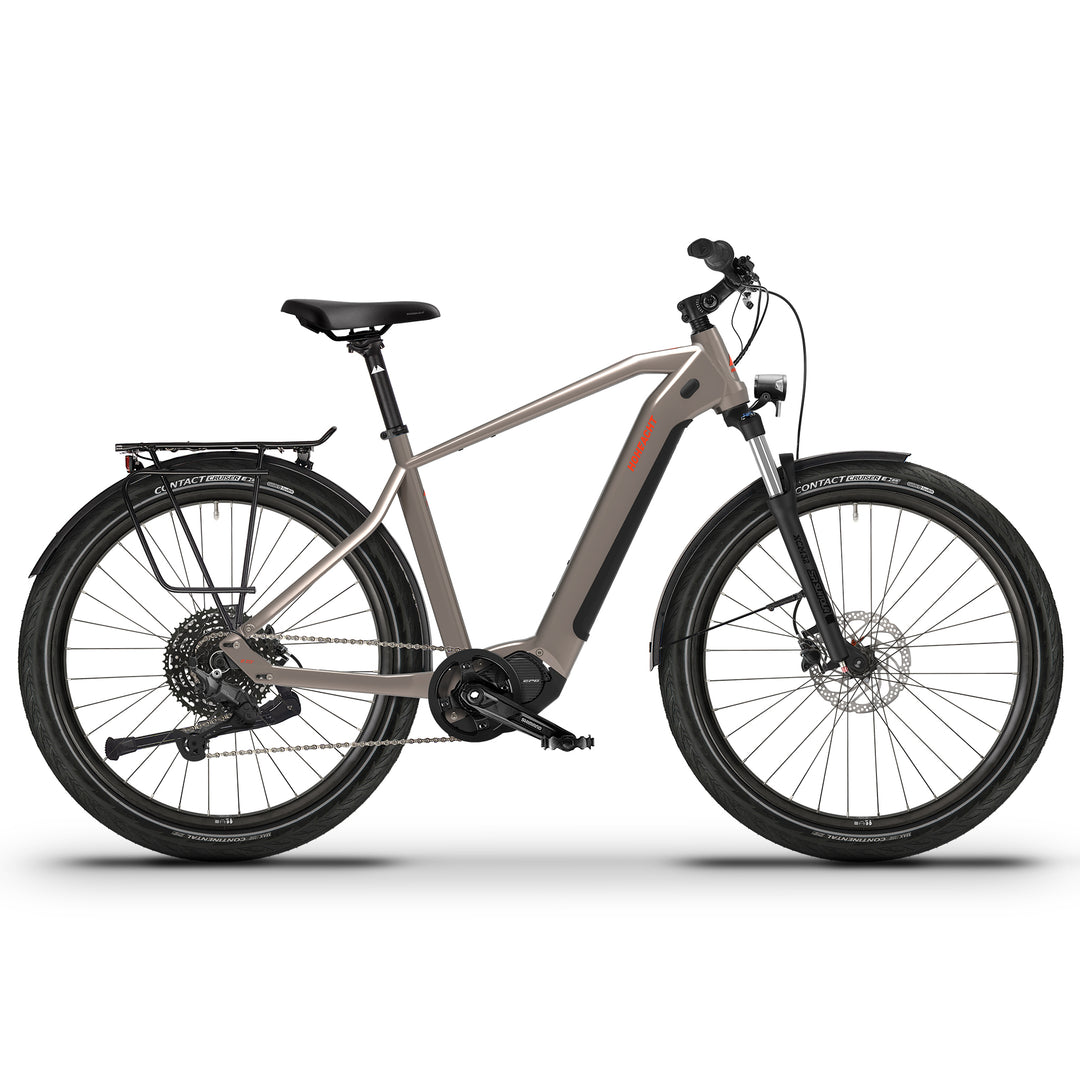

PASIO Terra - A versatile touring e-bike

The HoheAcht PASIO Terra is a reliable and versatile touring e-bike with a modern diamond frame and high-quality equipment.

It offers you an SR Suntour XCM32 suspension fork with 100 mm travel for a comfortable riding experience on various terrains. The hydraulic Shimano disc brakes ensure reliable braking power at both the front and rear. The powerful Shimano Steps EP6 mid-motor with 85 Nm torque gives you efficient support when pedaling. The integrated 630 Wh battery allows you to cover longer distances without having to worry about battery power.

The Shimano Deore 12-speed derailleur allows precise shifting and a wide range of gears for different inclines. Continental CONTACT Cruiser tires have excellent grip and comfort on the road and off-road, the integrated reflective strip makes you visible even in the dark and increases safety. An AtranVelo luggage rack with a 27 kg cargo allows you to carry your Easily take equipment with you.

With a permissible total weight of 150 kg, the PASIO Terra is robust and ideal for longer tours and adventures on and off the road.

USAGE AREA

Commuting | Touring – perfect for touring on and off the road

MOTOR

Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-engine

Even demanding ones E-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.

SHIFTS

Discover the smooth shifting performance of the PASIA Terra e-bike with the high-quality Shimano Deore 12-speed derailleur gears. This transmission offers you a wide range of gears for an effortless driving experience on a wide range of terrain. Thanks to the reliable Shimano Deore RD-M6100 rear derailleur and the comfortable Shimano Deore SL-M6100 shifter, you can easily change gears. The robust combination of the Miranda CF3D chainring and the Shimano Steps FC-EM600 crank arm set ensures that you can pedal powerfully, whether you are on the road or off-road. Enjoy a smooth riding experience no matter where your adventure takes you.

Frame

Diamond, aluminum

Brake disc front


Shimano, SM-RT30, 180 mm, center lock


Suspension fork

Suspension fork, SR Suntour, XCM32, 100 mm travel

Brake disc rear


Shimano, RT-EM300, 180 mm, center lock


Handlebar

HoheAcht, 31.8 mm, width 640 mm, bend 9°, rise 25 mm, aluminum, black

Saddle


Selle Royal, Essenza Plus, male


Stem

HoheAcht, 31.8 mm, 95 mm, 0-60°, aluminum, black

Seatpost


HoheAcht, Seatpost 2D, 31.6 mm x 350 mm, 10 mm offset, aluminum

Grips

Herrmans, LINE, 125 mm

Rack


AtranVelo, Tour 365 BS H-Cargo, 27 kg payload


Headset

ACROS, zs44, zs56, industrial bearings

Front light


Herrmans, H-BLACK MR8 E-BIKE 6-12 V, LED, 3.3 W, 180 lm, reflector


Rim

Mach1, Trucky 30, 27.5'', aluminum, black

Rear light


Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector


Tyres

Continental, CONTACT Cruiser, 27.5'' x 2.4'' (60-584), reflex

Splash

aluminum, black

Front wheel hub

Formula, CL-81, Disc, 15 x 100 mm, industrial bearings

Battery lock

ABUS, BLO SHI IT2 XPLUS

Rear wheel hub

Formula, ECT-148S, disc, 12 x 148 mm, industrial bearings, Boost

Side stand


Ursus, R81 Wave, KSA 40 mm, rear


Sprocket

SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth

Pedals


Marwi, SP-828 Black SBL, aluminum with PP


Chain

Kette
YBN, S12e S2

Motor

Shimano Steps, DU-EP600, 25km/h, 85 Nm, mid-motor

Derailleur

Shimano, Deore, RD-M6100, 12-speed derailleur

Battery


Shimano Steps, BT-EN806, 630 Wh, integrated


Shift lever

Shimano, Deore, SL-M6100, 12-speed


Display


Shimano Steps, SC-EN600, Bluetooth, ANT private

Crankset

Chainring Miranda, CF3D, 36 teeth + spider + chain guard

Charger


Shimano Steps, EC-E8004, 4 A


Crank arm set Shimano Steps, FC-EM600, 170 mm

Front brake

Shimano, BR-MT200

Weight

From 25,4 kg

Rear brake

Shimano, BR-MT200

Max. permissible weight

150 kg


General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.

Frame size (cm) 46 50 54 58
Seat tube (mm) 460 500 540 580
Tob tube horizontal (mm) 605 620 640 660
Head tube (mm) 150 150 150 150
Wheelbase (mm) 1181,7 1196,7 1196,7 1212,7
Chainstays (mm) 475 475 475 475
Bottom bracket height (mm) 295 295 295 295
Head tube angle (°) 68 68 69 69
Seat angle (°) 74,5 74,5 73,5 73,5
Stack (mm) 650 650 650 650
Reach (mm) 425 440 447 467
