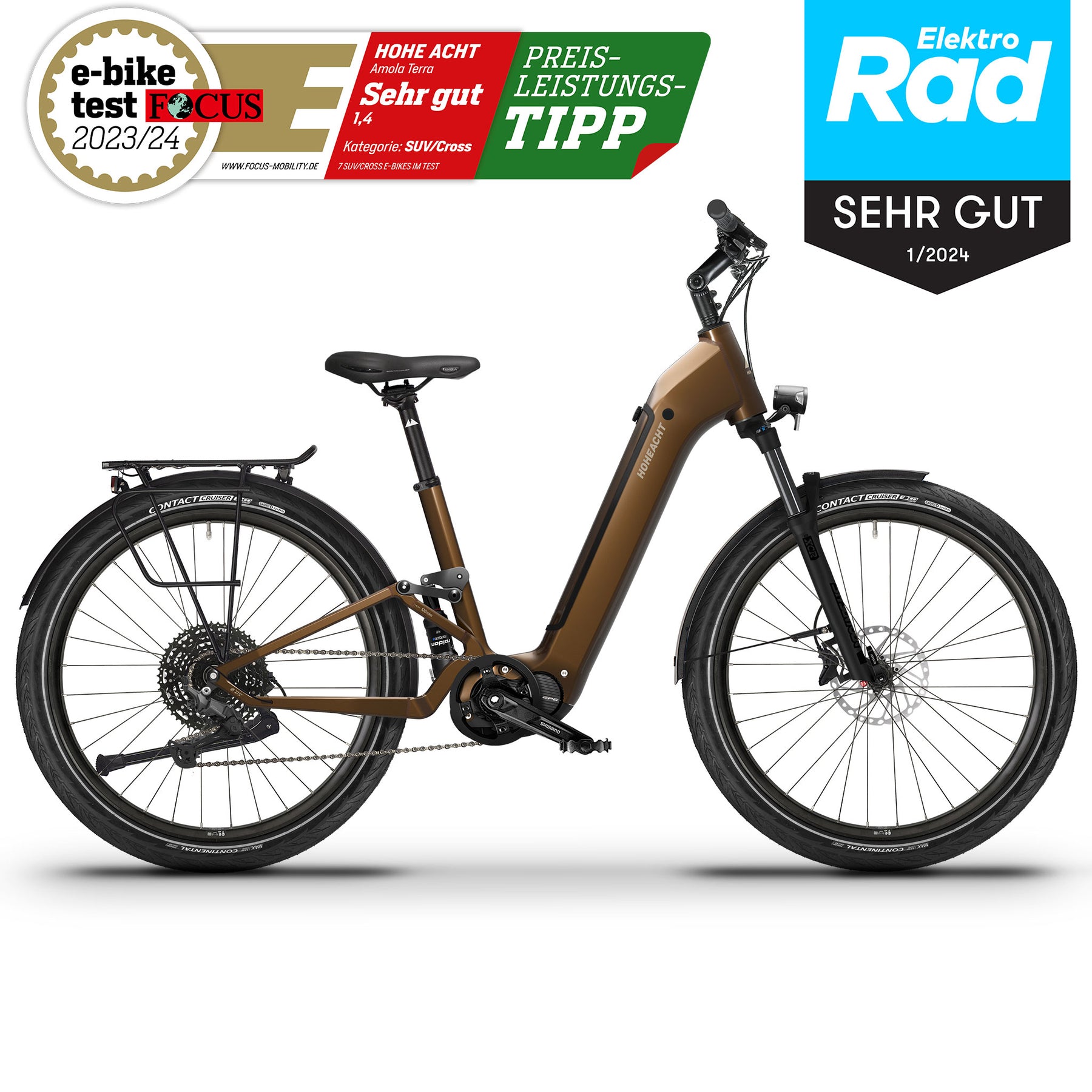

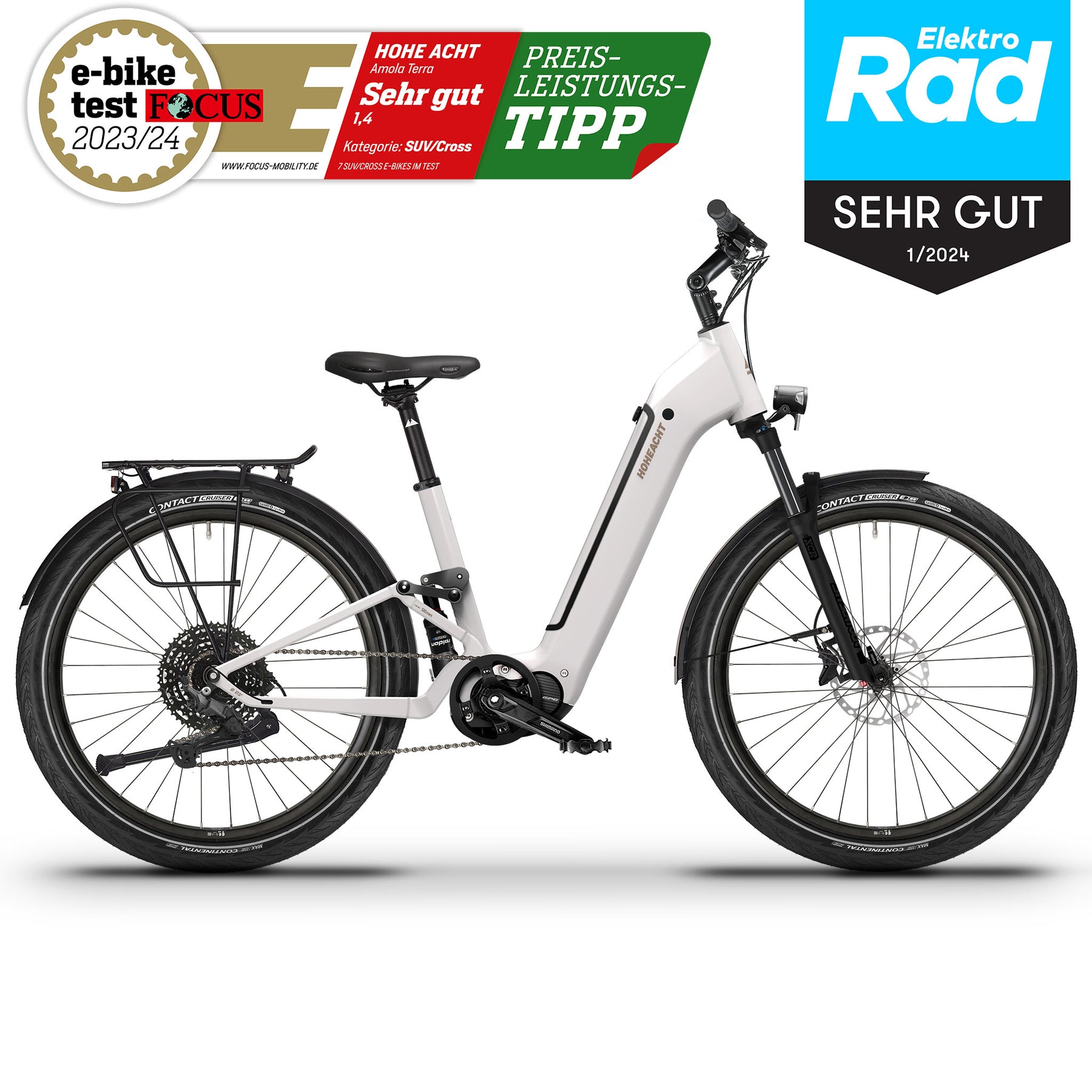

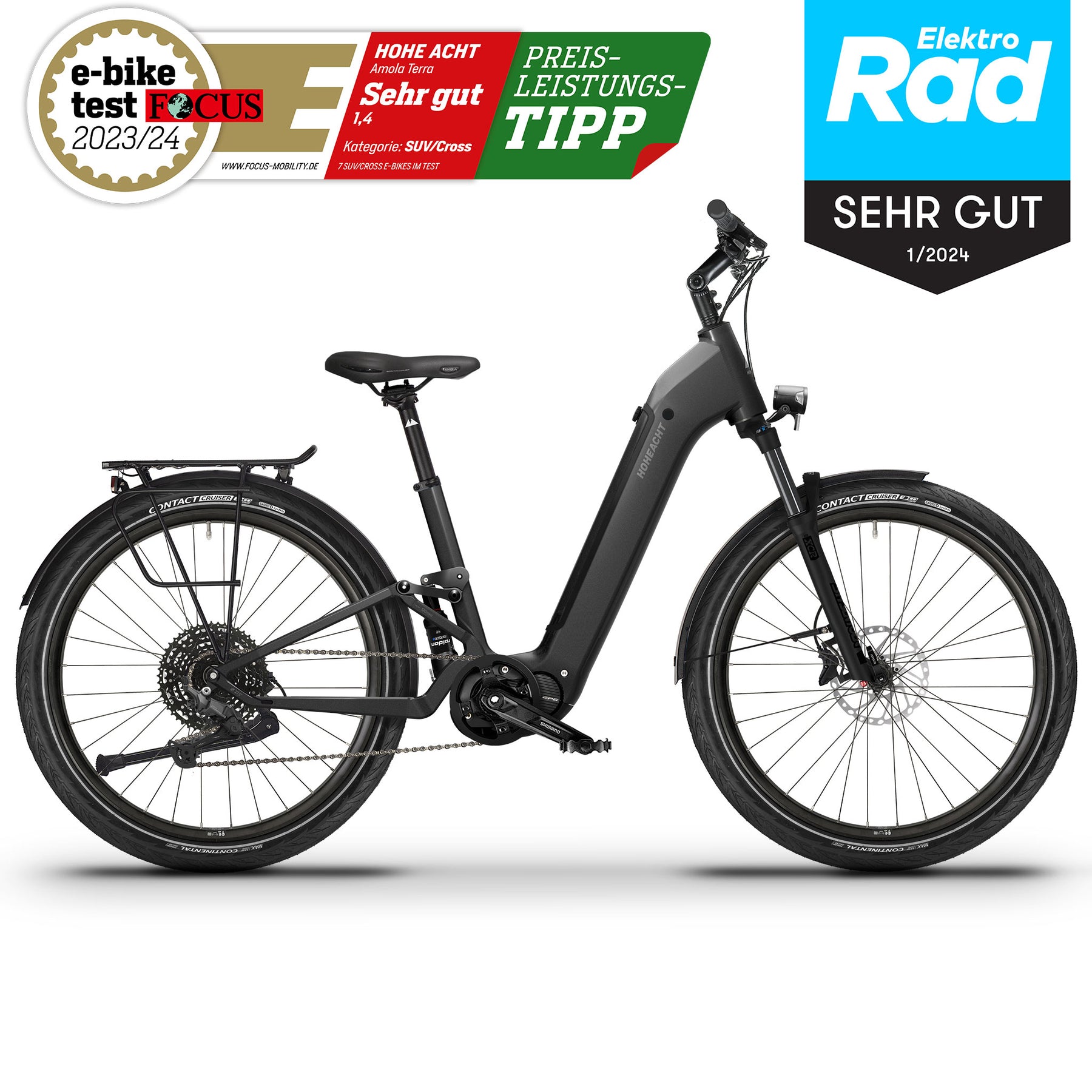

AMOLA Terra: THE E-TREKKING FULLY WITH RESERVES
The full-suspension low step AMOLA Terra with 120 mm suspension travel brings every trekking enthusiast comfortably and safely to their destination. Both the SR Suntour shock in the rear and the SR Suntour suspension fork can be perfectly adjusted to weight and use using the air pressure. The deep step-through not only makes it easier to get on and off, but also offers safe handling with full luggage bags. The powerful EP6 mid-motor from Shimano accelerates with a powerful torque of up to 85 Nm. In combination with the large, integrated 630 Wh battery, nothing stands in the way of even long tours. Hydraulic four-piston disc brakes reliably decelerate system weights of up to 160 kg, regardless of the weather. With 12 gears and a large gear range of 455%, the Shimano Deore gears are ideal for the wide range of uses of the AMOLA Terra.
Price-performance tip - grade 1.4
"Because the upright sitting position can be enjoyed for hours with air suspension 120 mm suspension travel at the front and back without any loss of comfort."
Focus Mobility
ElektroRad-Test: very good
"The bike is very comfortable, the luggage rack has space and capacity for large bags, plus the powerful drive, which can also be used on mountain tours. The battery and lighting system also allow long tours until dusk and night."
"The HoheAcht Amola Terra is a comfort miracle. Riding on asphalt and gravel is a joy."
ElektroRad
AREA OF USAGE
Tours | Adventure – perfect for long expeditions on and off the road.
MOTOR

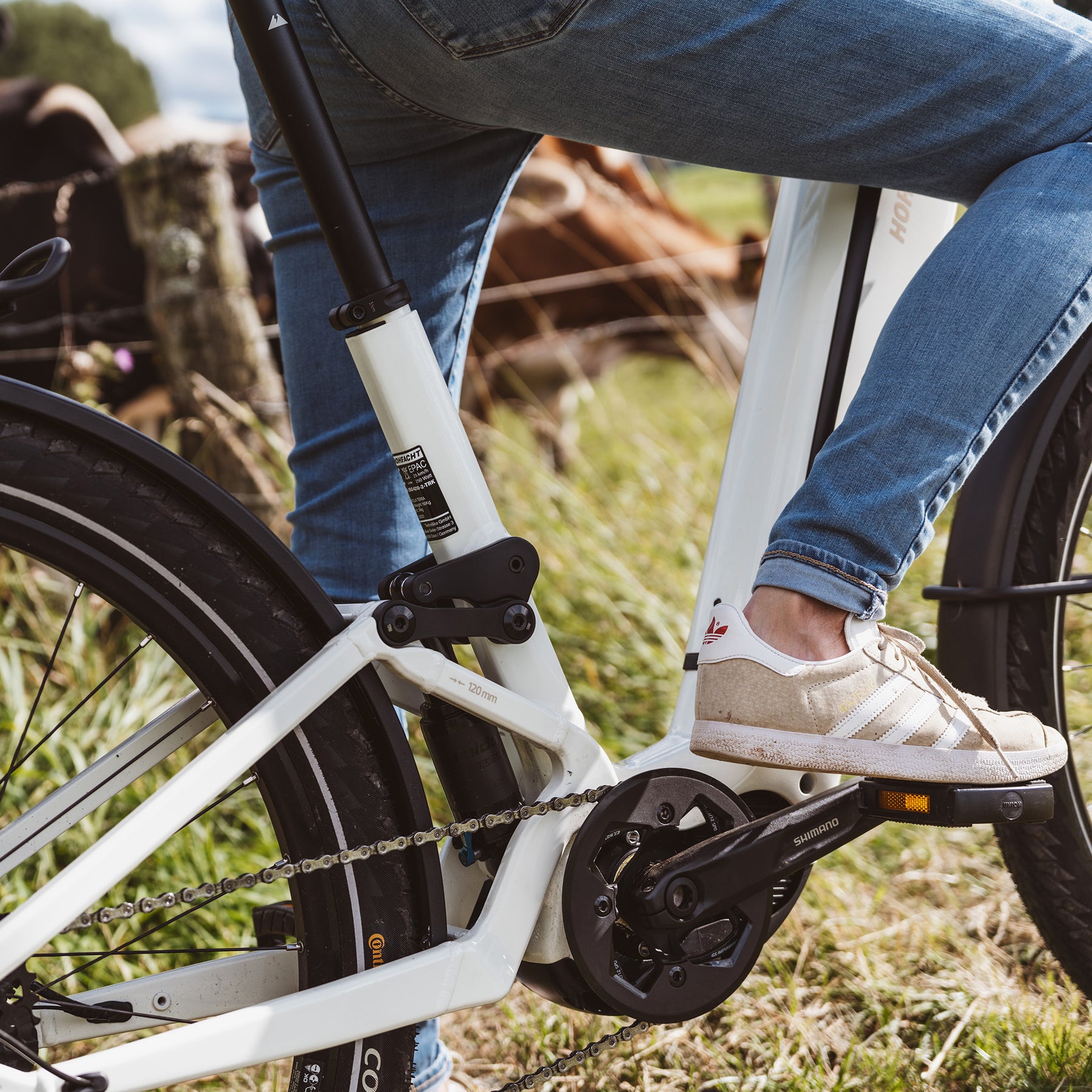

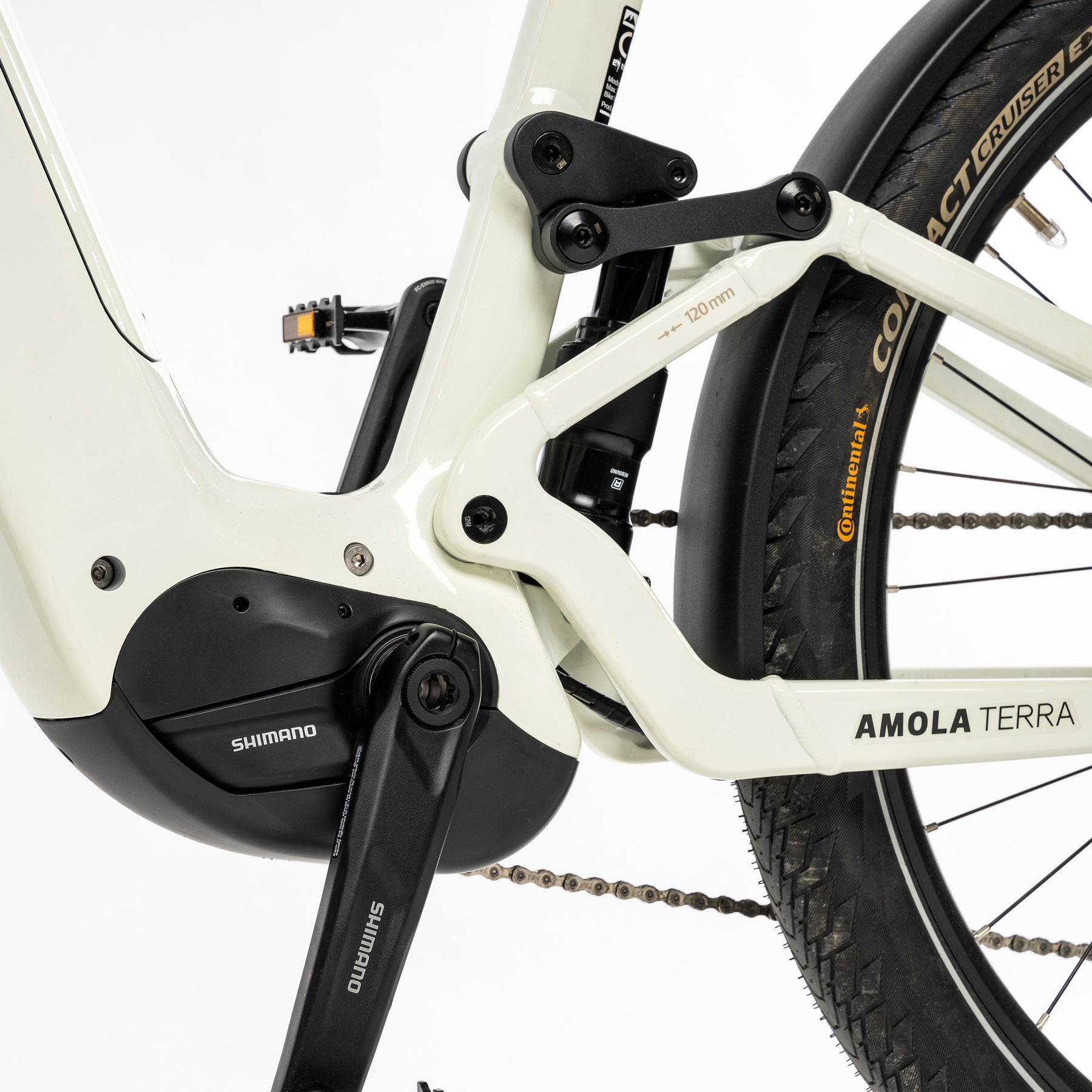

Shimano Steps, DU-EP6, 25 km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.
SHIFTING SYSTEM

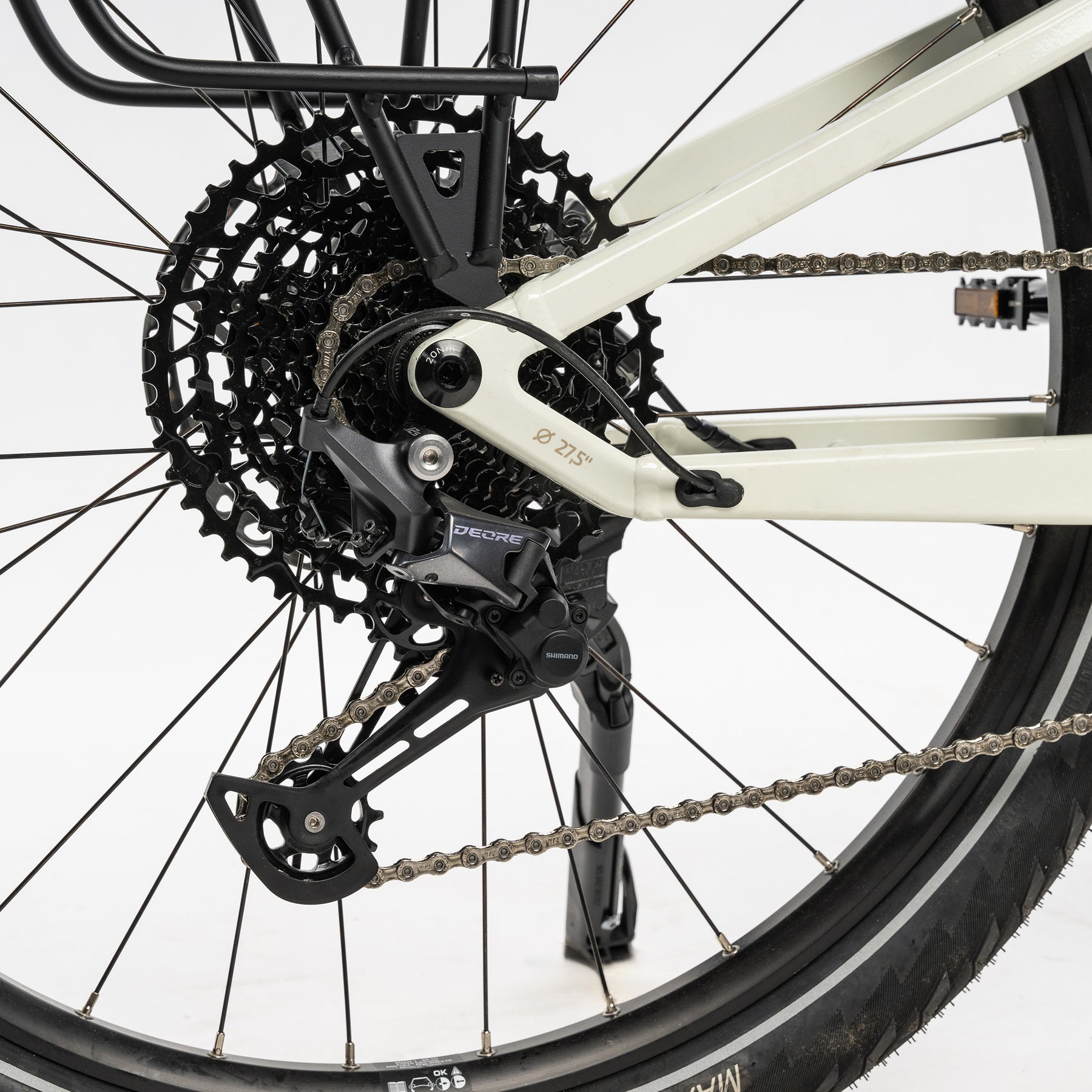

Shimano Deore RD-M6100 12-speed derailleur system
The Shimano Deore RD-M6100 rear derailleur significantly improves shifting by offering less resistance in low gears. Thanks to the larger 13T guide pulleys, efficiency is increased and chain management is optimized. In addition, the available range is significantly expanded through compatibility with Shimano's new 12-speed cassettes.
| Frame | Wave-Fully, aluminum | Rear brake | Shimano, BR-MT420, four-piston |
Suspension fork |

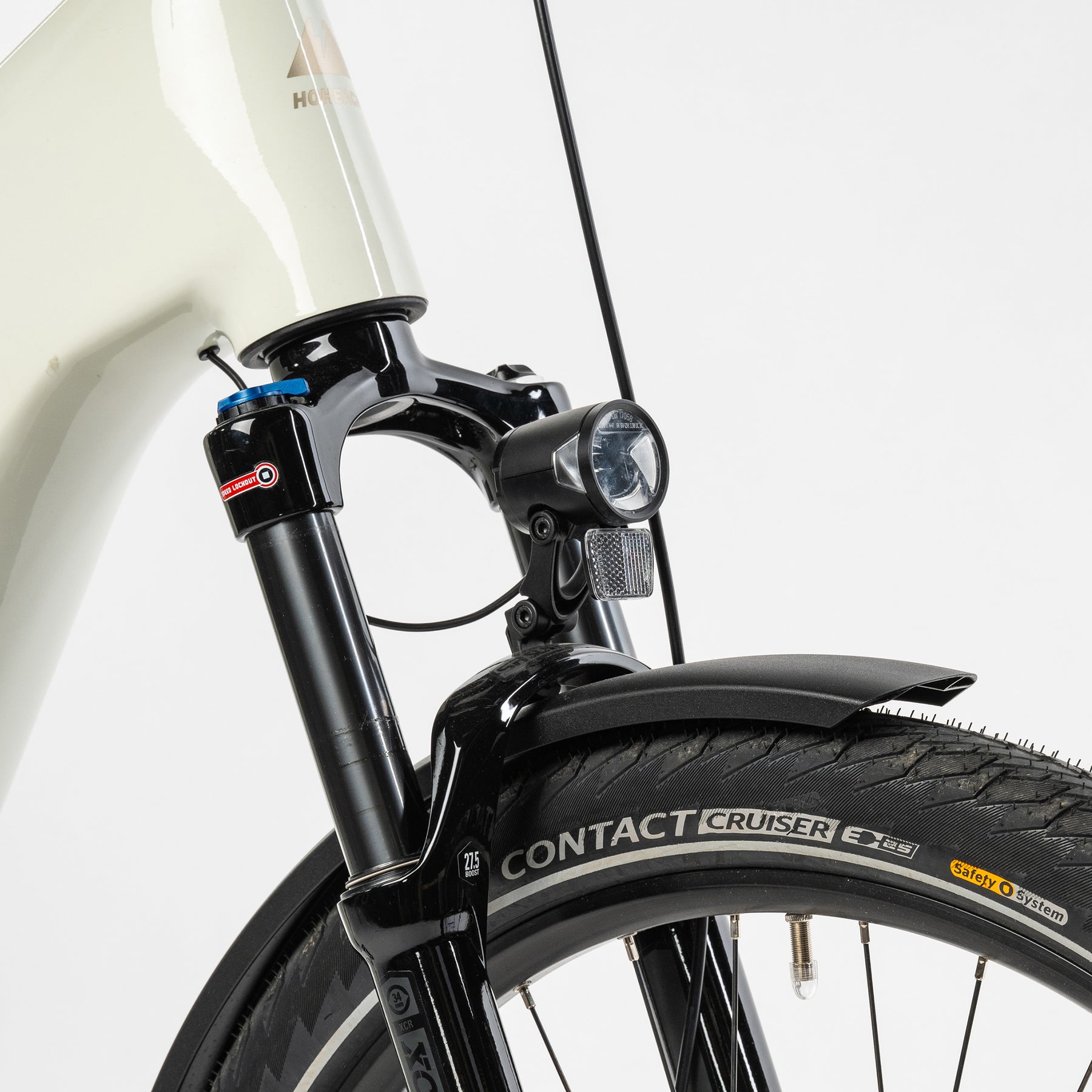

SR Suntour, XCR34-Boost-AIR, 120 mm travel | Brake disc front | Shimano, SM-RT64, 180 mm, center lock |

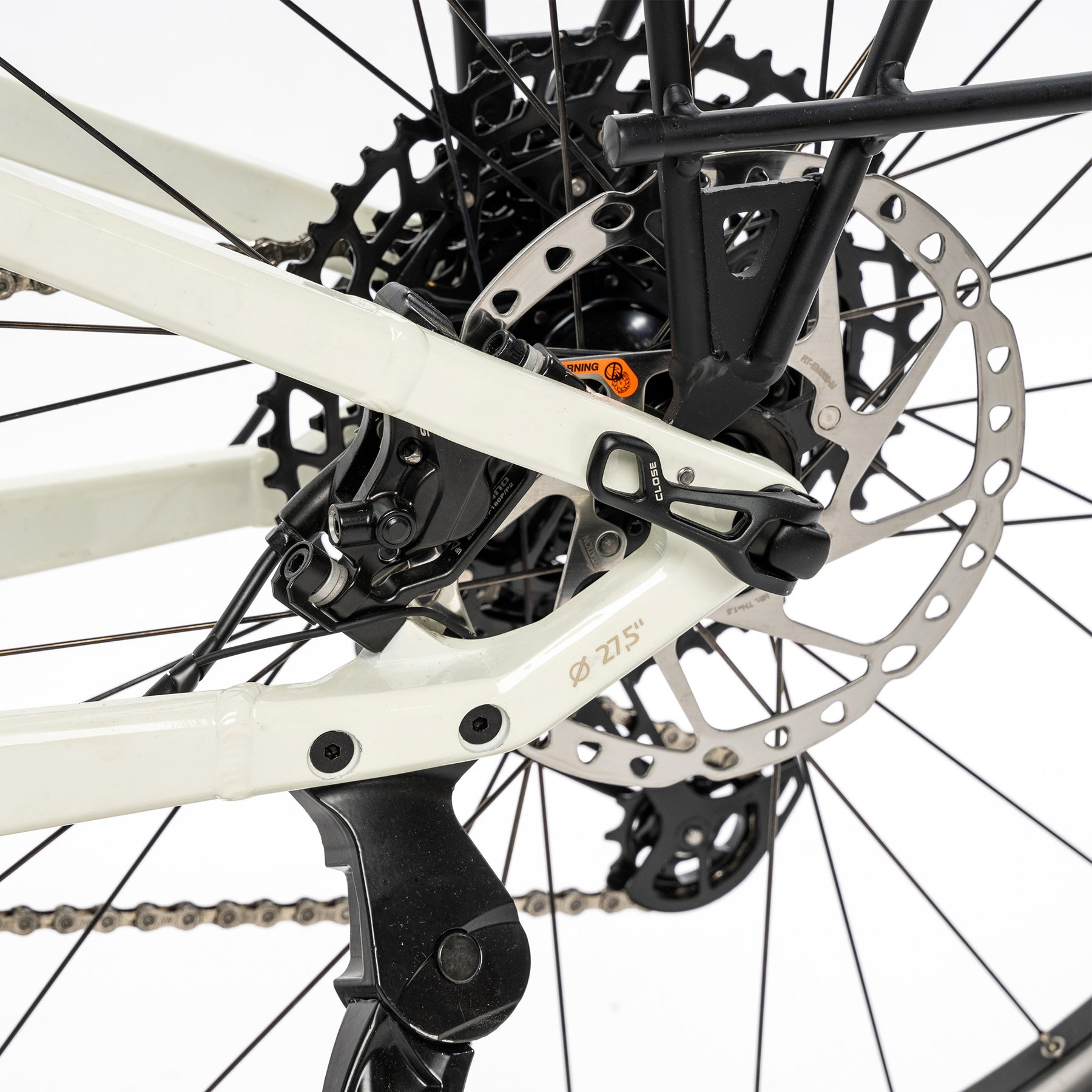

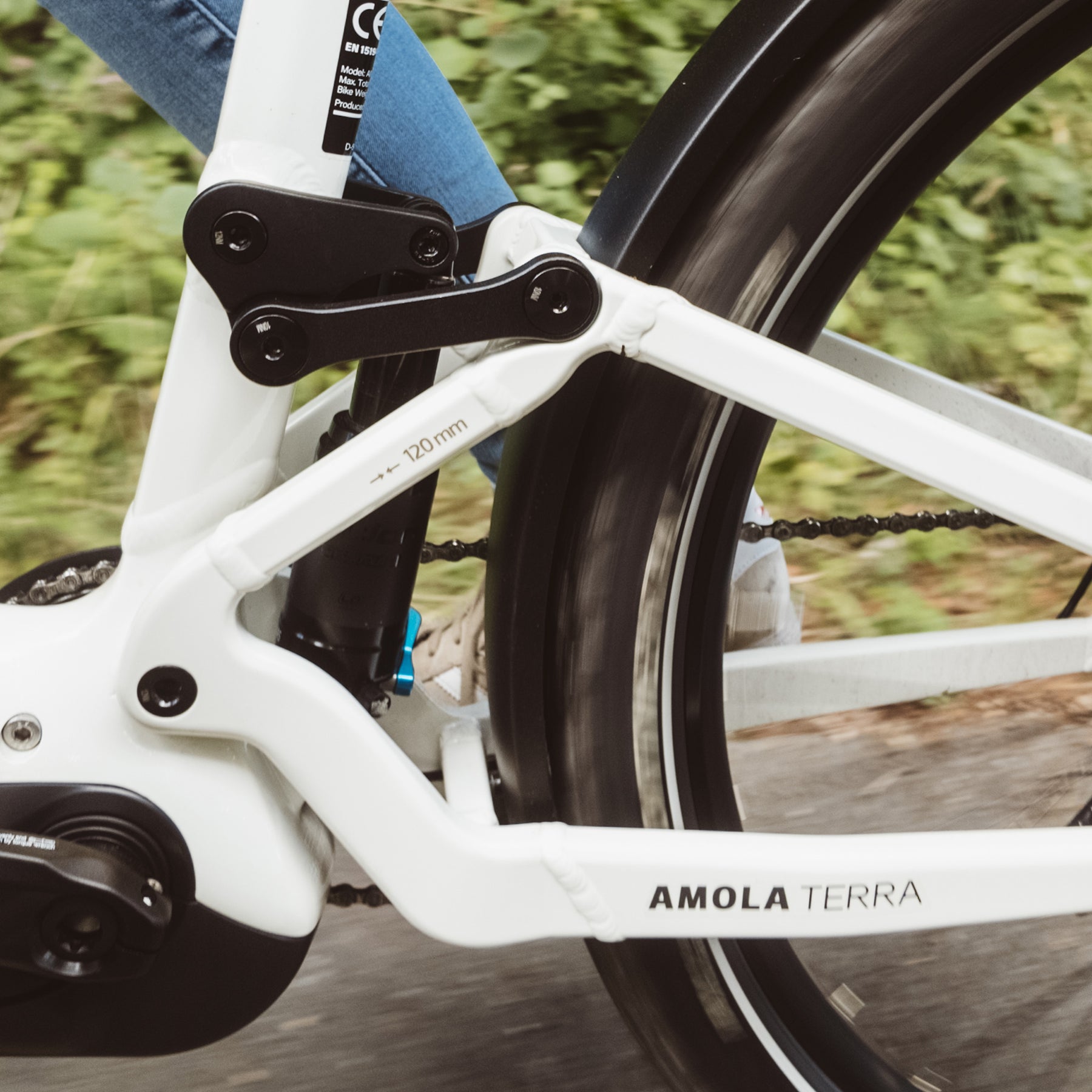

| Shock | SR Suntour, RAIDON LO METRIC, 120 mm travel | Brake disc rear | Shimano, RT-EM600, 180 mm, center lock |
| Handlebar | HoheAcht, 31.8 mm, width 660 mm, bend 37°, rise 28 mm, aluminum, black | Saddle | Selle Royal, Nuvola 5060 DRC |
| Stem | HoheAcht, 90 mm, 0-60°, aluminum, black | Seatpost | HoheAcht, Seatpost 2D, 30,9 mm x 350 mm, 10 mm offset, aluminum |

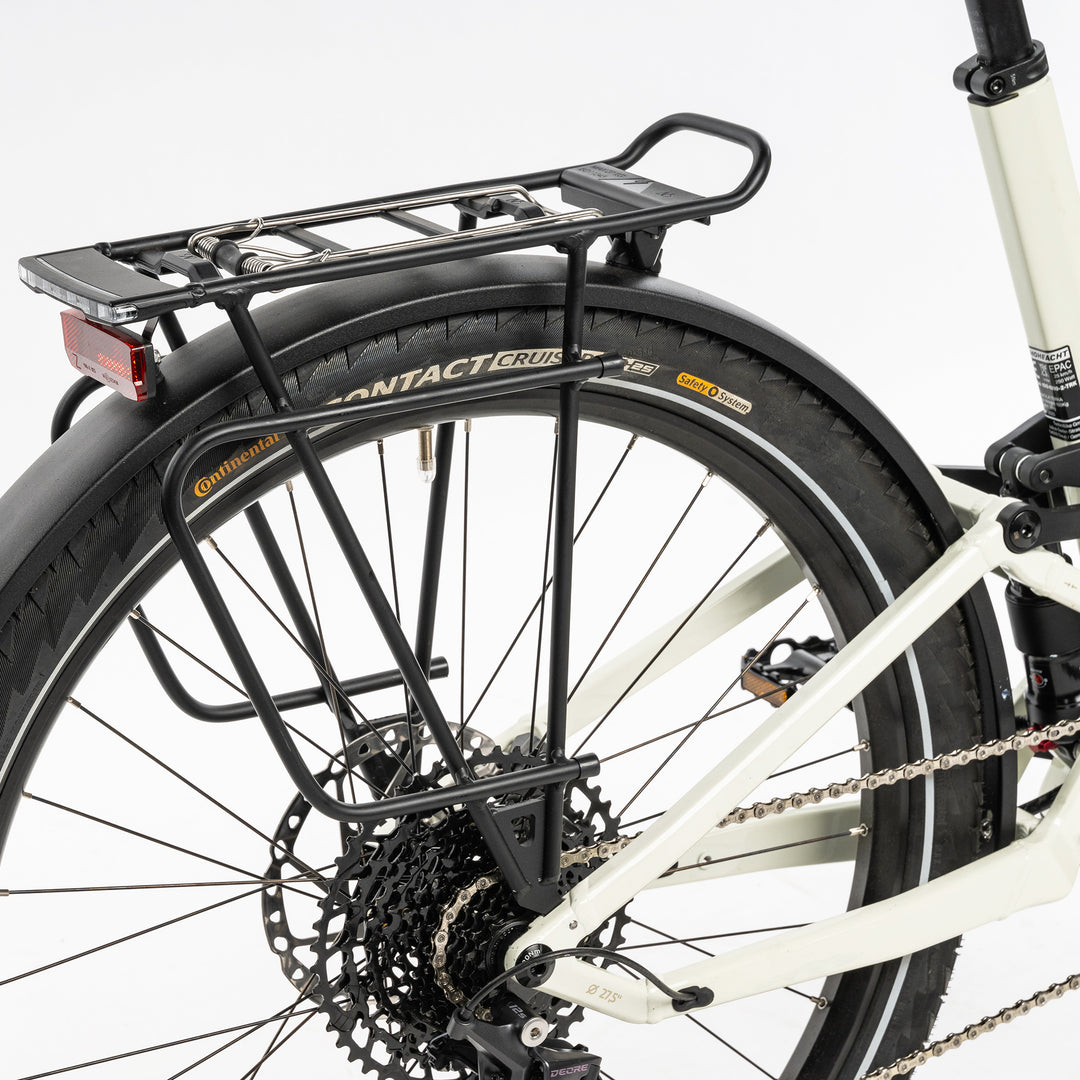

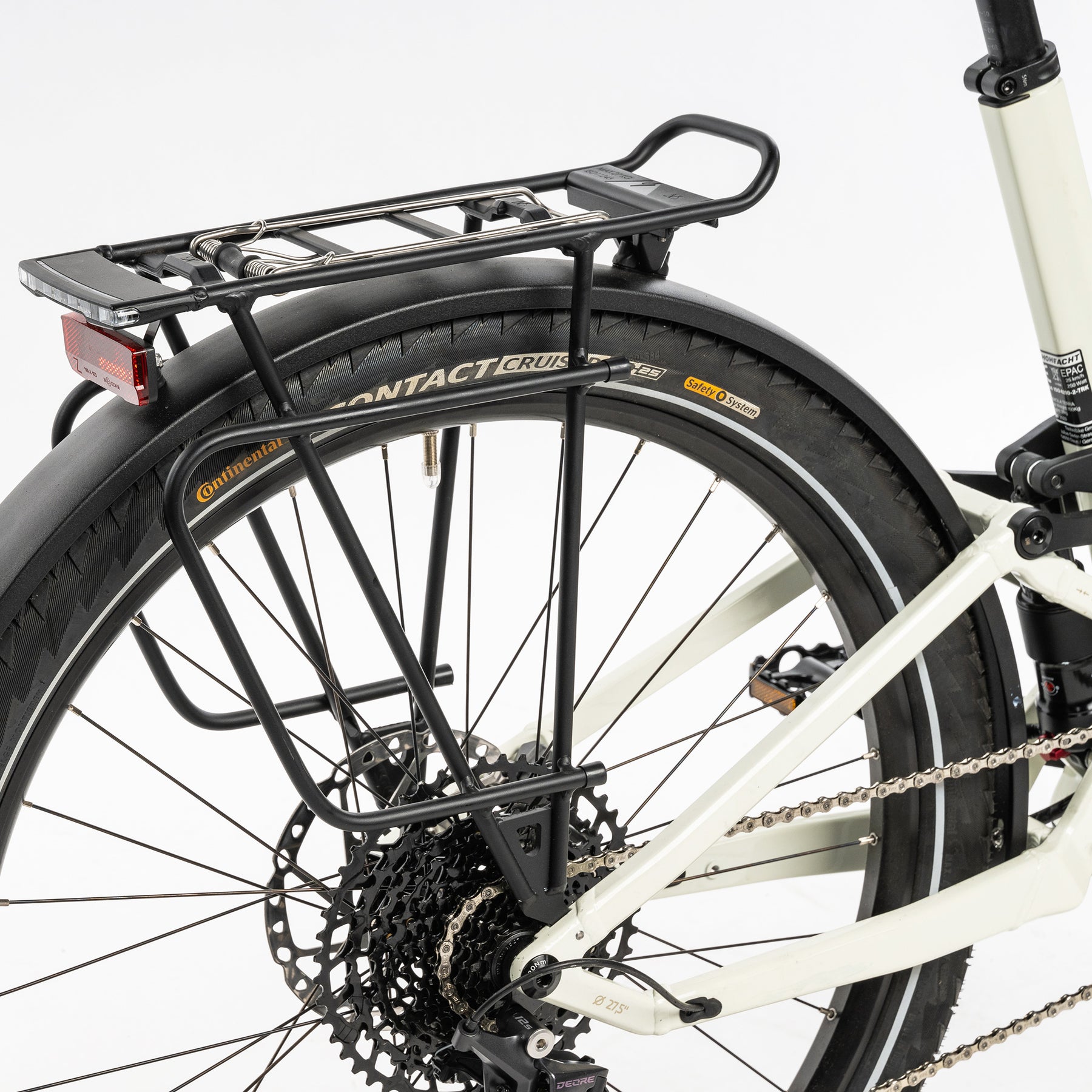

| Grips | Herrmans, LINE, 125 mm | Rack | AtranVelo, Tour 365 BS H-Cargo, 27 kg payload |
| Headset | ACROS, zs56, zs66, industrial bearings, integrated cable routing | Front light | Herrmans, H-BLACK MR8 E-BIKE 6-12 V, LED, 3.3 W, 180 lm, reflector |

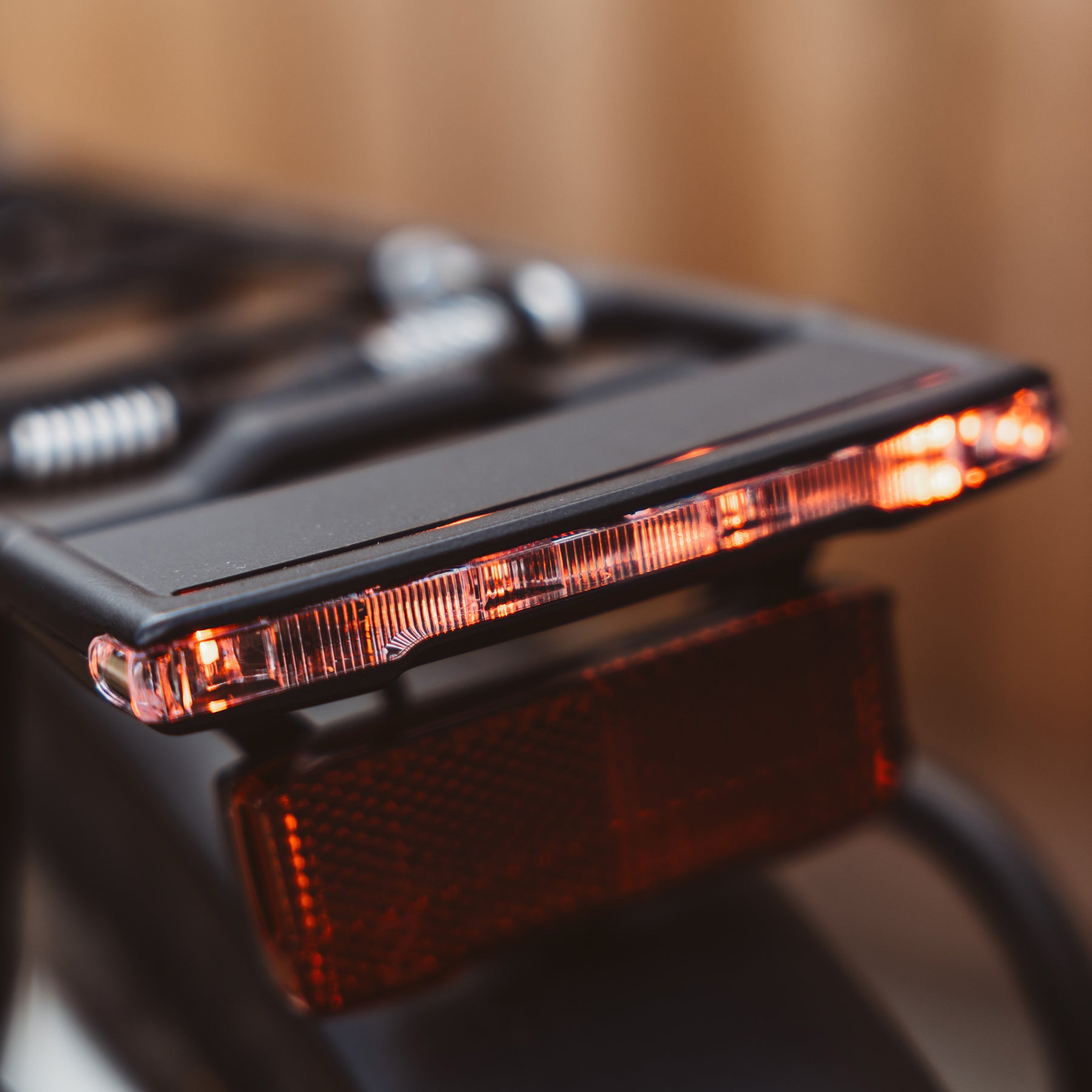

| Rim | Mach1, Trucky 30, 27,5'', aluminum, black | Rear light | Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector |
| Wheel size | 27,5 inch | Mudguard |
ChingChern, aluminum, powder-coated |
| Tyres | Continental CONTACT Plus 27,5" x 2,5" (62-584), Reflex | Battery lock | ABUS, BLO SHI IT2 XPLUS |
| Front wheel hub | Formula, CL-811, Disc, 15 x 110 mm, industrial bearings, Boost | Side stand | Ursus, R81 Wave, KSA 40 mm, rear |
| Rear wheel hub | Formula, ECT-148S, Disc, 12 x 148 mm, industrial bearings, Boost | Pedals | Marwi, SP-828 Black SBL, aluminum with PP |
Sprocket |
SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth | Motor | Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor |
| Chain | YBN, S12e S2 | Battery | Shimano Steps, BT-EN806, 630 Wh, integrated |

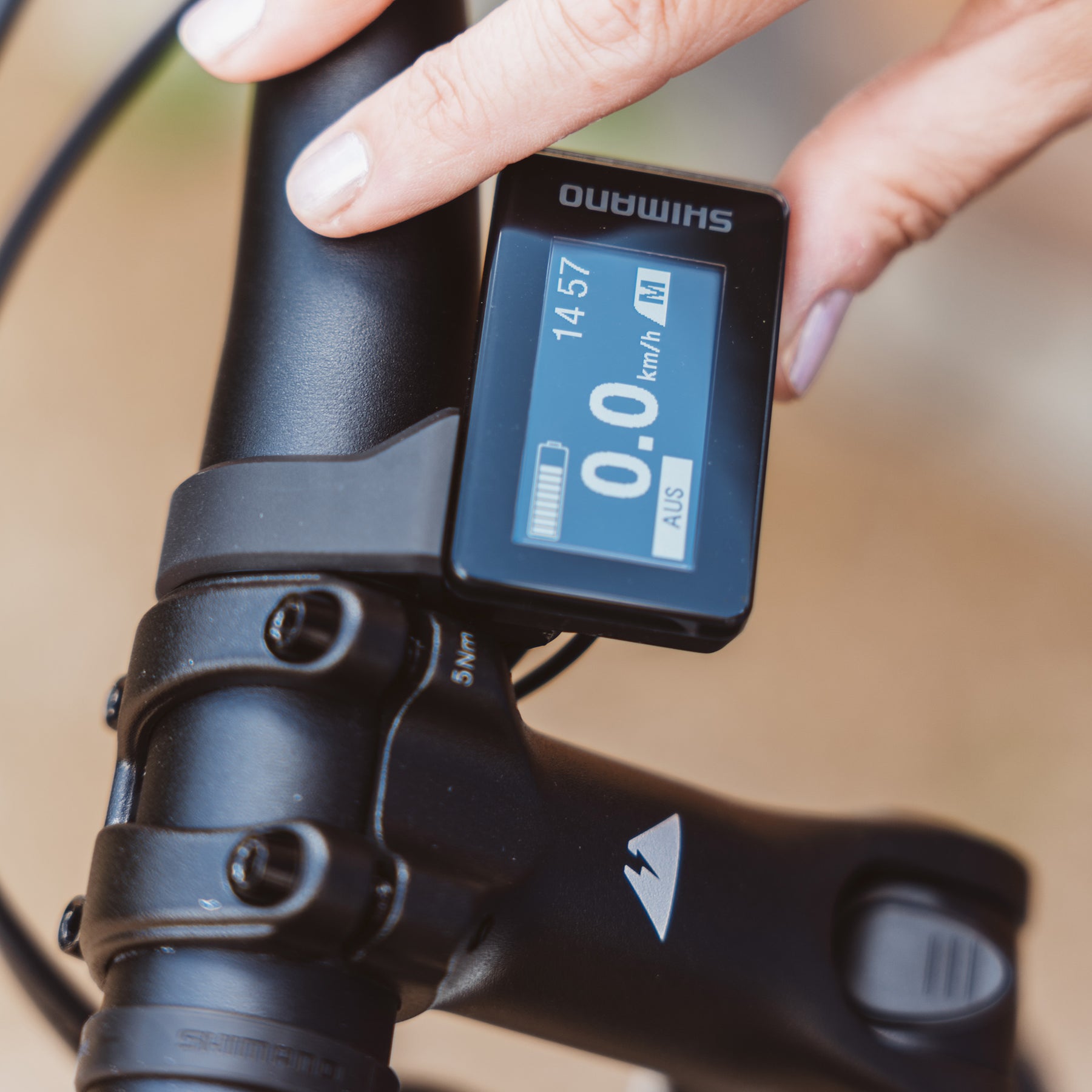

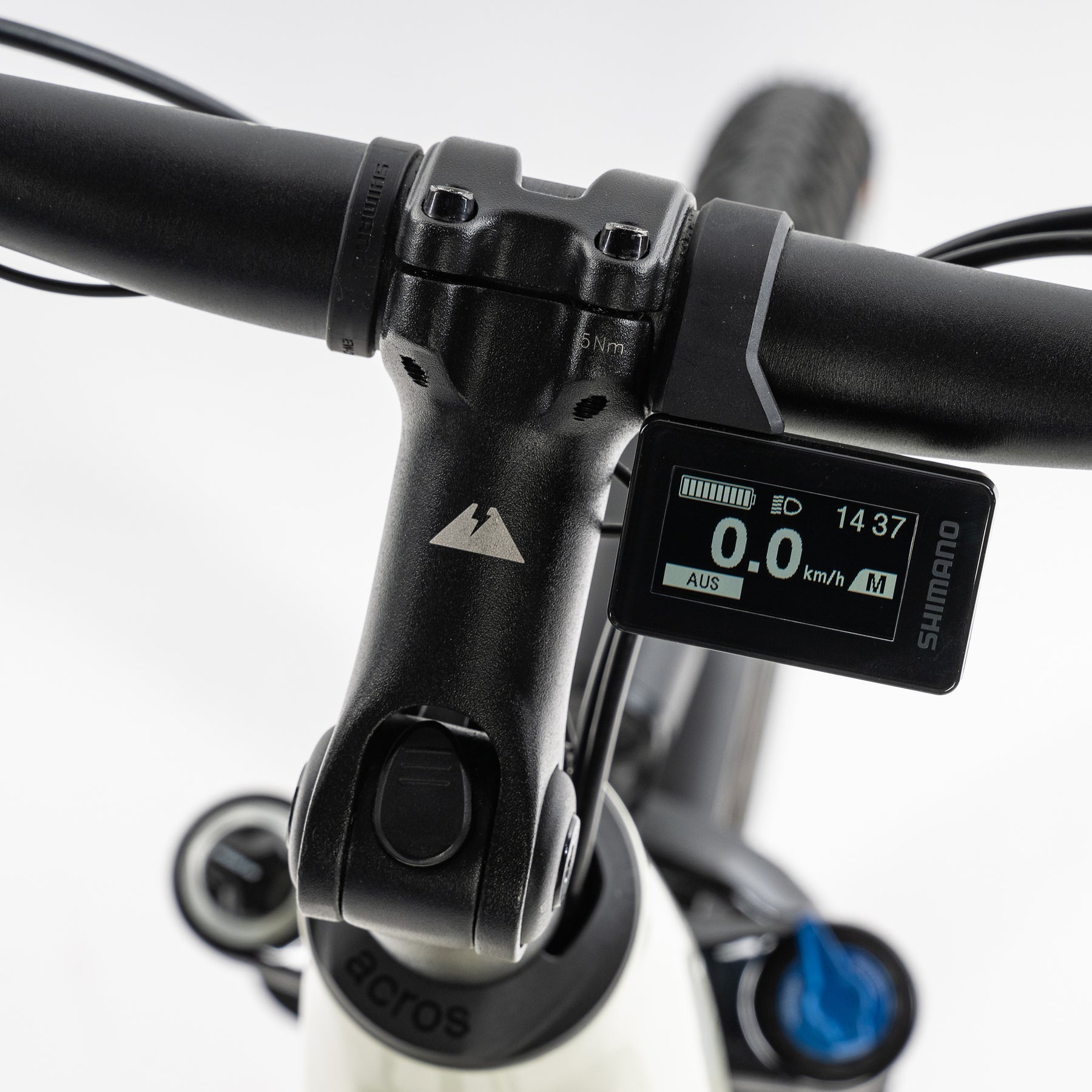

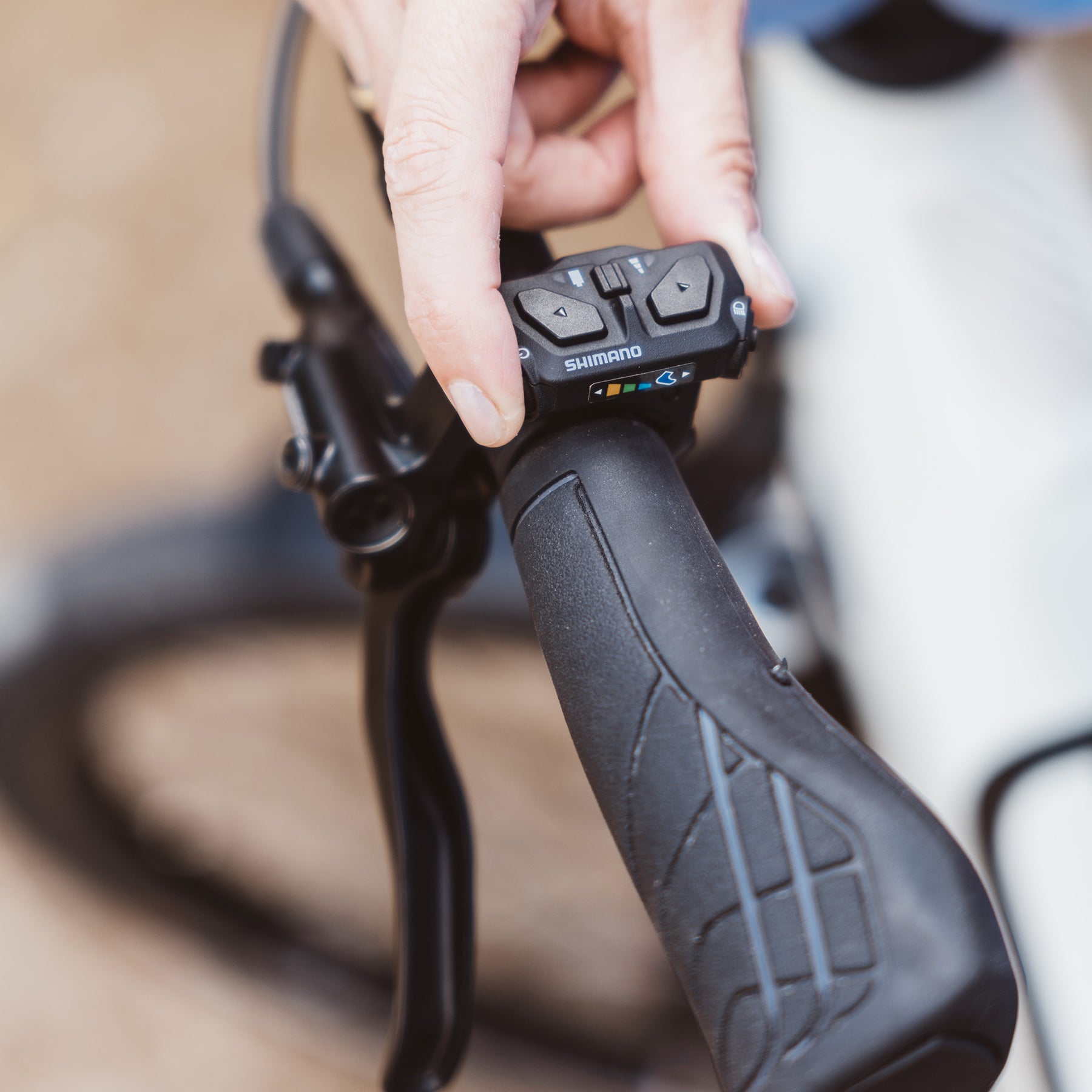

| Crankset | Chainring Miranda, CF3D, 36 teeth + spider + chain guard | Display | Shimano Steps, SC-EN600, Bluetooth, ANT Private |
| Crank arm set Shimano Steps, FC-EM600, 170 mm | Charger | Shimano Steps, EC-E8004, 4 A | |
| Derailleur | Shimano, Deore, RD-M6100, 12-speed derailleur, freewheel | ||
| Shift lever | Shimano, Deore, SL-M6100, 12- speed |
Weight | From 28,5 kg |
| Front brake | Shimano, VR BR-MT420, Vierkolben | Max. permissible weight | 160 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
Frame size (cm) |
42 |
48 |
55 |
Seat tube (mm) |
420 |
480 |
550 |
Top tube horizontal (mm) |
600 |
620 |
620 |
Head tube (mm) |
175 |
175 |
195 |
Wheelbase (mm) |
1210 |
1230 |
1232 |
Chainstays (mm) |
515 |
515 |
515 |
Bottom bracket height (mm) |
313,5 |
313,5 |
313,5 |
Head tube angle (°) |
69 |
69 |
69 |
Seat angle (°) |
74 |
74 |
74 |
Stack (mm) |
673 |
673 |
691 |
Reach (mm) |
407 |
427 |
422 |
Body height (cm) | 160 - 170 | 170 - 180 | 180 - 190 |
