PASIO Vilago

Regular price3.699,00 €
/
Tax included. Shipping calculated at checkout.

Color
Size

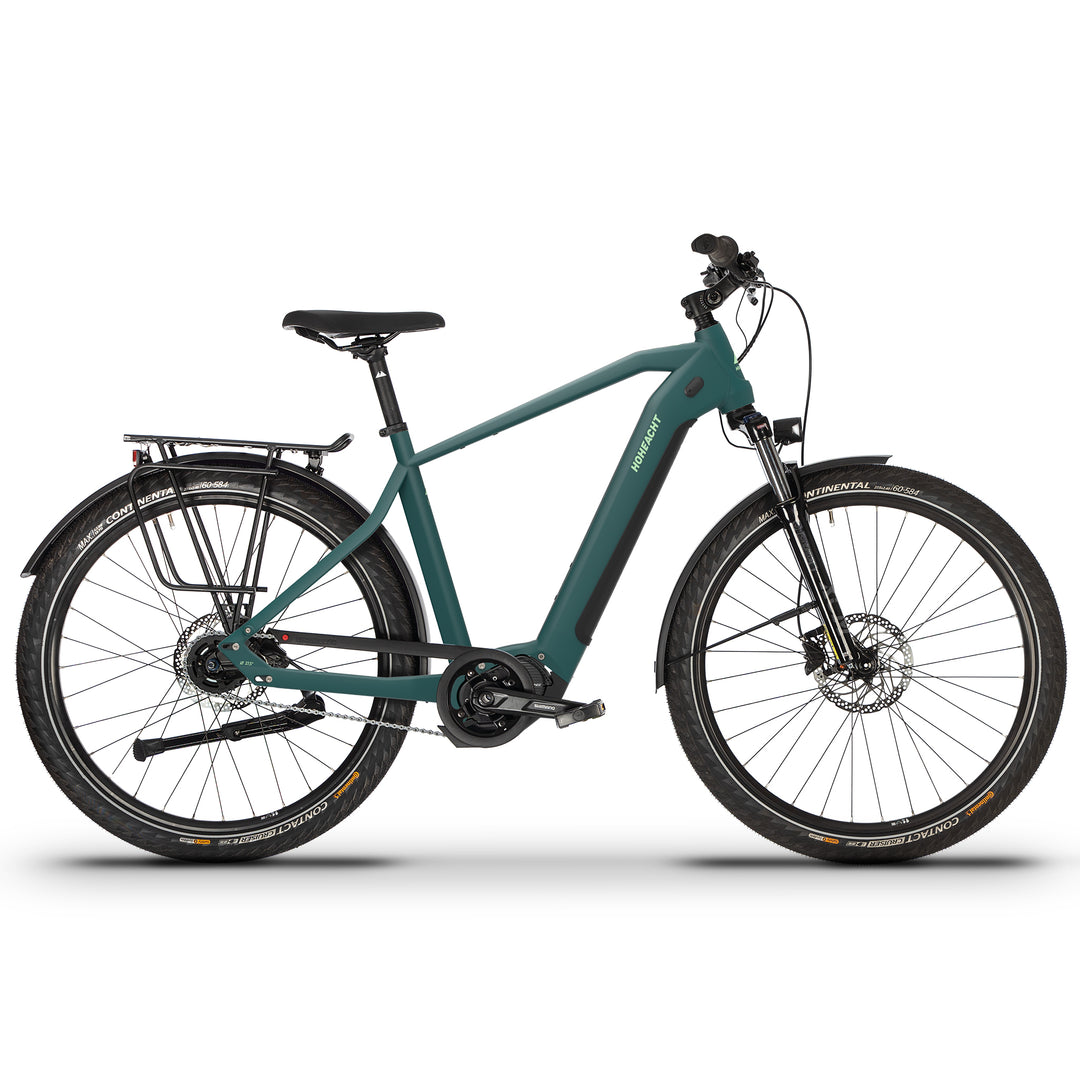

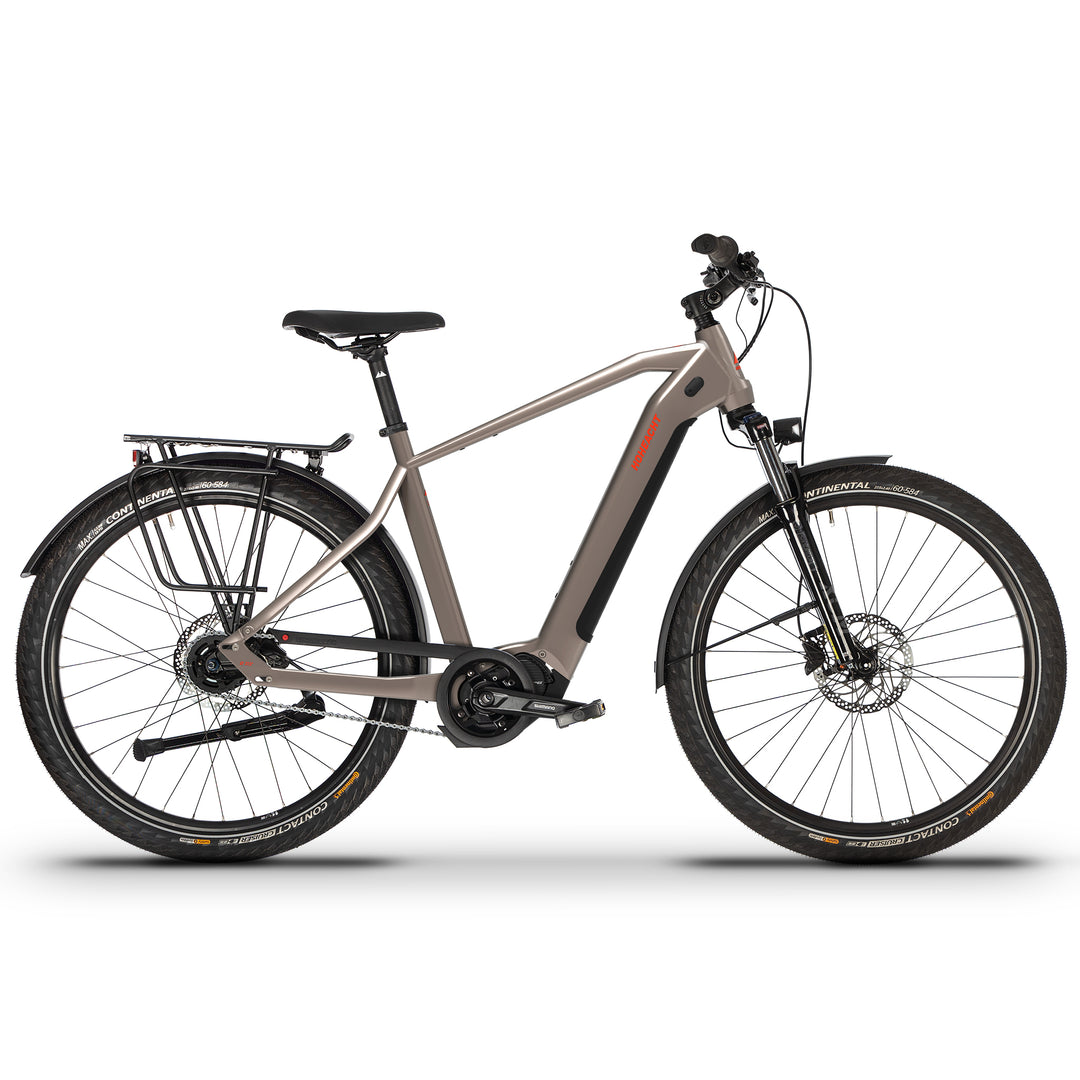

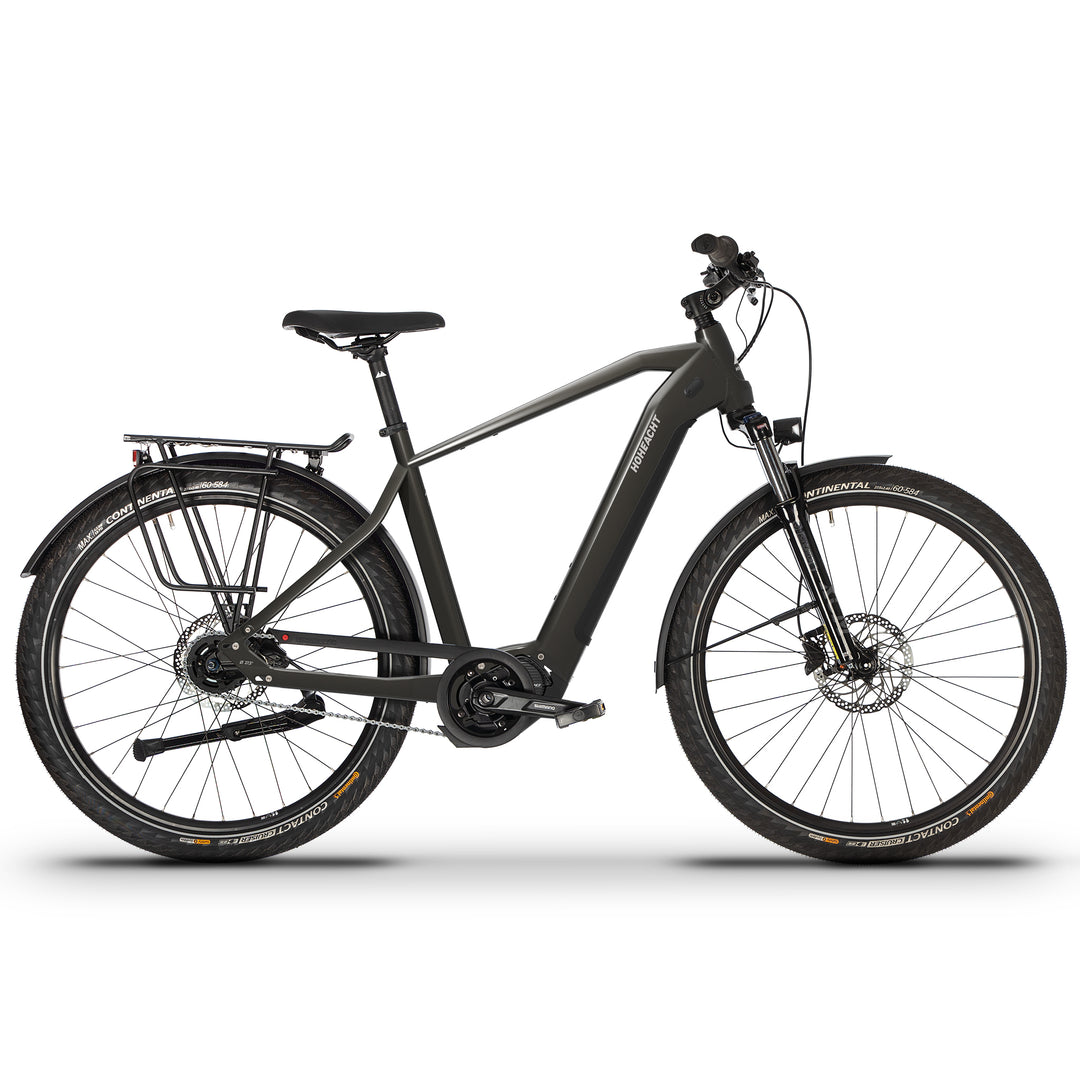

PASIO VILAGO – reliable city e-bike with a diamond frame shape

The PASIO models represent the enthusiasm for discoveries and new adventures. The PASIO Vilago is powered by a Shimano Steps EP6 motor with 85 Nm and a 504 Wh battery. All PASIO models are equipped with a diamond frame, while the PASIA models have a classic trapezoid frame. The single-sprocket drivetrain with the CS-C7000 27-tooth sprocket provides seamless and efficient power transfer, allowing effortless progress, especially on steep climbs. This technology optimizes the use of energy and makes riding much easier.

The Shimano Nexus SG-C7000 5-speed hub gear is the heart of this e-bike and enables smooth and precise shifting performance. Drivers can easily switch between gears to adapt to different terrain and speed requirements. The suspended 100 mm Suntour fork offers additional comfort, especially on longer tours.

The PASIO Vilago enables a new dimension of freedom and flexibility, regardless of whether you are commuting through the city or exploring the surrounding area. It offers reliable performance and a comfortable driving experience that allows drivers to fully enjoy their surroundings.

AREA OF USAGE

City – ideal for the city and smaller tours and excursions into the surrounding area

MOTOR

Shimano Steps, DU-EP6, 25 km/h, 85 Nm, mid-motor

Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.

SHIFTING SYSTEM

Shimano Steps, Nexus SG-C7000, 5-speed hub gear with freewheel, offers not only 5 gears, but also exceptional robustness and durability. This makes it seamlessly compatible with mid-motors.

Frame

Trapezoid/ Diamond, aluminum

Rear brake

Shimano, BR-MT200

Suspension fork

Suspension fork, SR Suntour, XCM32, 100 mm travel

Brake disc front

Shimano, SM-RT30, 180 mm, center lock

Handlebar

HoheAcht,

31.8 mm, width 640 mm, bend 34°, aluminum, black

Brake disc rear

Shimano, RT-EM300, 180 mm, center lock

Stem

HoheAcht, 31,8 mm, 95 mm, 0-60°, aluminum, black

Saddle

Selle Royal, Nuvola 5060 DRC

Grps

Herrmans, LINE, 125 mm / 90 mm

Seatpost

HoheAcht, suspension seat post, 6061 tube, 31.6 mm x 350 mm, 10 mm offset, aluminum

Headset

ACROS, zs56, zs66, industrial bearings, integrated cable routing

Rack

AtranVelo, Tour 365 BS  H-Cargo, 27 kg payload

Rim

Mach1, Trucky 30, 27.5'',

aluminum, black

Front light

Herrmans, H-BLACK MR8 E-BIKE 6-12 V, LED, 3.3 W, 180 lm, reflector

Wheel size

27.5 inch

Rear light

Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector

Tyres

Continental, CONTACT Cruiser, 27.5'' x 2.4'' (60-584), reflex


Mudguard


ChingChern, aluminum, powder-coated

Front wheel hub

Formula, CL-81, Disc, 15 x 100 mm, industrial bearings

Battery lock

ABUS, BLO SHI IT2 XPlus

Rear wheel hub

Shimano, Nexus, SG-C7000, 5-speed, freewheel, center lock

Side stand

Ursus, R81 Wave, KSA 40 mm, rear

Sprocket

Shimano Steps, Single Sprocket, CS-C7000, 27 teeth

Pedals

Marwi, SP-828 Black SBL, aluminum with PP

Chain

Kette KMC, Z1eHX Narrow EPT

Motor

Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor

Crankset

Chainring Shimano Steps, SM-CRE70, 38 teeth, steel/aluminum

Battery

Shimano Steps, BT-EN805-L, 504 Wh, integrated

Crank arm set Shimano Steps, FC-EM600, 170 mm

Display

Shimano Steps, SC-EN600, Bluetooth, ANT private

Derailleur

Shimano Steps, Nexus SG-C7000, 5-speed hub gear, freewheel

Charger

Shimano Steps, EC-E6002, 2 A

Shift lever

Shimano, Nexus, SL-C7000, 5 speed

Weight

From 26,6 kg

Front brake

Shimano, BR-MT200

Max. permissible weight

150 kg



General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.

Frame size (cm) 46 50 54 58
Seat tube (mm) 460 500 540 580
Top tube horizontal (mm) 605 620 640 660
Head tube (mm) 150 150 150 150
Wheelbase (mm) 1181,7 1196,7 1196,7 1212,7
Chainstays (mm) 475 475 475 475
Bottom bracket height (mm) 295 295 295 295
Head tube angle (°) 68 68 69 69
Seat angle (°) 74,5 74,5 73,5 73,5
Stack (mm) 650 650 650 650
Reach (mm) 425 440 447 467
Body height (cm)
162 - 170
170 - 180
180 - 190
190 - 200
