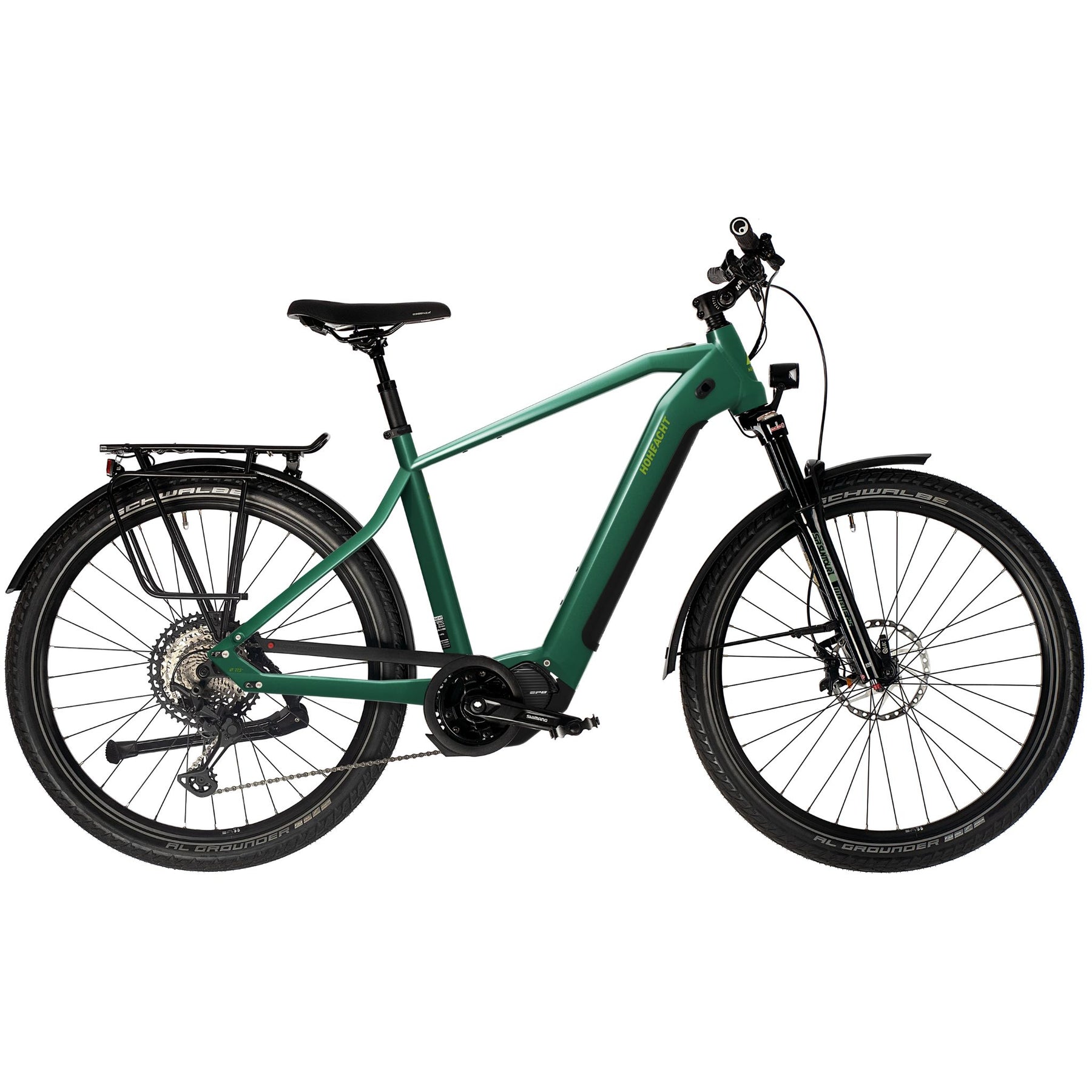

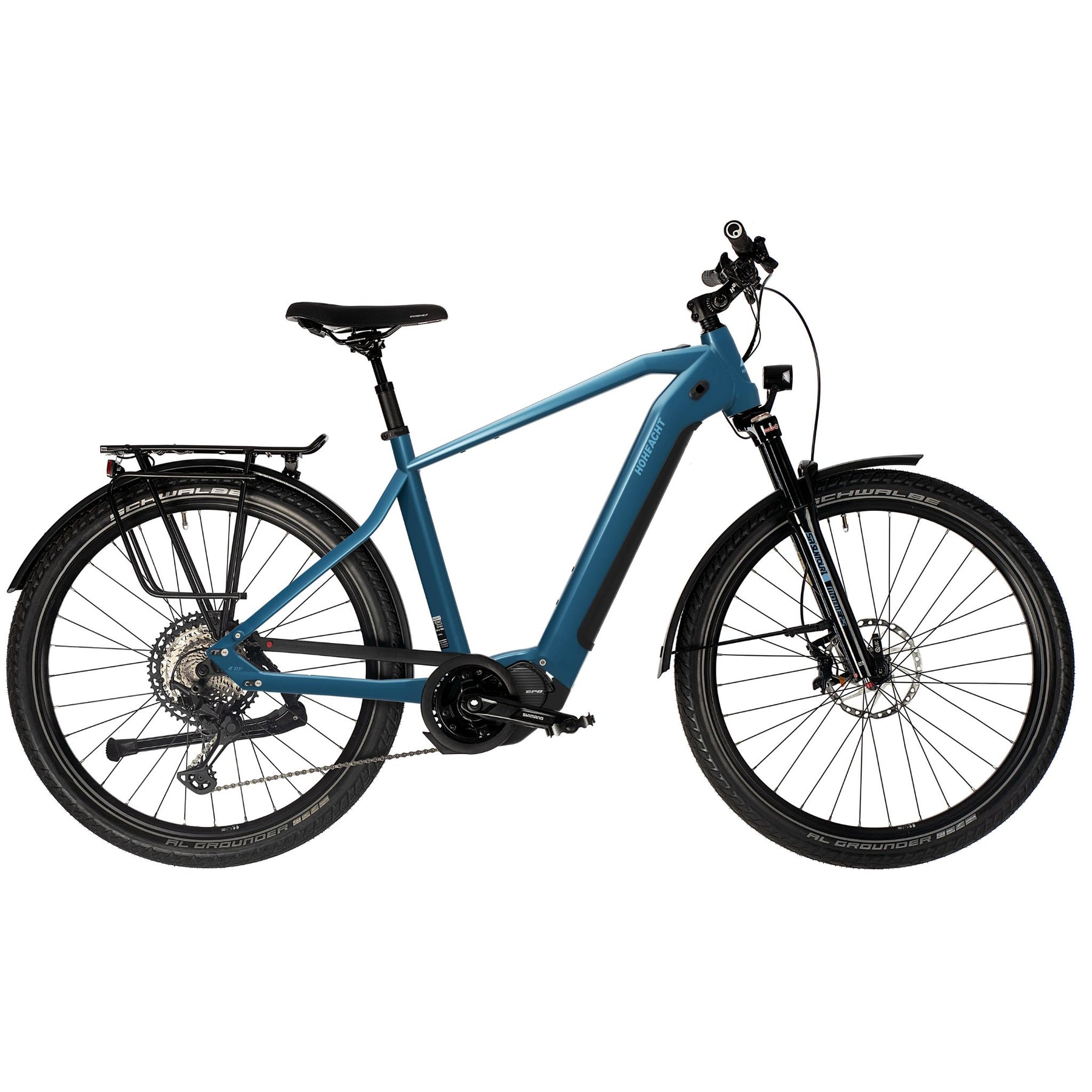

PASIO Tereno | 2022

Rear brake

Shimano, BR-M7100, hydraulic disc brake

Frame

Aluminum SUV Intube, Diamond

Brake disc front

Shimano, SM-RT64, 180 mm, Centerlock

Suspension fork

SR Suntour MOBIE25-AIR, 100 mm travel

Brake disc rear

Shimano, RT-EM600, 180 mm, Centerlock

Handlebar

HoheAcht, 31.8 mm, width 640 mm, bend 25°, rise 25 mm, aluminum, black

Saddle

Selle Royal, Essenza Plus

Stem

HoheAcht, 31.8 mm, 95 mm, 0-60°, aluminum, black

Seatpost

HoheAcht, suspension seat post, 6061 tube, 31.6 mm x 350 mm, 10 mm offset, aluminum

Grips

Ergon, GE10 Evo, 135 mm

Rack

AtranVelo, Tour 365 BS H-Cargo, 27 kg payload

Headset

ACROS, zs44, zs56, industrial bearings, Stem Cap Angle SP-Connect

Front light

Herrmans, H-Black MR8 E-Bike 6-12 V, LED, 3.3 W, 180 lm, reflector

Rim

Mach1 Trucky 30, 27.5",  aluminum, black

Rear light

Herrmans, H-Cargo E-Bike 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector

Tyres

Schwalbe, Al Grounder, 27.5'' x 2.35'' (60-584), Reflex

Mudguard

SKS, PET wheel protector, A69R, 28 inches

Front wheel hub

Formula, CL-81, Disc, 15 x 100 mm, industrial bearing

Side stand

AtranVelo, Rex HV, KSA 40

Rear wheel hub

Formula, CL-148S, Disc, 12 x 148 mm, industrial bearings, Boost

Pedals

Marwi, SP-160 BL, aluminum

Sprocket

SRAM, Eagle, CS-PG-1210, 12-speed, 11-50 teeth

Motor

Shimano Steps, DU-EP8, 25 km/h, 85 Nm, mid-motor

Chainring

Chainring Shimano Steps, SM-CRE80, 36 teeth, steel/aluminium

Battery

Shimano Steps, BT-E8036, 630 Wh, integrated

Chain

SRAM, SX Eagle 12 S

Display

Shimano Steps, SC-E7000, Bluetooth, ANT Private

Crankset

Crank arm set Shimano Steps, FC-EM600, 170 mm

Battery lock

ABUS, BLO SHI IT2 Xplus

Derailleur

Shimano, SLX, RD-M7100, 12-speed

Charger

Shimano Steps, EC-E6002, 2 A

Shift lever

Shimano, SLX,  SL-M7100, 12-speed

Weight

From 24.1 kg

Front brake

Shimano, BR-M7120, four-piston, hydraulic disc brake

Max. permissible weight

130kg
