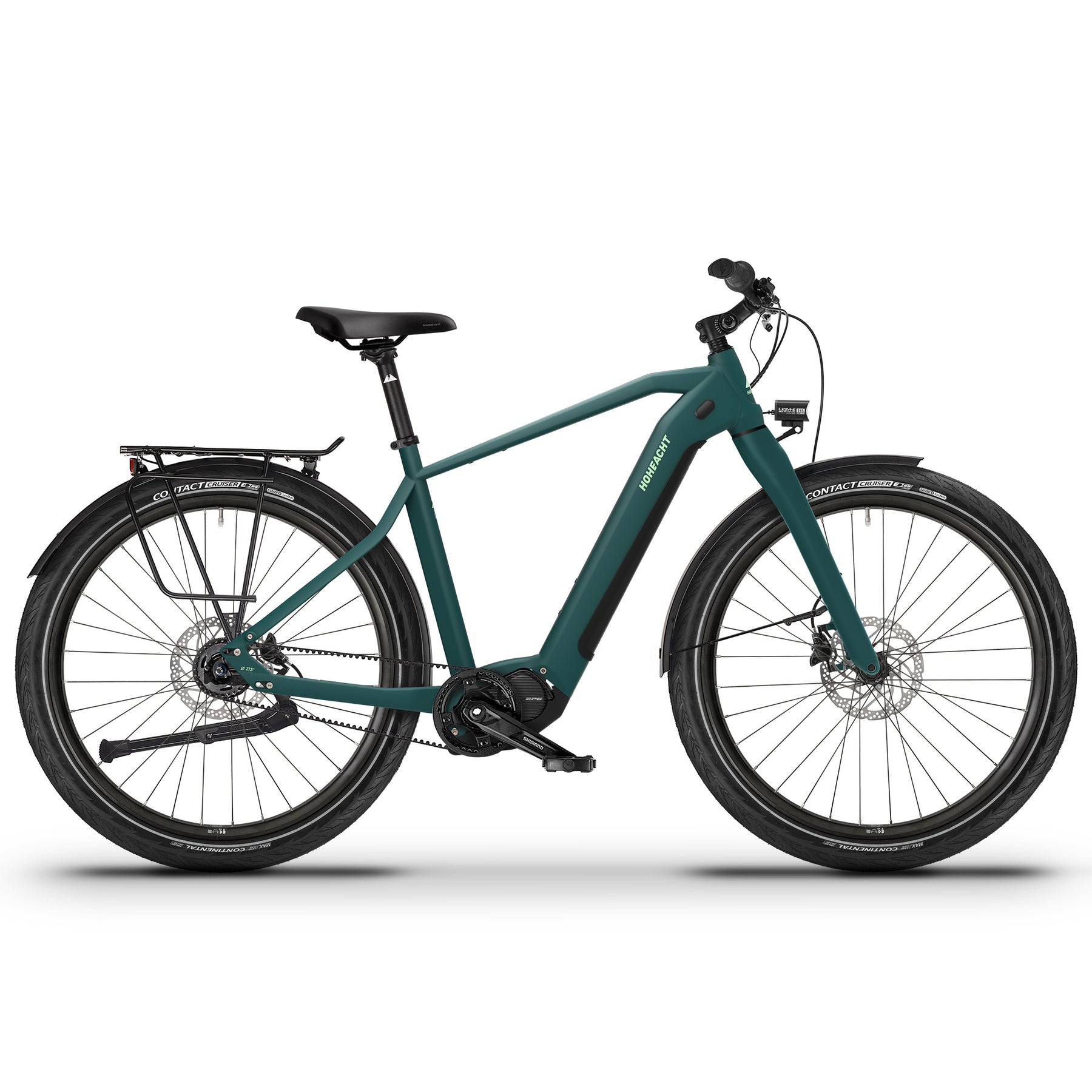

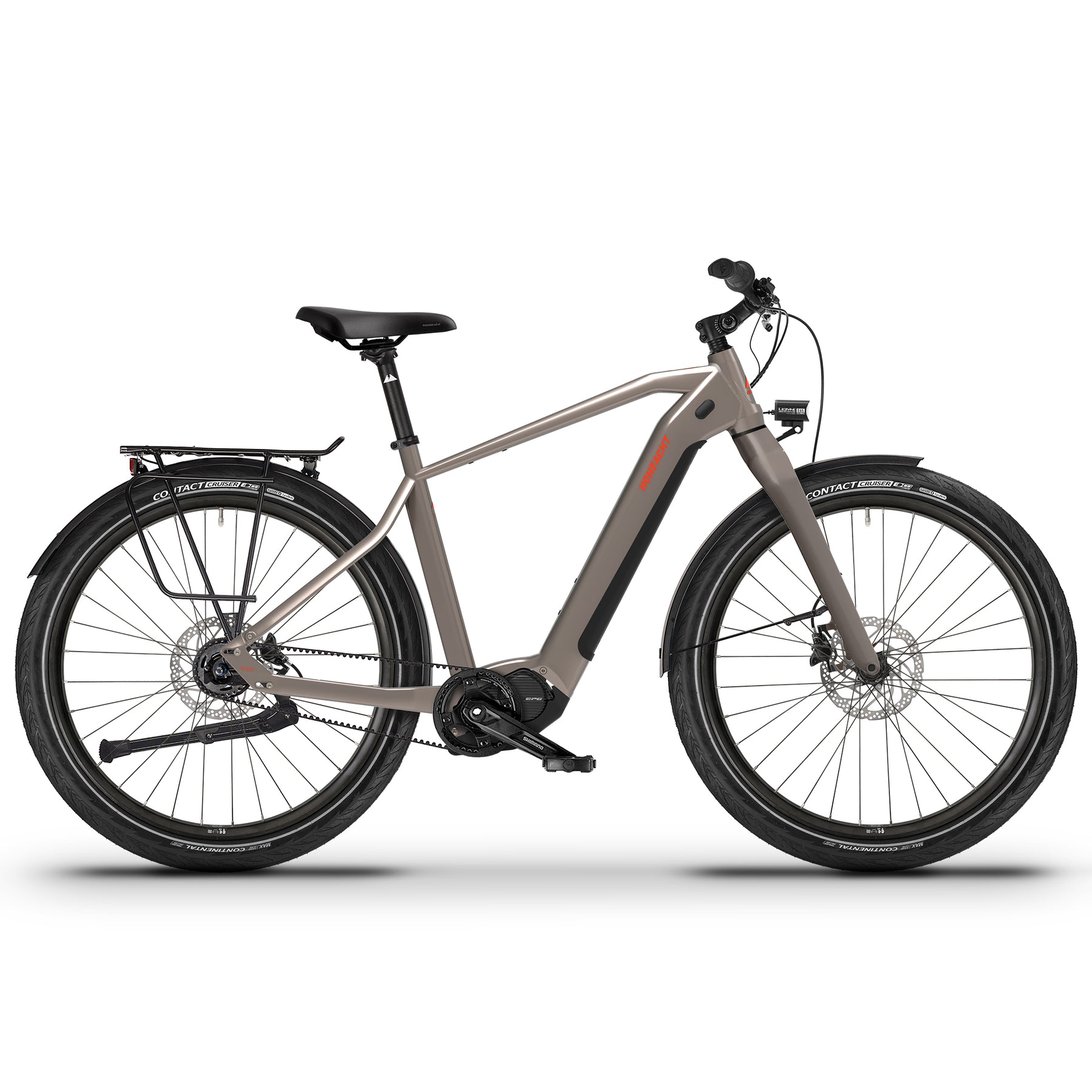

PASIO Strato – City E-Bike for pure pleasure
Discover new horizons with the PASIO Strato City E-Bike with a diamond frame and rigid fork. In comparison to the PASIO models, the PASIA models a trapezoid frame.
The powerful Shimano EP6 mid-motor with 85 Nm and the integrated 630 Wh battery will inspire you with a lot of power on your way. The rigid fork gives your city e-bike additional lightness and maneuverability. And with the reliable Nexus 5-speed hub gear with freewheel and the maintenance-free Gates toothed belt drive, you ride incredibly smoothly and comfortably. No matter whether you are traveling in the city, in an urban area or on forest paths, this bike ensures variety!
AREA OF USAGE
City | Commuting – ideal for the city and longer tours and excursions into the surrounding area, on cycle paths or forest paths.
MOTOR
Shimano Steps, DU-EP6, 25 km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.
SHIFTING SYSTEM
Shimano Steps, Nexus SG-C7000, 5-speed hub gear with freewheel, offers not only 5 gears, but also exceptional robustness and durability. This makes it seamlessly compatible with mid-motors.
Frame |
Trapezoid/ Diamond, aluminum |
Rear brake |
Shimano, BR-MT200 |
Rigid fork |
Rigid fork, HoheAcht, fork alu rigid fork |
Brake disc front |
Shimano, SM-RT30, 180 mm, center lock |
Handlebar |
HoheAcht, 31.8 mm, width 720 mm, bend 9°, rise 15 mm, aluminum, black |
Brake disc rear |
Shimano, RT-EM300, 180 mm, center lock |
Stem |
HoheAcht, 31.8 mm, 95 mm, 0-60°, aluminum, black |
Saddle |
Selle Royal, Essenza Plus, Female/male |
Grips |
Herrmans, LINE, 125 mm / 90 mm |
Seatpost |
HoheAcht, Seatpost 2D, 31,6 mm x 350 mm, 10 mm offset, aluminum |
Headset |
ACROS, zs44, zs56, industrial bearings |
Rack |
AtranVelo, Tour 365 BS H-Cargo, 27 kg payload |
Rim |
Mach1, Trucky 30, 27,5'', aluminum, black |
Front light |
Lezyne, E-Bike Hecto StVZO E65, 6-12 V, LED, 4 W, 210 lm |
Wheel size |
27,5 inch |
Rear light |
Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector |
Tyres |
Continental, CONTACT Cruiser, 27.5'' x 2.4'' (60-584), reflex |
Mudguard |
ChingChern, aluminum, powder-coated |
Front wheel hub |
Formula, CL-811, Disc, 15 x 110 mm, industrial bearings, Boost |
Battery lock |
ABUS, BLO SHI IT2 XPLUS |
Rear wheel hub |
Shimano, Nexus, SG-C7000, 5-speed, freewheel, center lock |
Side stand |
Ursus, R81 Wave, KSA 40 mm, rear |
Sprocket |
Gates, CDX pulley, 28 teeth |
Pedals |
Marwi, SP-828 black SBL, aluminium with PP |
Drive belt |
Gates, 120T CDX, blue |
Motor |
Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor |
Crankset |
Chainring Gates, 39T CDX + Spider + trouser guard ring, aluminum |
Battery |
Shimano Steps, BT-EN806, 630 Wh, integrated |
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Display |
Shimano Steps, SC-EN600, Bluetooth, ANT private |
|
Derailleur |
Shimano Steps, Nexus SG-C7000, 5-speed hub gear, freewheel |
Charger |
Shimano Steps, EC-E8004, 42 V DC, 4 A |
Shift lever |
Shimano, Nexus, SL-C7000, 5 speed |
Weight |
From 25,0 kg |
Front brake |
Shimano, BR-MT200 |
Max. permissible weight |
150 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
| Frame size (cm) | 46 | 50 | 54 | 58 |
| Seat tube (mm) | 460 | 500 | 540 | 580 |
| Top tube horizontal (mm) | 605 | 620 | 640 | 660 |
| Head tube (mm) | 150 | 150 | 150 | 150 |
| Wheelbase (mm) | 1181,7 | 1196,7 | 1196,7 | 1212,7 |
| Chainstays (mm) | 475 | 475 | 475 | 475 |
| Bottom bracket height (mm) | 295 | 295 | 295 | 295 |
| Head tube angle (°) | 68 | 68 | 69 | 69 |
| Seat angle (°) | 74,5 | 74,5 | 73,5 | 73,5 |
| Stack (mm) | 650 | 650 | 650 | 650 |
| Reach (mm) | 425 | 440 | 447 | 467 |
| Body height (cm) | 162 - 170 | 170 - 180 | 180 - 190 | 190 - 200 |
