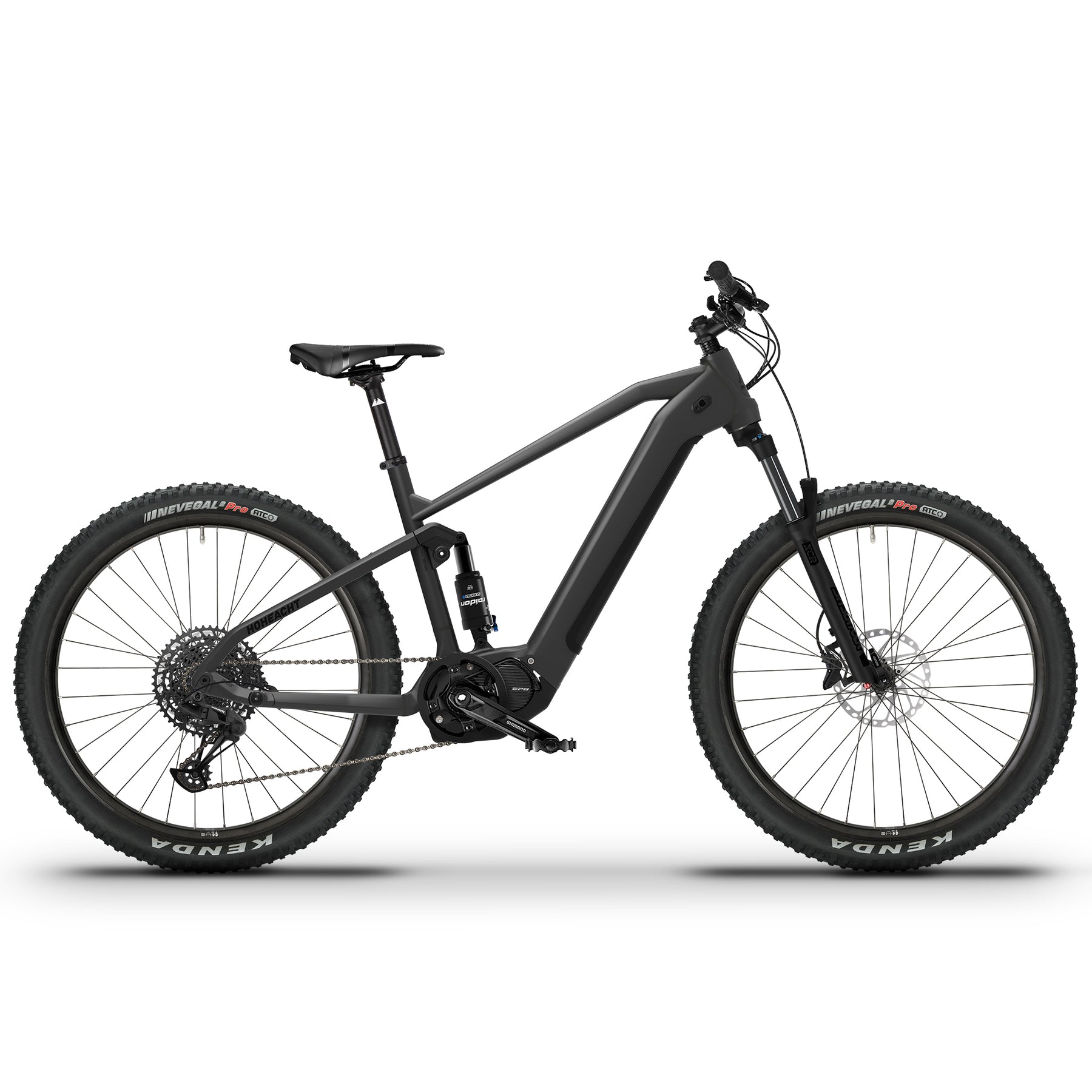

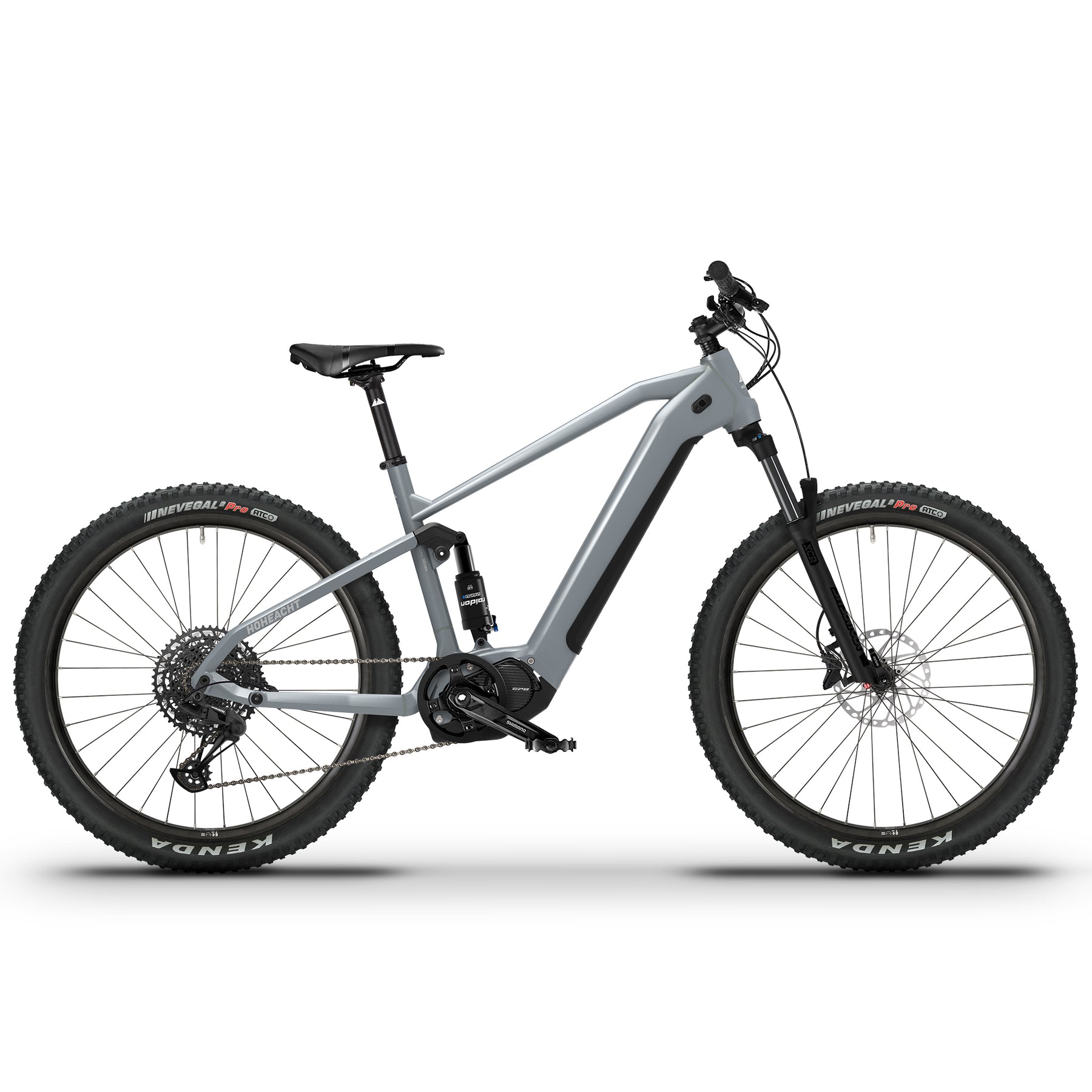

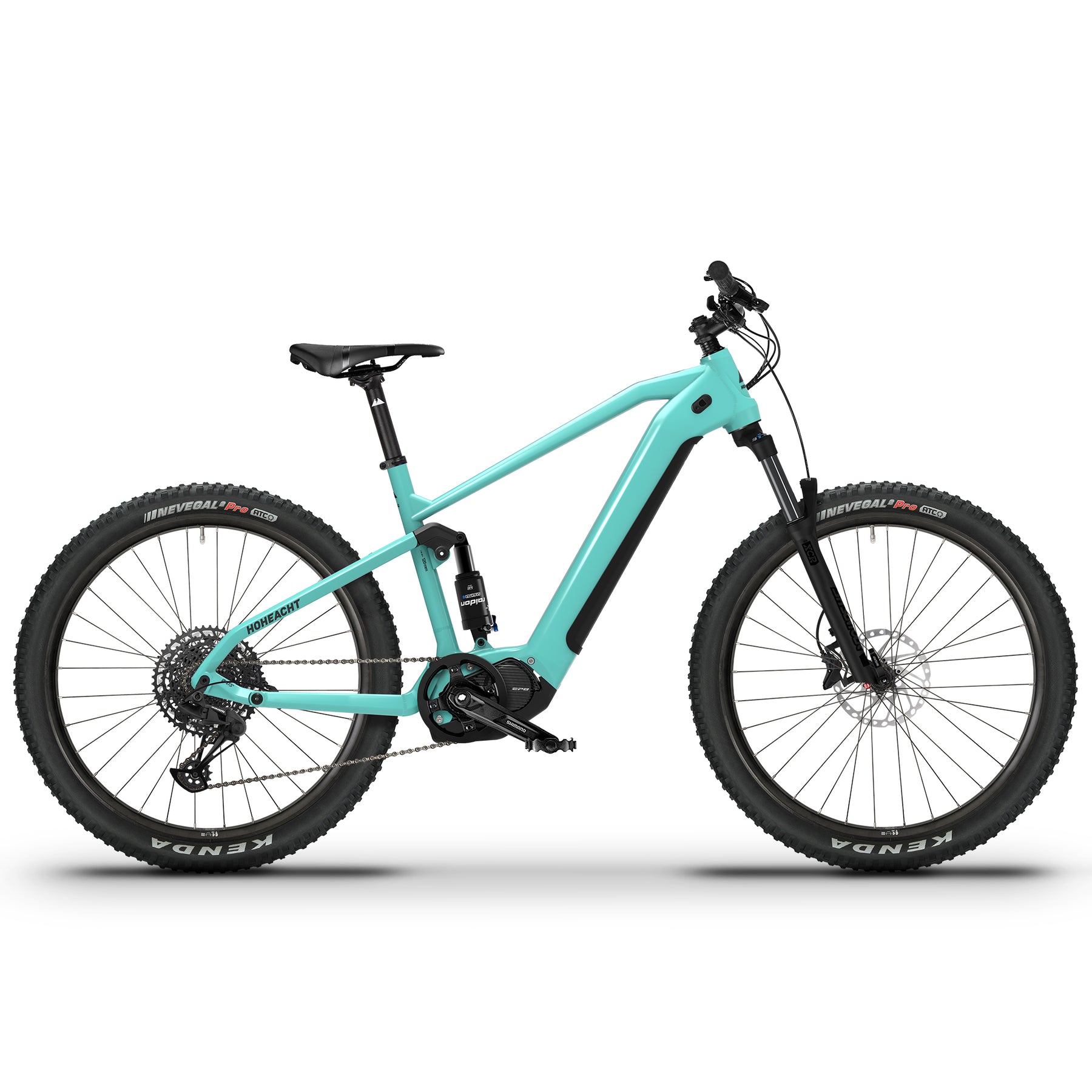

MOLA Roko – High-quality fully for every terrain
The MOLA Roko is a high-quality full-suspension e-mountain bike that is suitable for every type of terrain. It offers first-class equipment for all mountain bike fans.
The SRSuntour, RS20 Raidon Air LO Metric suspension fork with 120 mm suspension travel ensures that almost all bumps on your ride are compensated for. Even rough steps and small jumps can be mastered with ease. The fully is equipped with Mach1, Trucky 30 27.5-inch rims.
An 11-50 sprocket package with the SRAM SX EAGLE rear derailleur offers optimal gearing for steep climbs and demanding terrain. The e-bike is great fun both uphill and downhill.
Discover new horizons with the MOLA Roko!
AREA OF USAGE
Trail | All Mountain
MOTOR
Shimano Steps, DU-EP6, 25 km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for demanding MTB adventures.
SHIFTING SYSTEM
The SX Eagle rear derailleur from SRAM is specially designed for 12-speed gears and has a robust steel housing. The Cage Lock™ feature allows for quick removal and attachment of the rear wheel when necessary and also makes installing the chain easier. Thanks to the X-Sync™ tooth design and the X-Horizon™ cage shape, optimal chain hold is ensured and precise shifting is possible.
Frame |
Fullsuspension, aluminum |
Front brake |
Shimano, BR-MT420, four-piston |
Suspension fork |
SR Suntour, RS20 Raidon Air LO Metric, 120 mm travel |
Rear brake |
Shimano, BR-MT410 |
Shock |
SR Suntour, Raidon LO Metric, 120 mm travel |
Brake disc front |
Shimano, SM-RT64, 180 mm, center lock |
Handlebar |
HoheAcht, 31.8 mm, width 720 mm, bend 9°, rise 15 mm, aluminum, black |
Brake disc rear |
Shimano, RT-EM300, 180 mm, center lock |
Stem |
HoheAcht, 60 mm, ±7°, aluminum, black |
Saddle |
Prologo, Proxim W350 |
Grips |
Herrmans, Rib, 130 mm |
Seatpost |
HoheAcht, Seatpost 2D, 31.6 mm x 350 mm, 10 mm offset, aluminum |
Headset |
ACROS, zs44, zs56, industrial bearings |
Front light |
Sate-lite lighting set LF-12, Li-ion battery, max. 50 LUX + Messingschlager reflector set |
Rim |
Mach1, Trucky 30, 27,5'', aluminum, black |
Rear light |
Sate-lite lighting set LR-03K, 200mAh LIR2050 battery, 220° visibility |
Wheel size |
27,5 inch |
Battery lock |
ABUS, BLO SHI IT2 XPLUS |
Tyres |
Kenda, Nevegal 2 K1211, 27.5'' x 2.4'' (60-584), TLR |
Pedals |
Marwi, SP-160 BL, aluminum |
Front wheel hub |
Formula, CL-811, Disc, 15 x 110 mm, industrial bearings, Boost |
Motor |
Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor |
Rear wheel hub |
Formula, ECT-148S, Disc, 12 x 148 mm, industrial bearings, Boost |
Battery |
Shimano Steps, BT-EN806, 630 Wh, integrated |
Sprocket |
SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth |
Display |
Shimano Steps, SC-EN600, Bluetooth, ANT private |
Chain |
YBN, S12e S2 |
Charger |
Shimano Steps, EC-E8004, 42 V DC, 4 A |
Crankset |
Chainring Shimano Steps, SM-CRE80, 36 teeth, steel/aluminum |
||
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Weight |
From 24,1 kg |
|
Derailleur |
SRAM, SX Eagle, RD-SX-1-B1, 12-speed derailleur |
Max. permissible weight |
130 kg |
Shift lever |
SRAM, SX Eagle, TRIGGER, SL-SX1-PA-A1, 12-speed |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
| Frame size (cm) | 42 | 46 | 50 |
| Seat tube (mm) | 420 | 460 | 500 |
| Top tube horizontal (mm) | 600 | 640 | 660 |
| Head tube (mm) | 150 | 150 | 150 |
| Wheelbase (mm) | 1177 | 1196 | 1237 |
| Chainstays (mm) | 460 | 460 | 460 |
| Bottom bracket height (mm) | 330 | 330 | 330 |
| Head tube angle (°) | 67 | 67 | 67 |
| Seat angle (°) | 74 | 74 | 74 |
| Stack (mm) | 620 | 620 | 620 |
| Reach (mm) | 422 | 462 | 482 |
| Body height (cm) | 160 - 170 | 170 - 180 | 180 - 195 |
