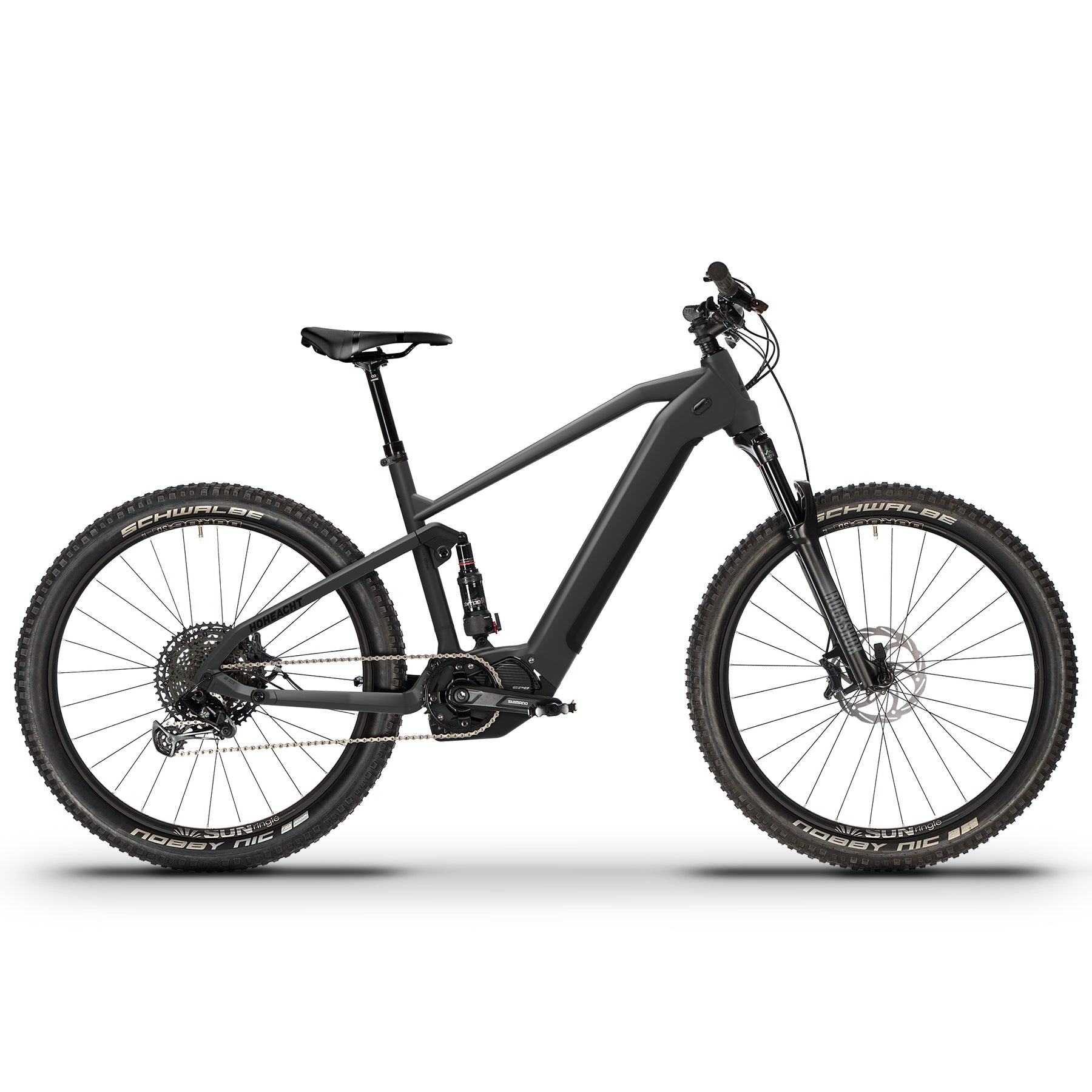

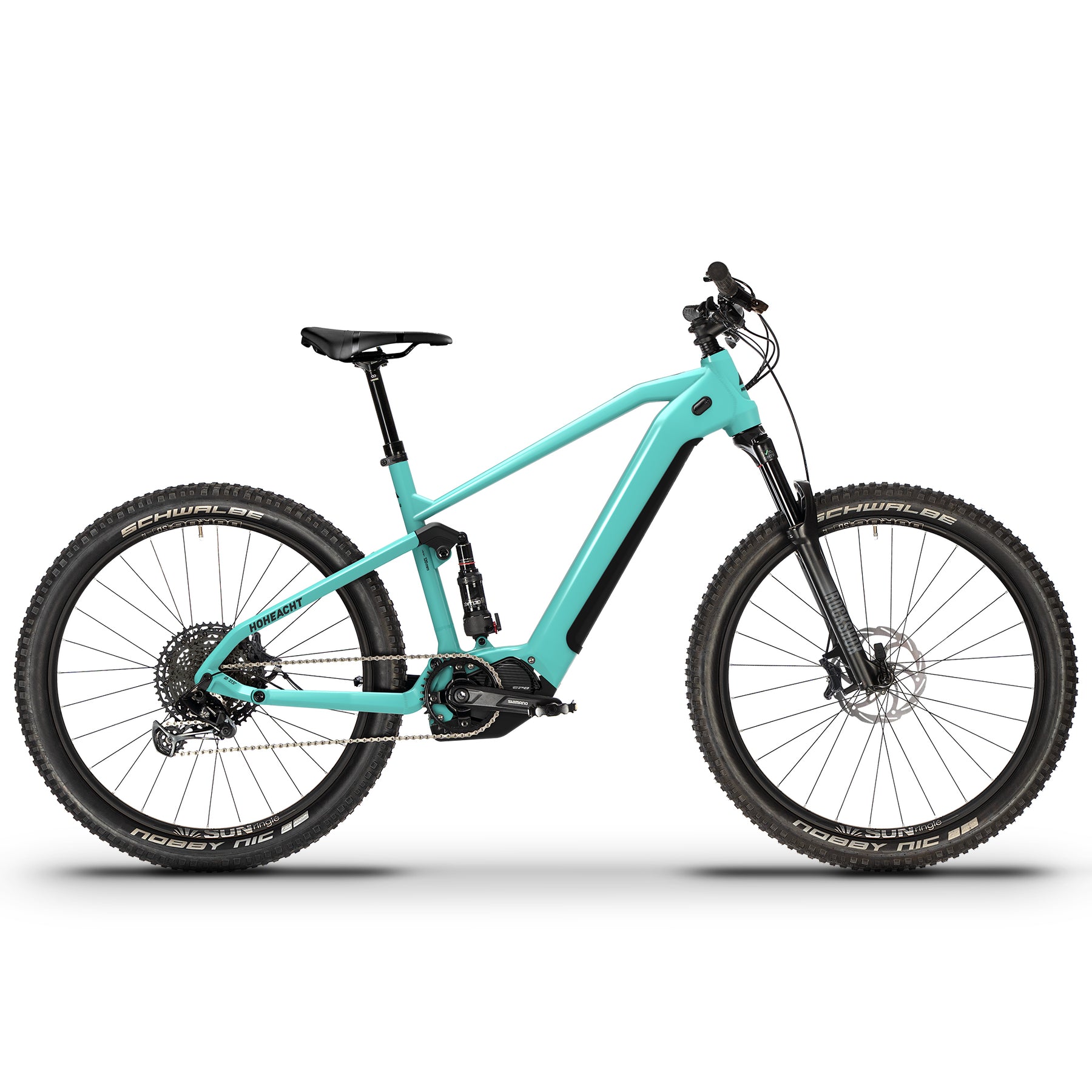

MOLA Monto – E-fully with a class of its own
The HoheAcht MOLA Monto is our E-MTB with a class of its own. The touring fully combines a lot of riding fun with excellent equipment for every mountain bike fan. The chassis, consisting of the RockShox 35 Silver TK fork and the RockShox Deluxe Select+ shock, each with 120 mm of travel, irons out almost all unevenness. Even coarser steps and small jumps can be mastered.

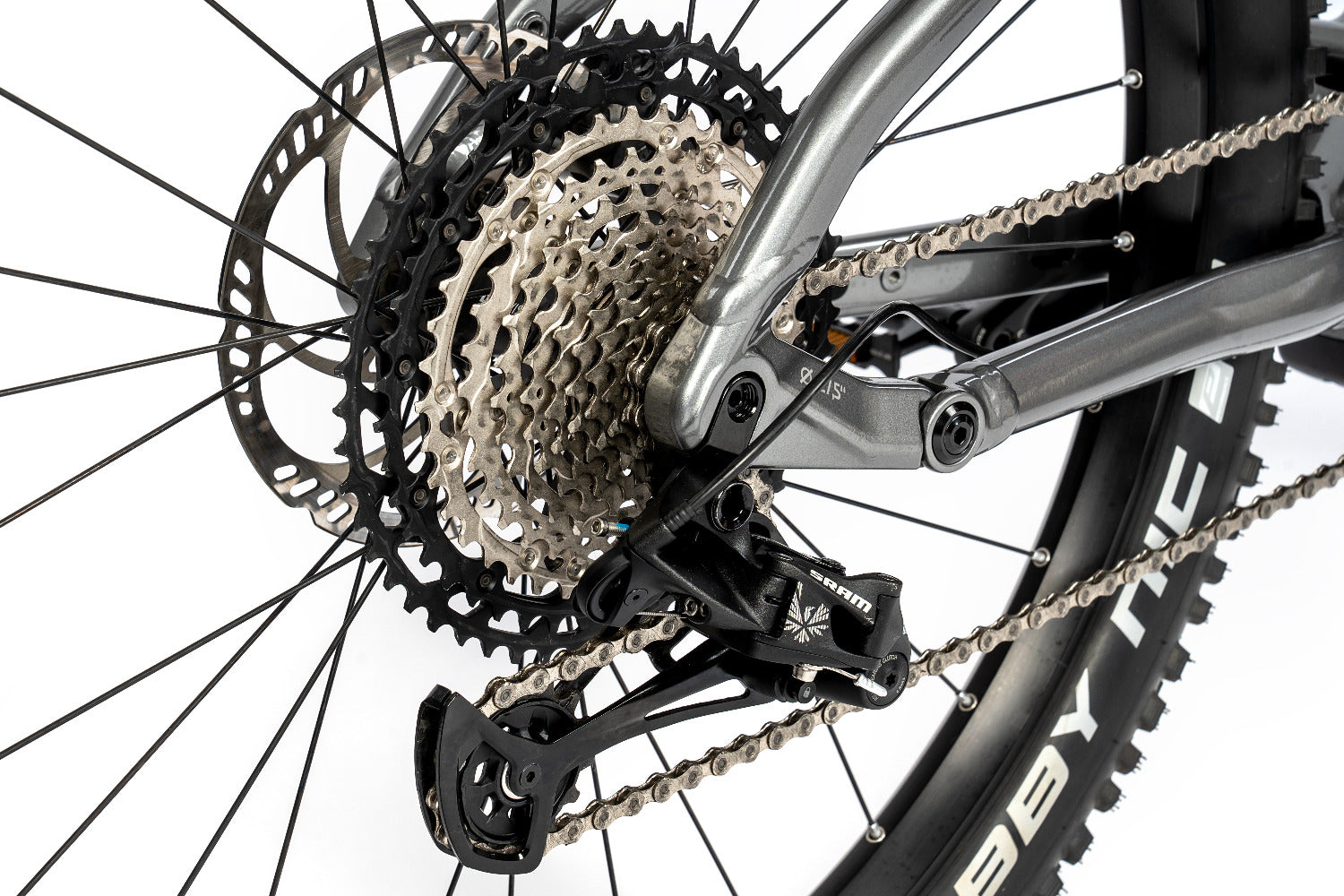

The 12-speed SRAM NX Eagle rear derailleur works on the 27.5" Boost rear wheel. With the 11-50 sprocket package, the gear ratio is an advantage on steep climbs and in tough terrain. The MOLA Monto is also really fun going downhill. The SUNRingléDüroc SD37 Expert Boost system wheels with 2.6 inch Schwalbe tyres help our Trail Fully to achieve excellent cornering.
Discover the MOLA Monto for yourself!
AREA OF USAGE
All Mountain

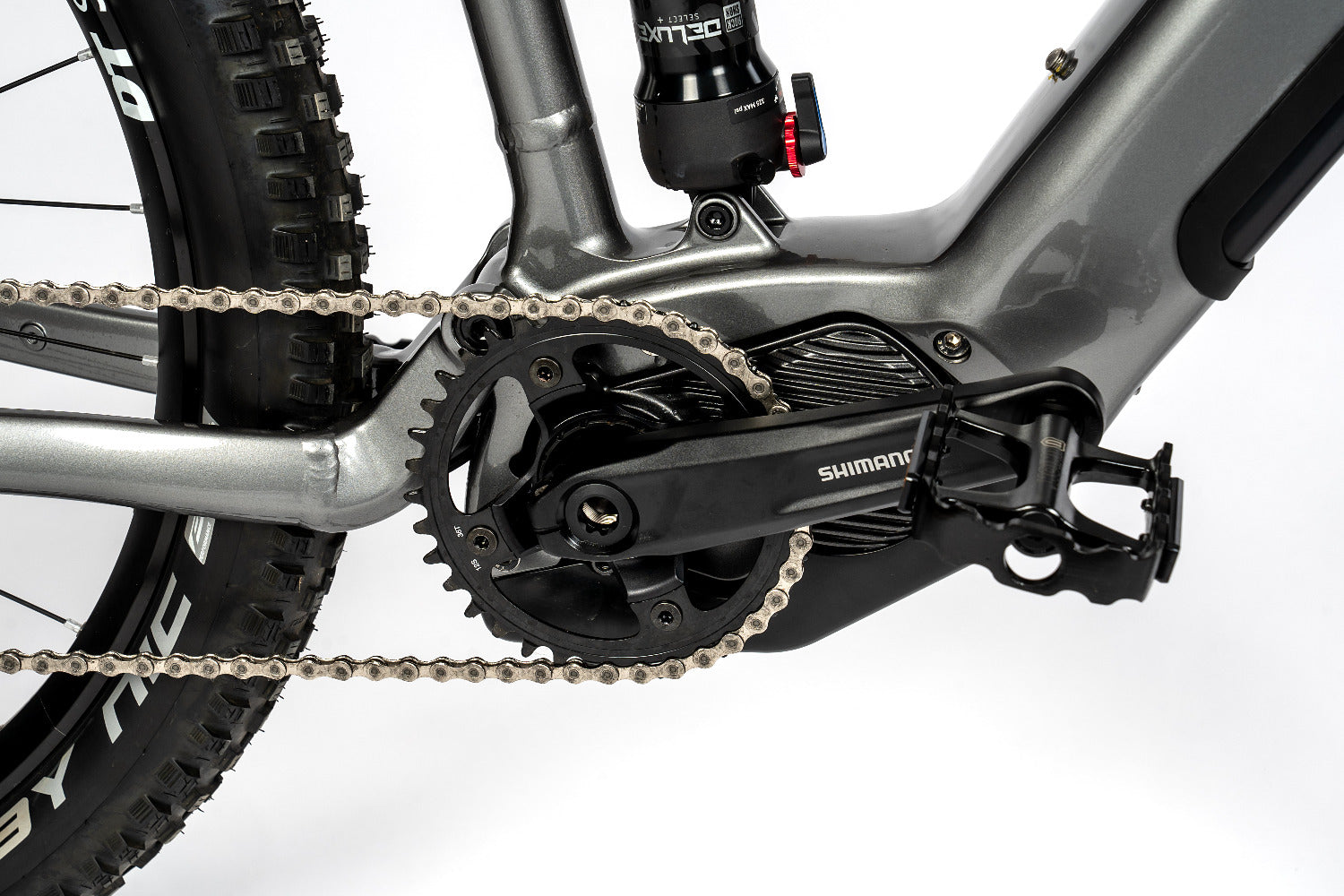

MOTOR
Shimano Steps, DU-EP801, 25 km/h, 85 Nm, mid-motor
Discover the next level of e-bike riding with the Shimano Steps DU-EP801 mid-motor. With a powerful torque of 85 Nm and a maximum assist speed of 25 km/h, you will experience a completely new driving experience. Thanks to its position in the bottom bracket area, the mid-motor provides balanced weight distribution and a natural riding experience while helping you climb hills and cover long distances with ease.

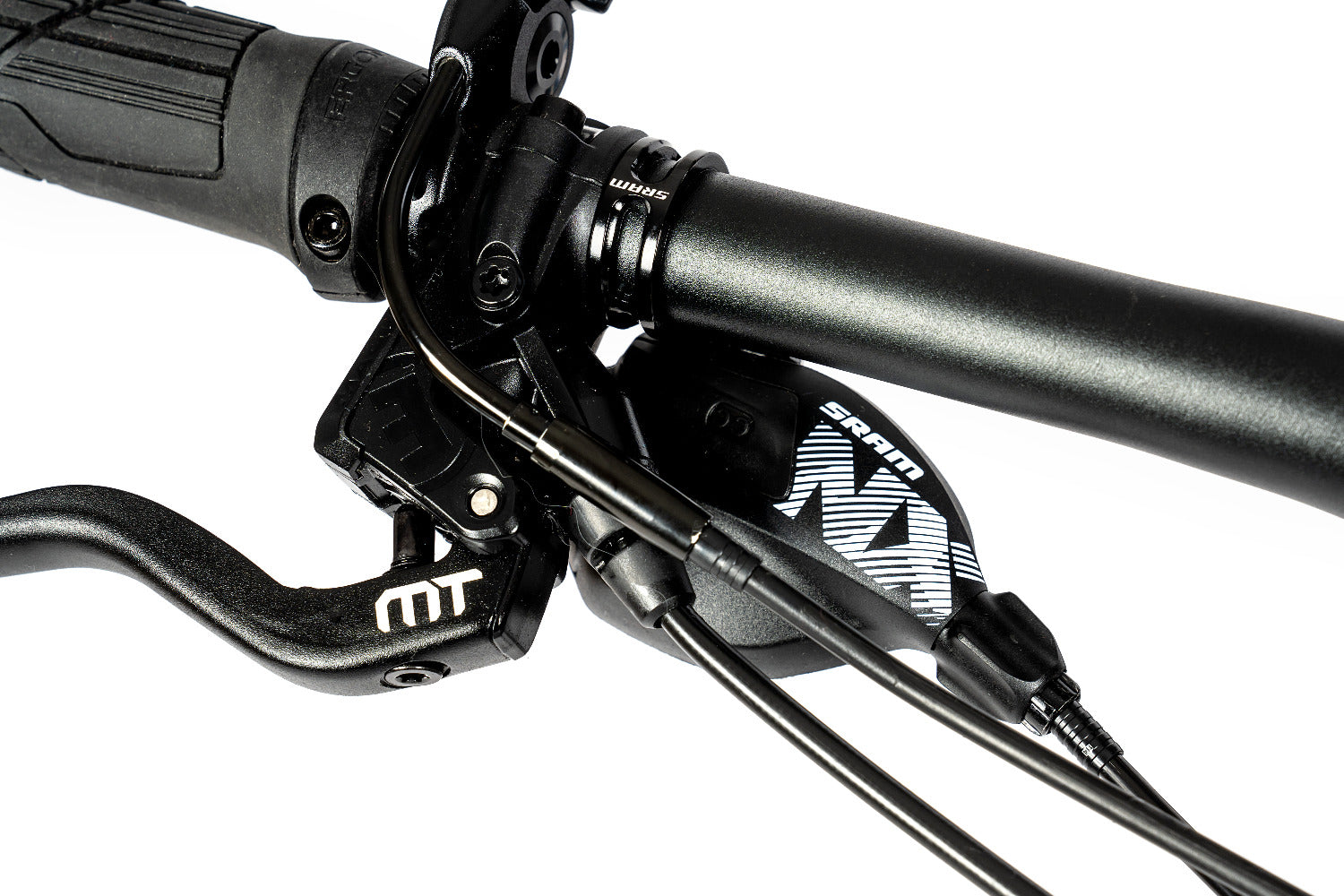

SHIFTING SYSTEM
The high-quality SRAM NX Eagle 12-speed derailleur gear allows you to achieve precise and reliable shifting behaviour on any terrain. With the SRAM NX Eagle rear derailleur and the matching shifters, you always have full control of your ride and can effortlessly switch between gears. No matter whether you're conquering steep climbs or enjoying rapid descents, the gears guarantee an optimal driving experience and make every ride a pure pleasure.

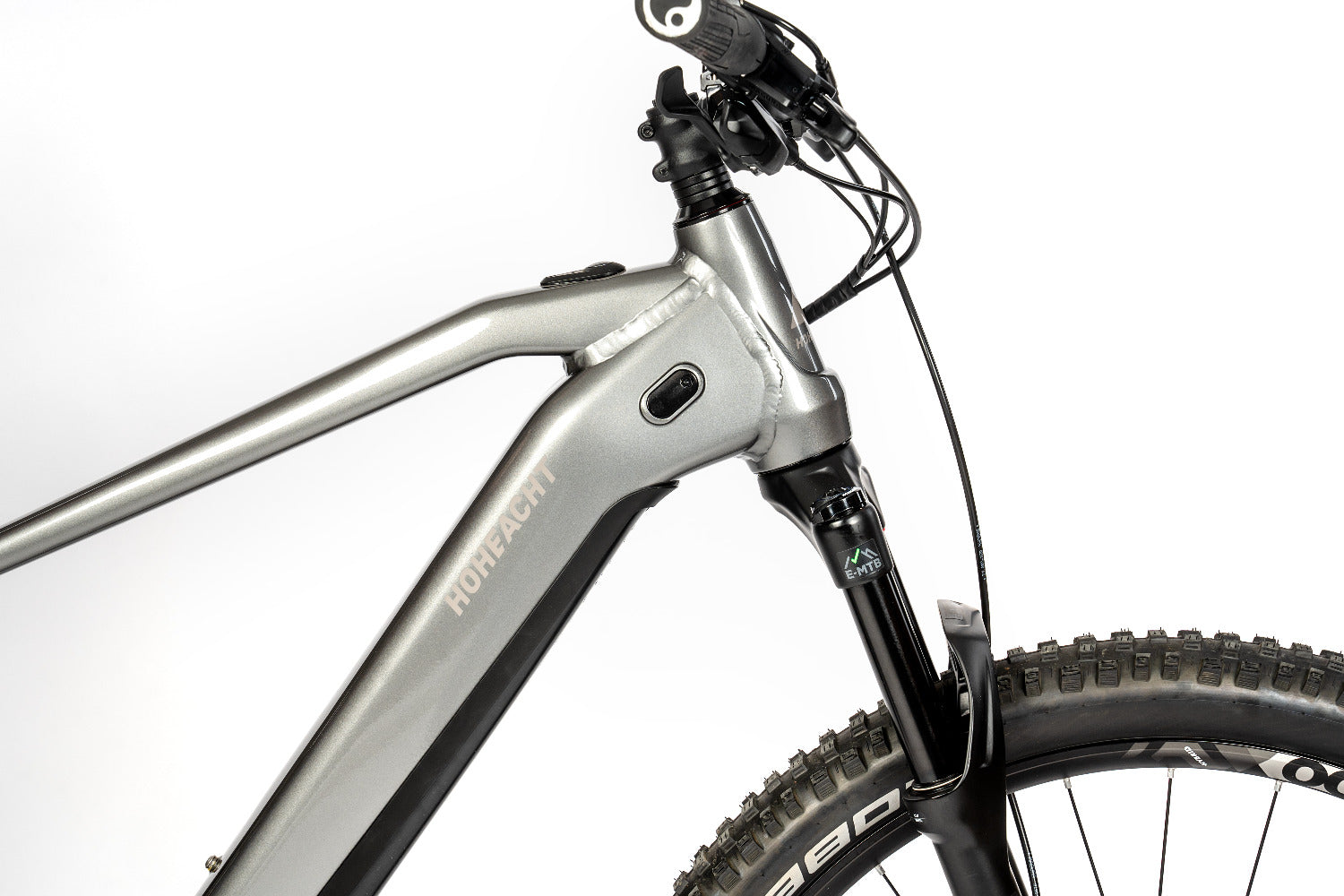

Frame |
Fullsuspension, aluminum |

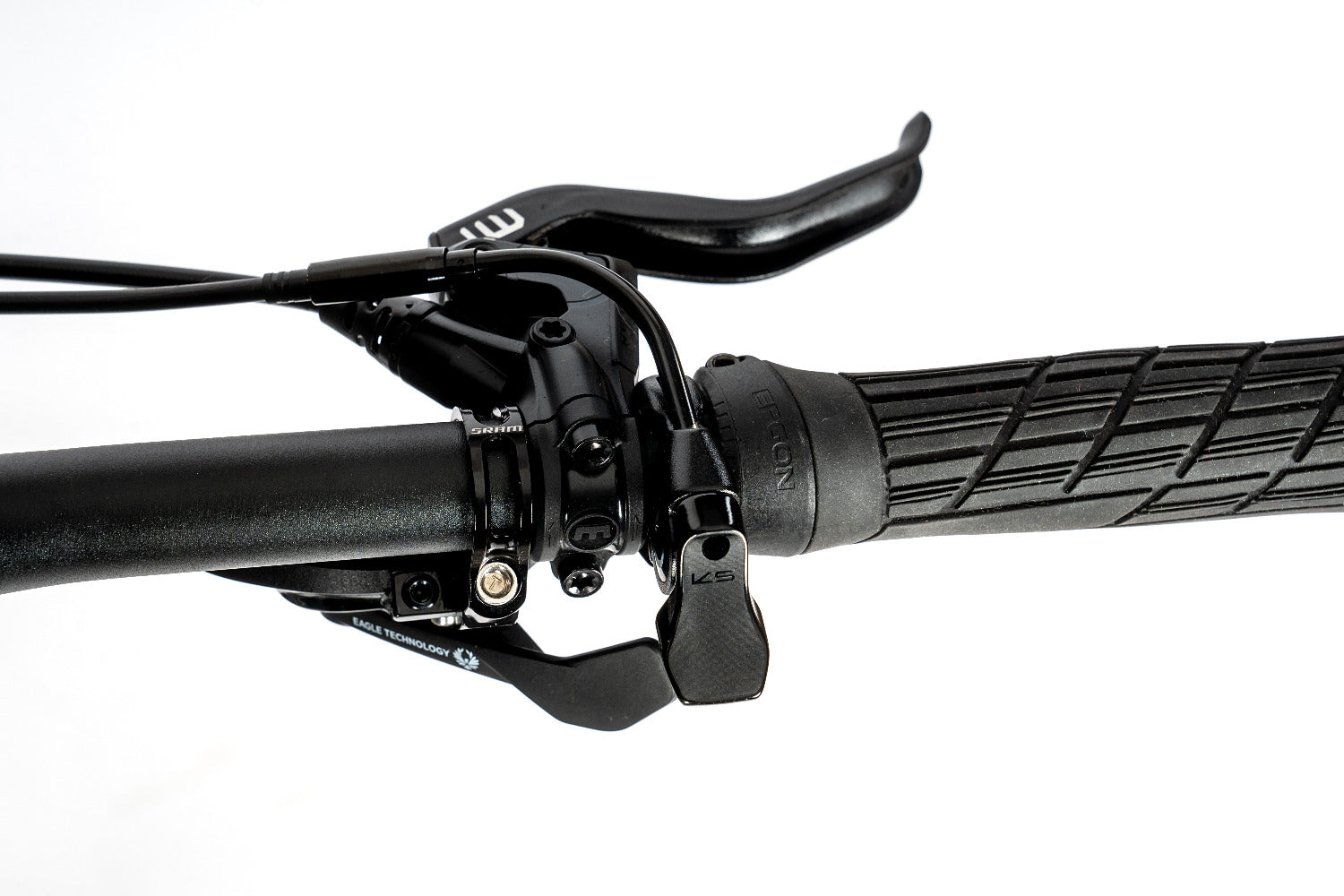

Shift lever |
SRAM, NX Eagle, TRIGGER, SL-NX1-PA-B1, 12-speed |

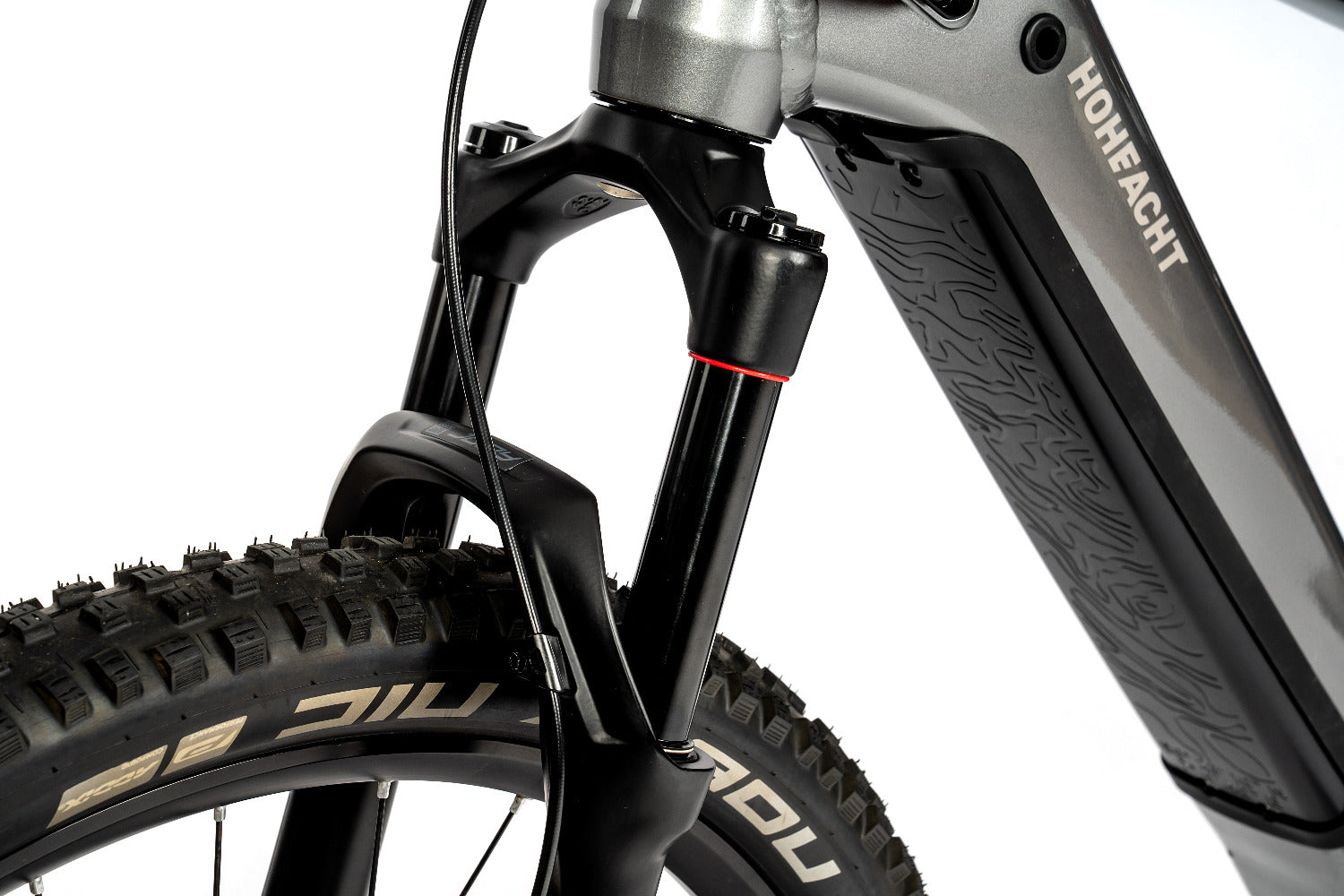

Suspension fork |
RockShox, 35 SILVER TK, 120 mm travel |
Front brake |
SRAM, DB-DB8-A1, four-piston |

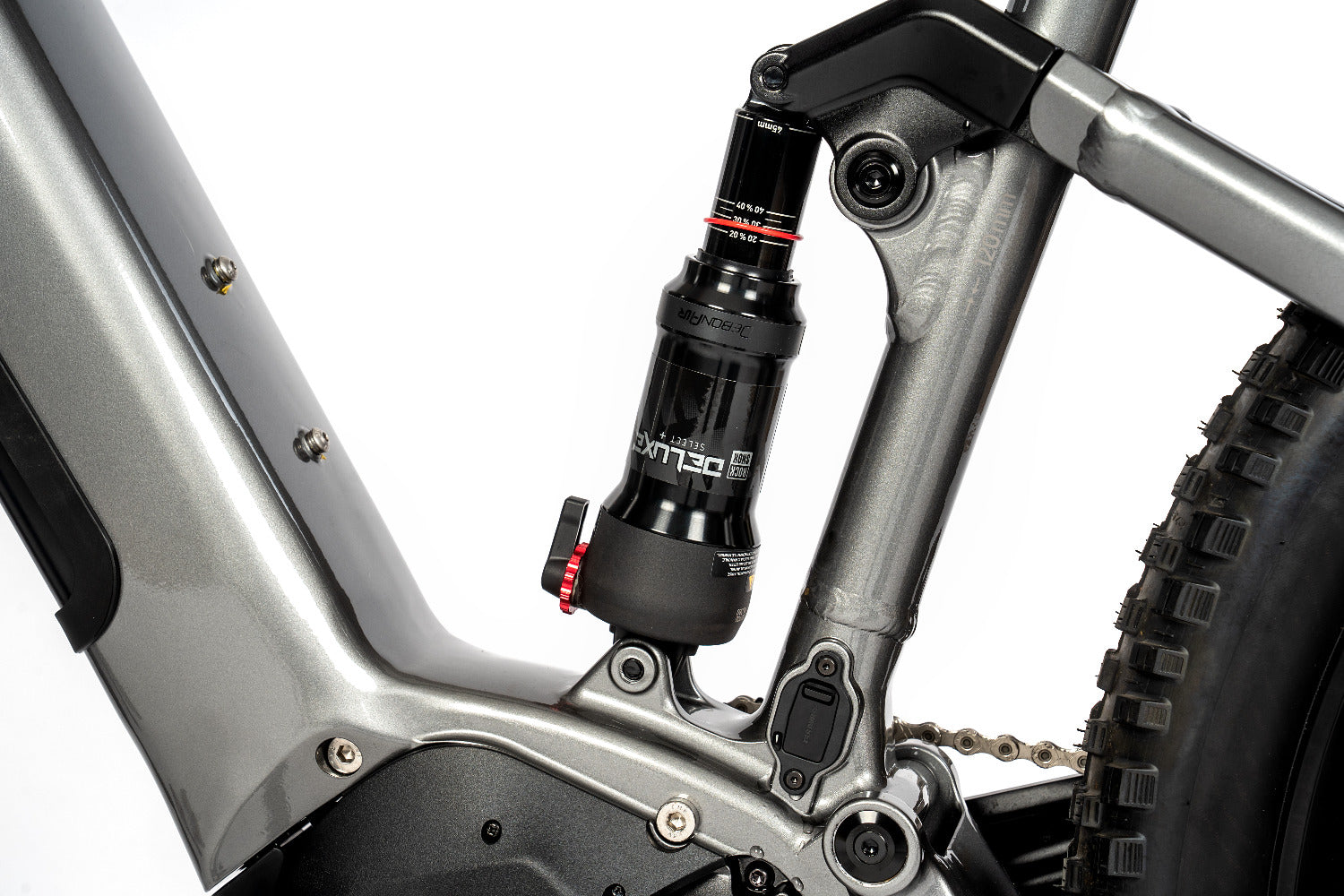

Shock |
RockShox, Deluxe Select+, 120 mm travel |
Rear brake |
SRAM, DB-DB8-A1, four-piston |

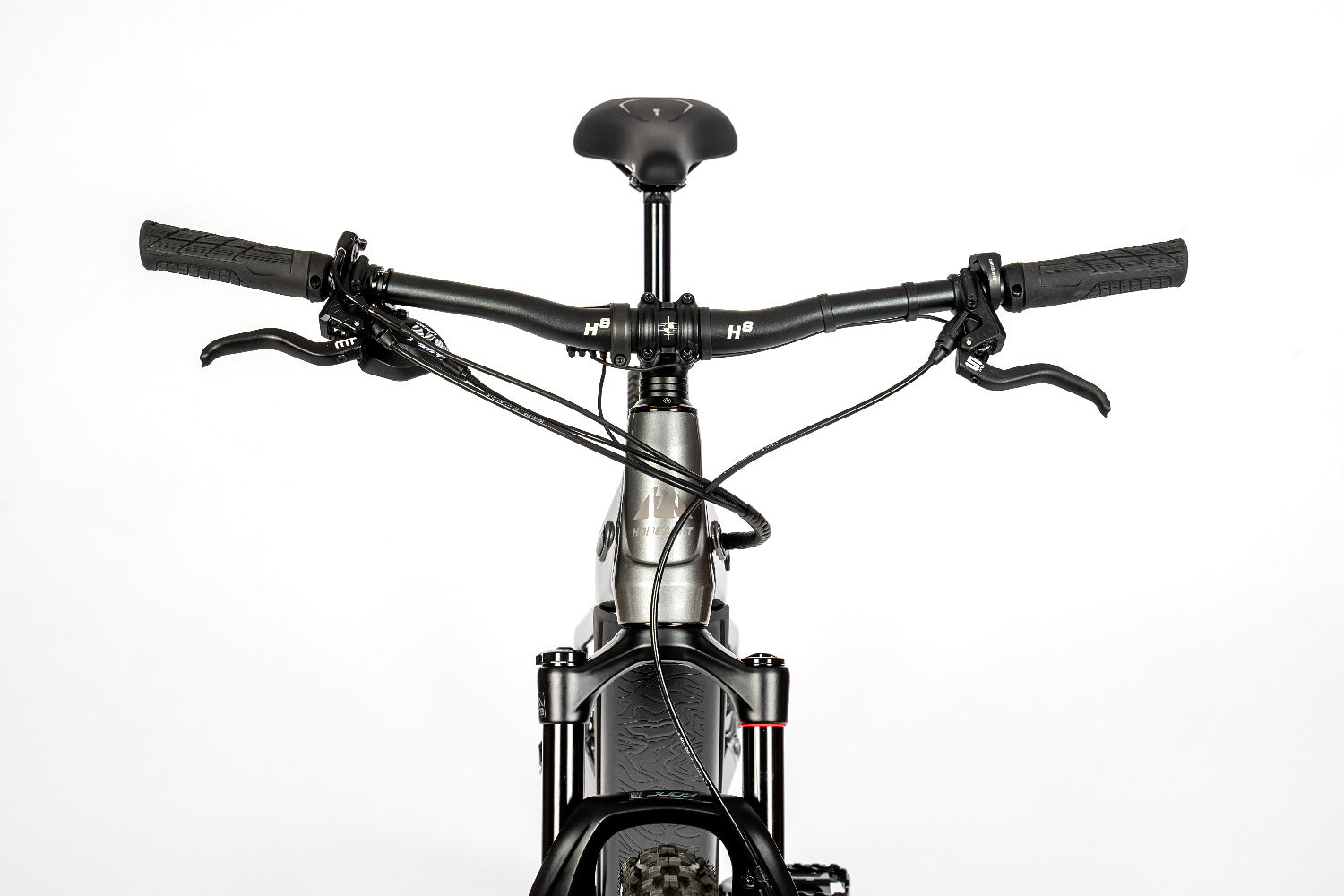

Handlebar |
HoheAcht, 31.8 mm, width 720 mm, bend 9°, rise 15 mm, aluminum, black |
Brake disc front |
SRAM, DB-Rotor, 180 mm, IS 6-hole |
Stem |
HoheAcht, 60 mm, ±7°, aluminum, black |
Brake disc rear |
SRAM, DB-Rotor, 180 mm, IS 6-hole |
Grips |
Velo Plastic, Vexk, 135 mm |

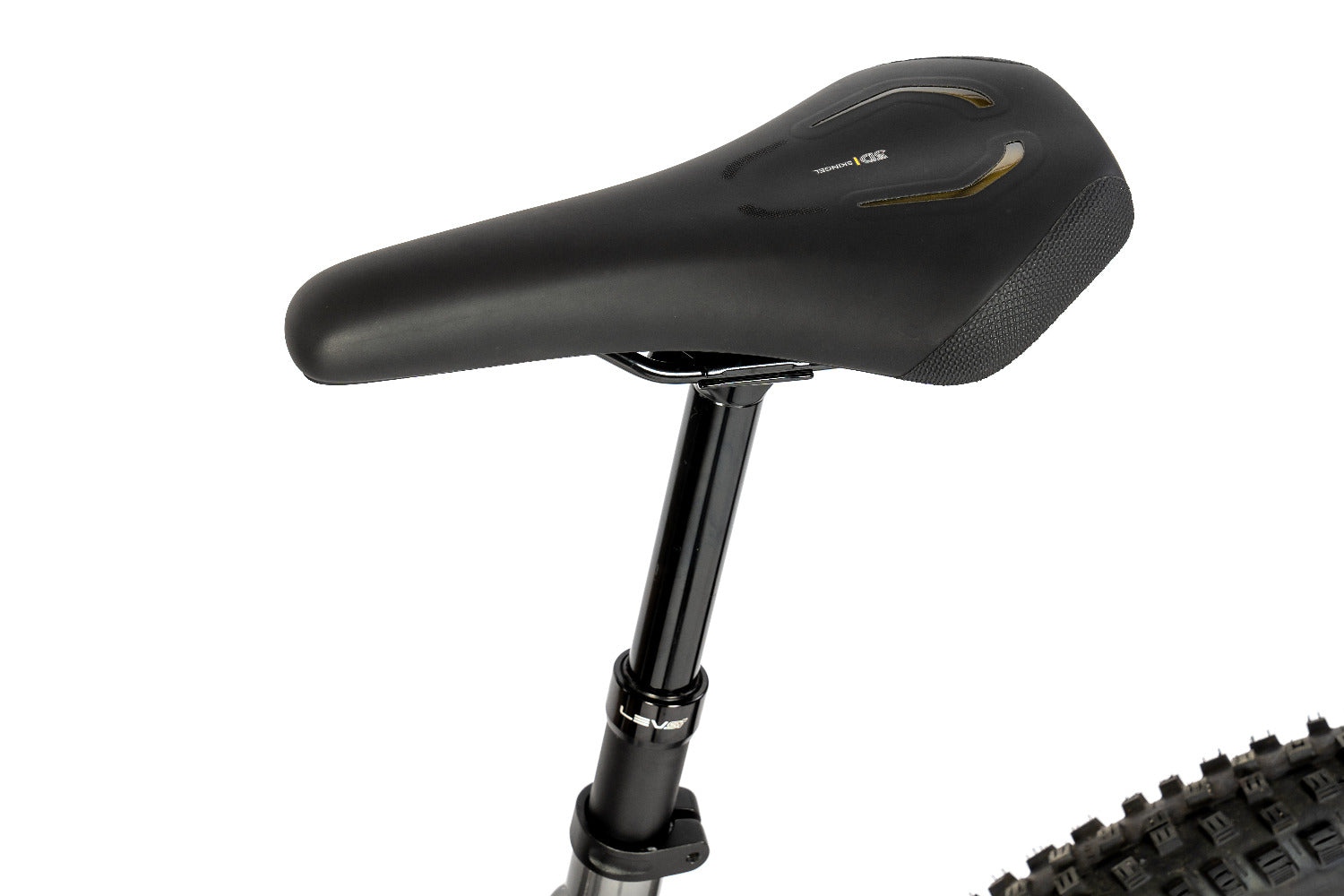

Saddle |
Prologo, Proxim W350 |
Headset |
ACROS, zs44, zs56, industrial bearings |
Seatpost |
Limotec, A1 Dropper Post, 125 mm, aluminum |
Rim |
SUNRinglé, Düroc SD37 Expert 27,5'', aluminum, black, TLR |
Front light |
Sate-lite lighting set LF-12, Li-ion battery, max. 50 LUX + Messingschlager reflector set |
Wheel size |
27,5 inch |
Rear light |
Sate-lite lighting set LR-03K, 200mAh LIR2050 battery, 220° visibility |
Tyres |
Schwalbe, Nobby Nic Evo, 27.5'' x 2.6'' (65-584) |
Battery lock |
ABUS, BLO SHI IT2 XPLUS |
Front wheel hub |
SUNRinglé, Düroc SD37 Expert 27,5'', Disc, 15 x 110 mm, Boost |
Pedals |
Marwi, SP-160 BL, aluminum |
Rear wheel hub |
SUNRinglé, Düroc SD37 Expert 27,5'', Disc, 12 x 148 mm, Boost |
Motor |
Shimano Steps, DU-EP801, 25km/h, 85 Nm, mid-motor |
Sprocket |
SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth |
Battery |
Shimano Steps, BT-EN806, 630 Wh, integrated |
Chain |
YBN, S12e S2 |

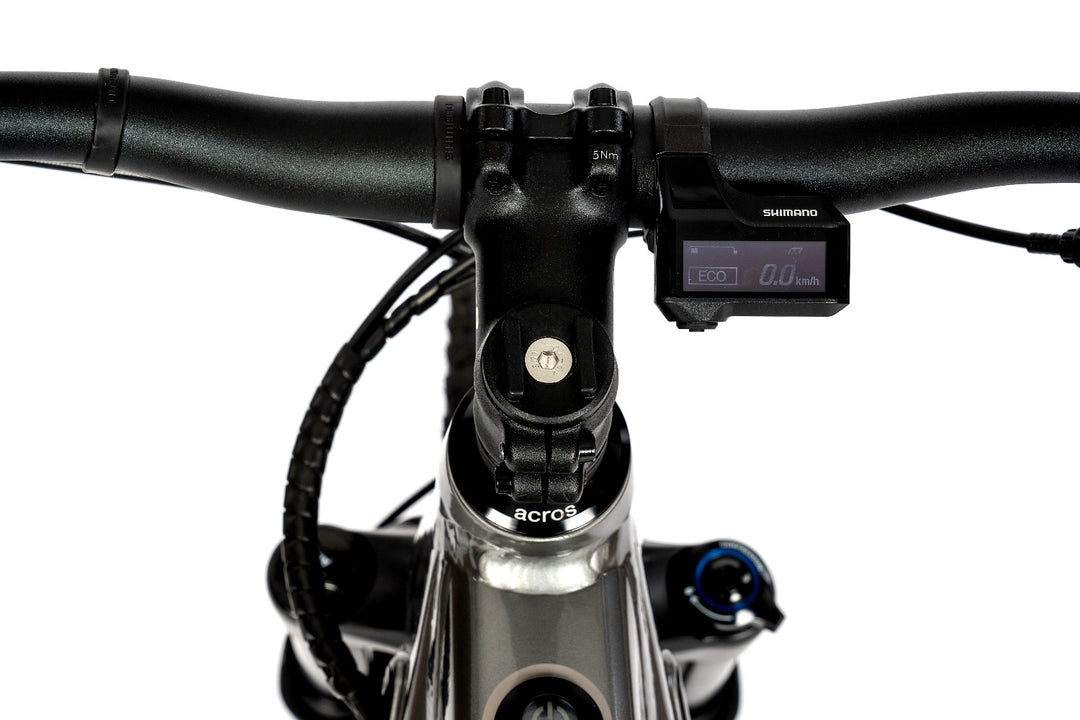

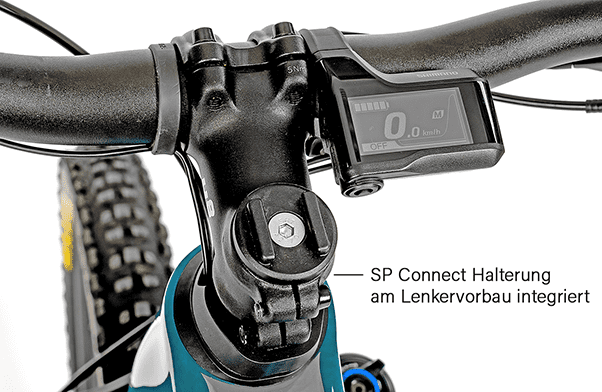

Display |
Shimano Steps, SC-EN600, Bluetooth, ANT Private |
Crankset |
Chainring Shimano Steps, SM-CRE80, 36 teeth, steel/aluminum |
Charger |
Shimano Steps, EC-E8004, 42 V DC, 4 A |
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Weight |
From 24,0 kg |
|
Derailleur |
SRAM, NX Eagle, RD-NX-1-B1, 12-speed derailleur, freewheel |
Max. permissible weight |
130 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
| Frame size (cm) | 42 | 46 | 50 |
| Seat tube (mm) | 420 | 460 | 500 |
| Top tube horizontal (mm) | 600 | 640 | 660 |
| Head tube (mm) | 150 | 150 | 150 |
| Wheelbase (mm) | 1177 | 1196 | 1237 |
| Chainstays (mm) | 460 | 460 | 460 |
| Bottom bracket height (mm) | 330 | 330 | 330 |
| Head tube angle (°) | 67 | 67 | 67 |
| Seat angle (°) | 74 | 74 | 74 |
| Stack (mm) | 620 | 620 | 620 |
| Reach (mm) | 422 | 462 | 482 |
| Body height (cm) | 160 - 170 | 170 - 180 | 180 - 195 |
