Frame |
Full suspension, aluminum |
Rear brake |
Hayes, Dominion A4, four-piston, hydraulic disc brake |

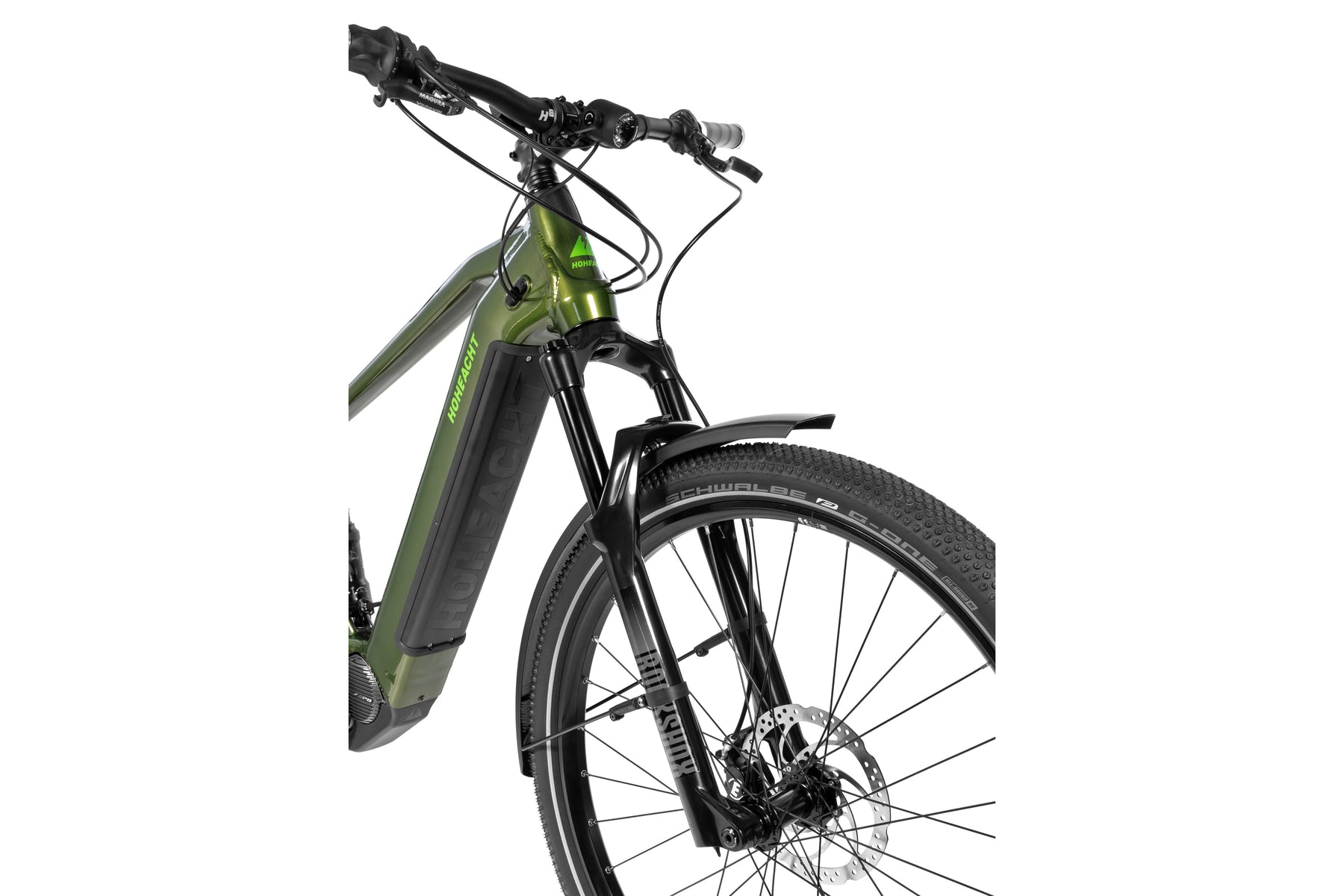

Suspension fork |
RockShox, 35 SILVER TK, 120 mm travel |
Brake disc front |
Hayes, D-Series, 203 mm, IS 6-hole |

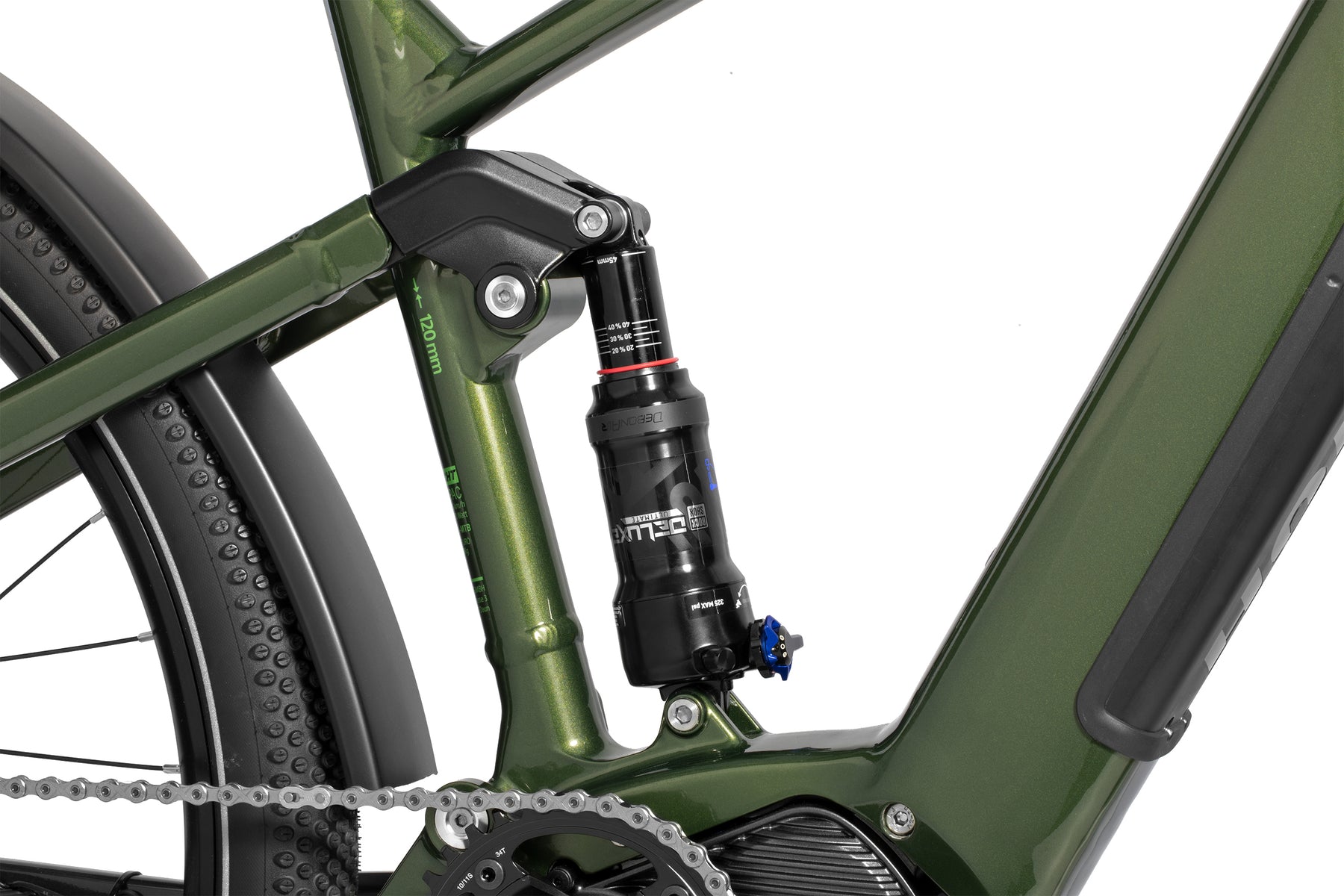

Shock |
RockShox, Deluxe Select+, 120 mm travel |
Brake disc rear |
Hayes, D-Series, 180 mm, IS 6-hole |

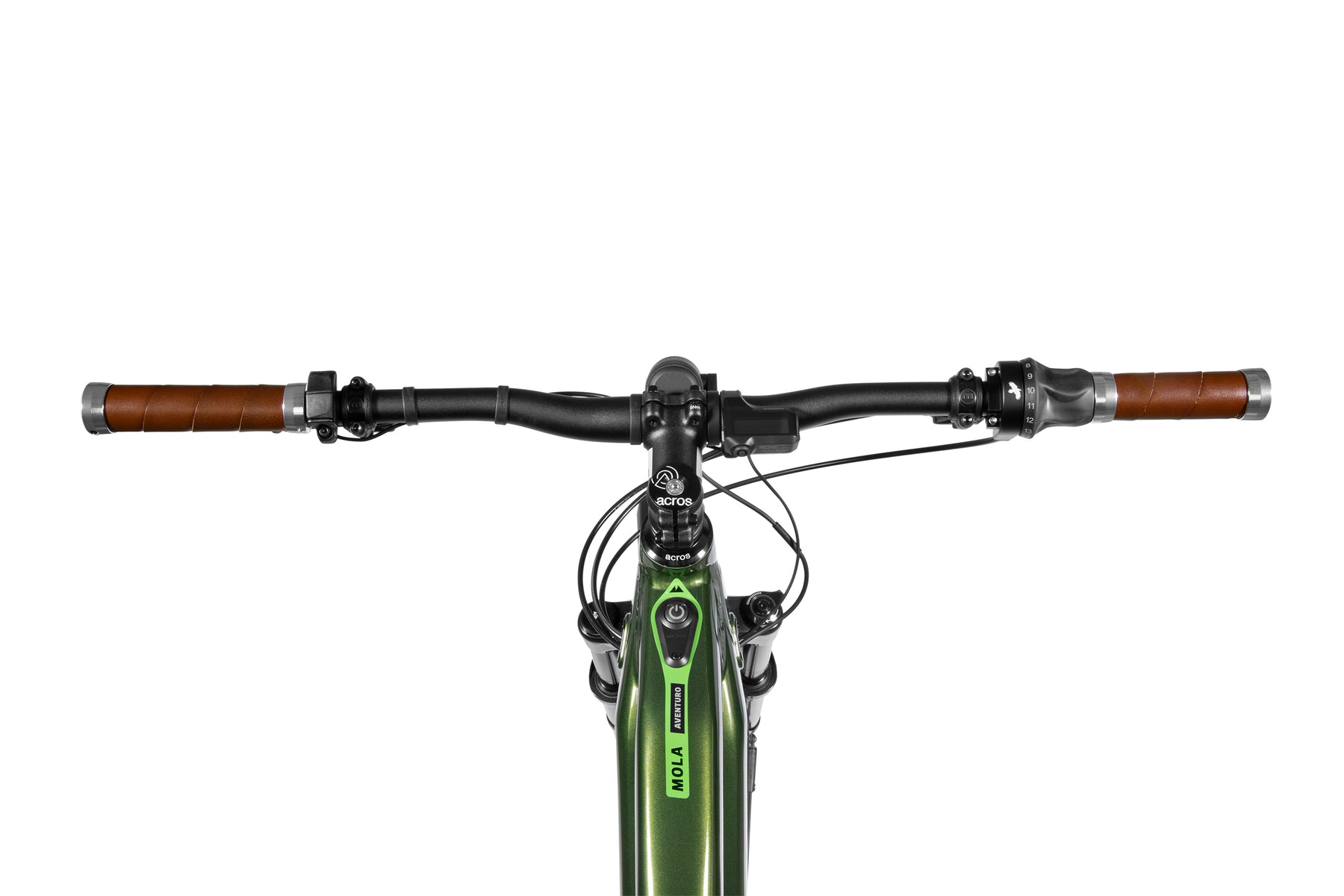

Handlebar |
HoheAcht, 31.8 mm, width 720 mm, bend 12°, rise 15 mm, aluminum, black |
Saddle |
Brooks, B17 |
Stem |
HoheAcht, 40 mm, 60 mm, ±7°, aluminum, black |
Seatpost |
HoheAcht, Seatpost 2D, 31.6 mm x 350 mm, 10 mm offset, aluminum |
Grips |
Brooks, Slender Leather Grips, 130 mm / 100 mm |
Rack |
AtranVelo, Tour 365 BS H-Cargo, 27 kg payload |
Headset |
ACROS, zs44, zs56, industrial bearings, Stem Cap SP-Connect |

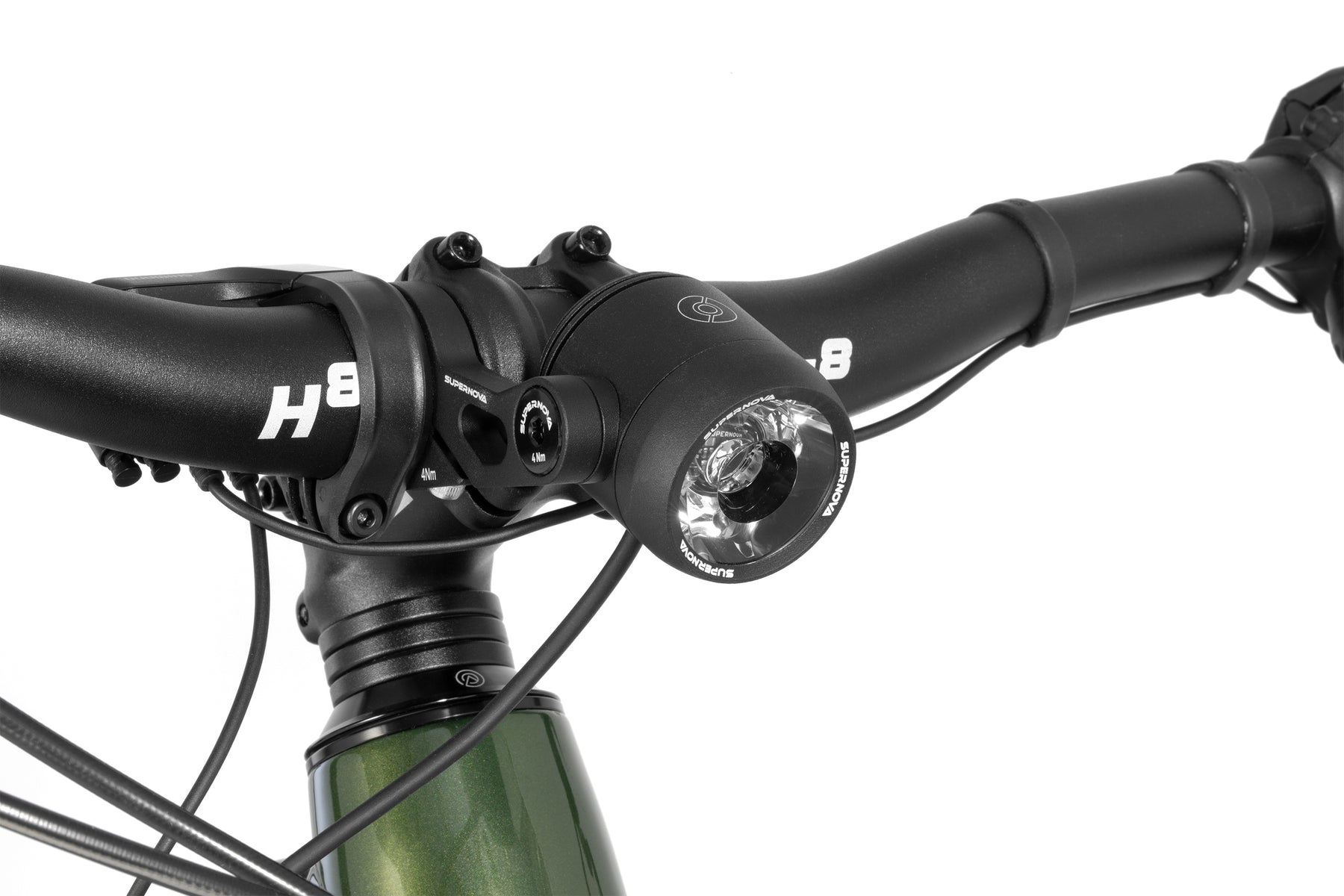

Front light |
Supernova, V521S, 5-21 V, Power LED, 4.8 W, 235 lm, aluminum |
Rim |
Mach1, Trucky 30, 27.5'', aluminum, black |
Rear light |
Herrmans, H-Cargo E-Bike 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector |
Wheel size |
27.5 inches |
Mudguard |
SKS, PET wheel protector, A69R, 28 inches |
Tyres |
Schwalbe, Al Grounder, 27.5'' x 2.35'' (60-584), Reflex |
Battery lock |
ABUS, BLO SHI IT2 XPlus |
Front wheel hub |
Formula, DC-711, Disc, 15 x 110 mm, industrial bearings, Boost |
Side stand |
AtranVelo, Rex DV, KSA 18 |

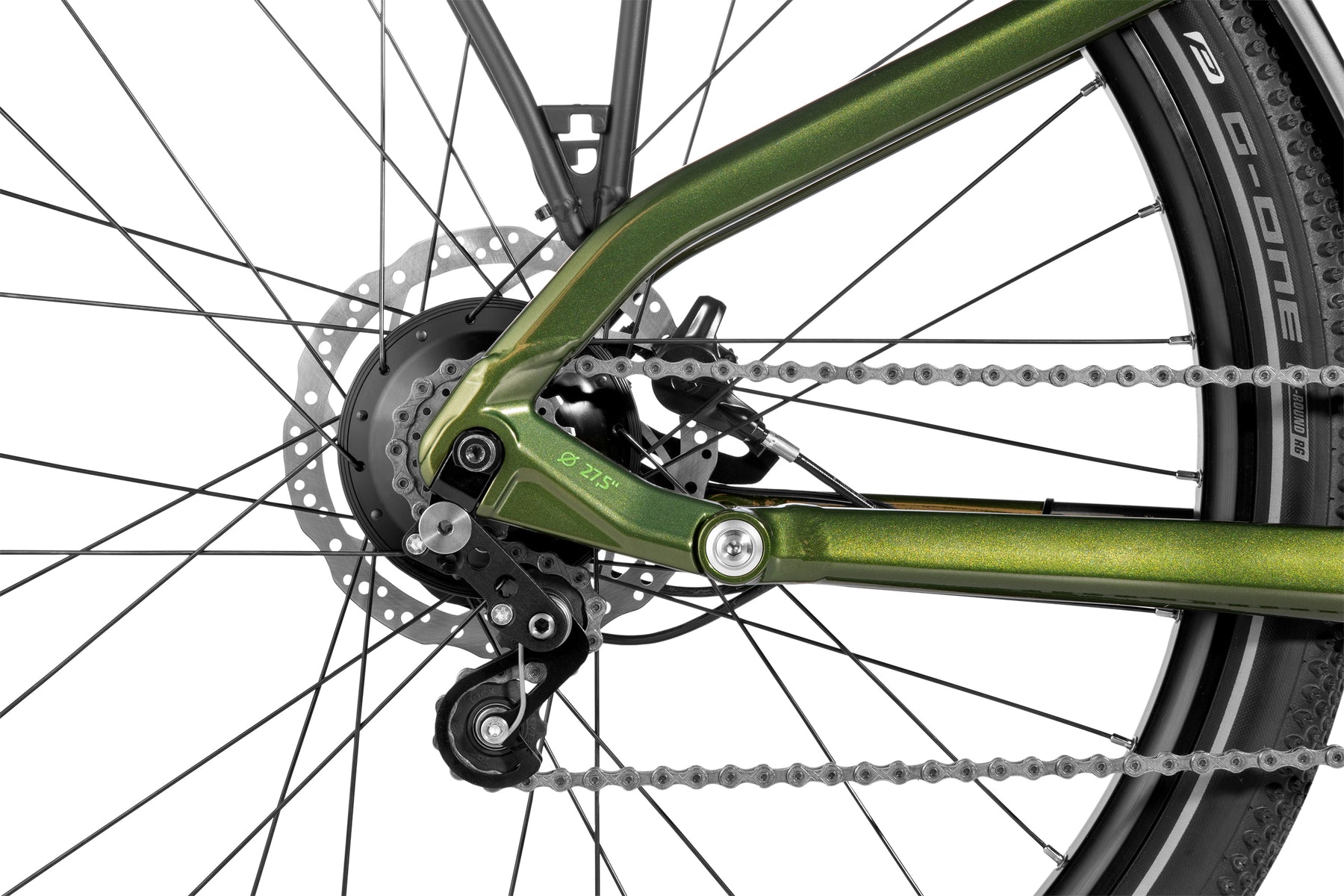

Rear wheel hub |
Rohloff, SPEEDHUB 500/14 A12, 15 x 148 mm, Boost |
Pedals |
Marwi, SP-2160, AL-6061 Extrusion T6 |
Sprocket |
Rohloff, 16 teeth |

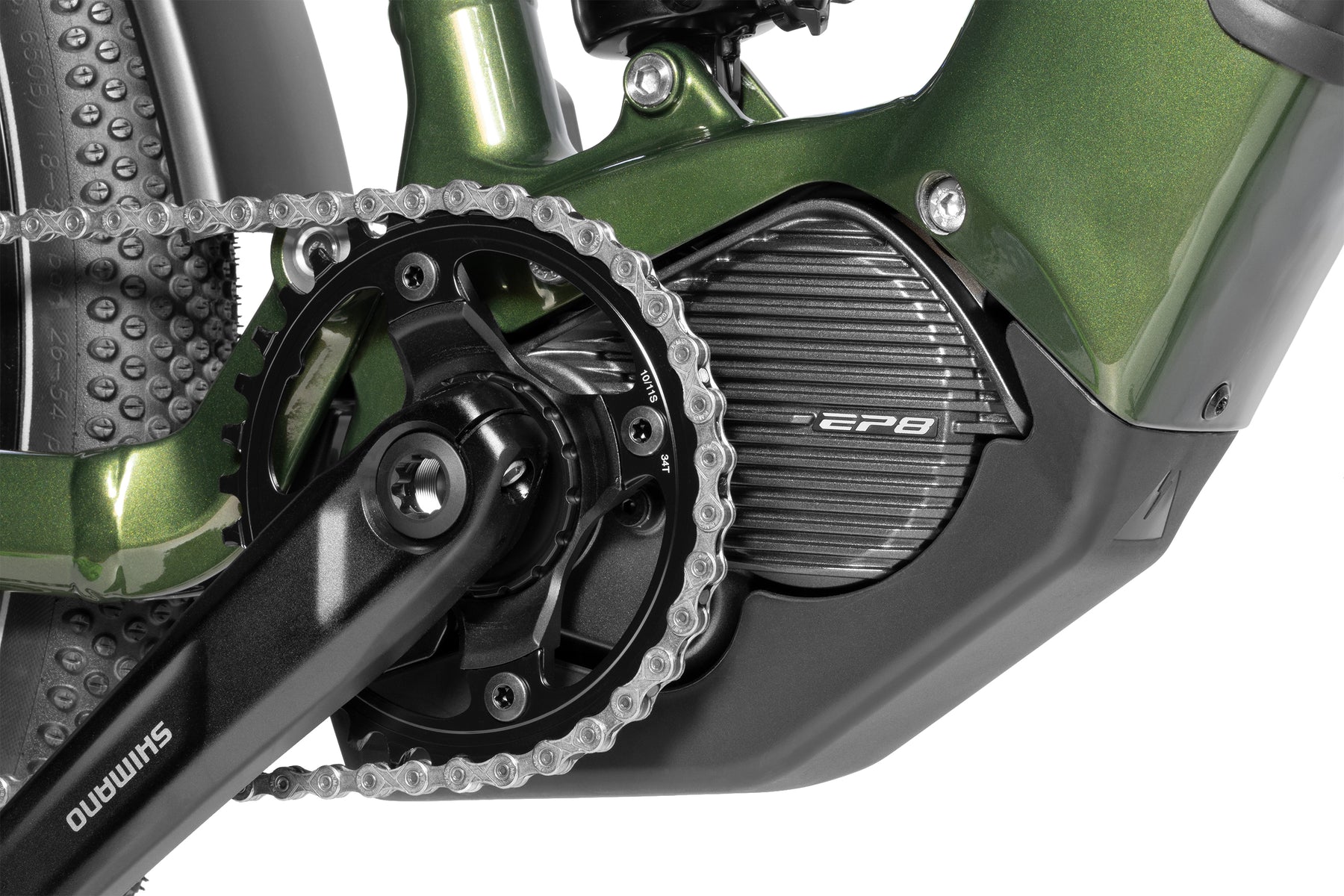

Motor |
Shimano Steps, DU-EP8, 25 km/h, 85 Nm, mid-motor |
Chain |
KMC, e1 EPT |
Battery |
Shimano Steps, BT-E8036, 630 Wh, integrated |
Crankset |
Chainring Shimano Steps, SM-CRE80, 34 teeth, steel/aluminum |
Display |
Shimano Steps, SC-E7000, Bluetooth, ANT Private |
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Charger |
Shimano Steps, EC-E6002, 2 A |
|
Derailleur |
Rohloff, SPEEDHUB 500/14, 14-speed hub gear, freewheel |
||
Shift lever |
Rohloff, SPEEDHUB 500/14 A12, twist shifter, 14 gear |
Weight |
From 24.9 kg |
Front brake |
Hayes, Dominion A4, four-piston, hydraulic disc brake |
Max. permissible weight |
150 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
| Frame size (cm) | 42 | 46 | 50 |
| Seat tube (mm) | 420 | 460 | 500 |
| Top tube horizontal (mm) | 600 | 640 | 660 |
| Head tube (mm) | 150 | 150 | 150 |
| Wheelbase (mm) | 1177 | 1196 | 1237 |
| Chainstays (mm) | 460 | 460 | 460 |
| Bottom bracket height (mm) | 330 | 330 | 330 |
| Head tube angle (°) | 67 | 67 | 67 |
| Seat angle (°) | 74 | 74 | 74 |
| Stack (mm) | 620 | 620 | 620 |
| Reach (mm) | 422 | 462 | 482 |
| Body height (cm) | 160 - 170 | 170 - 180 | 180 - 195 |
