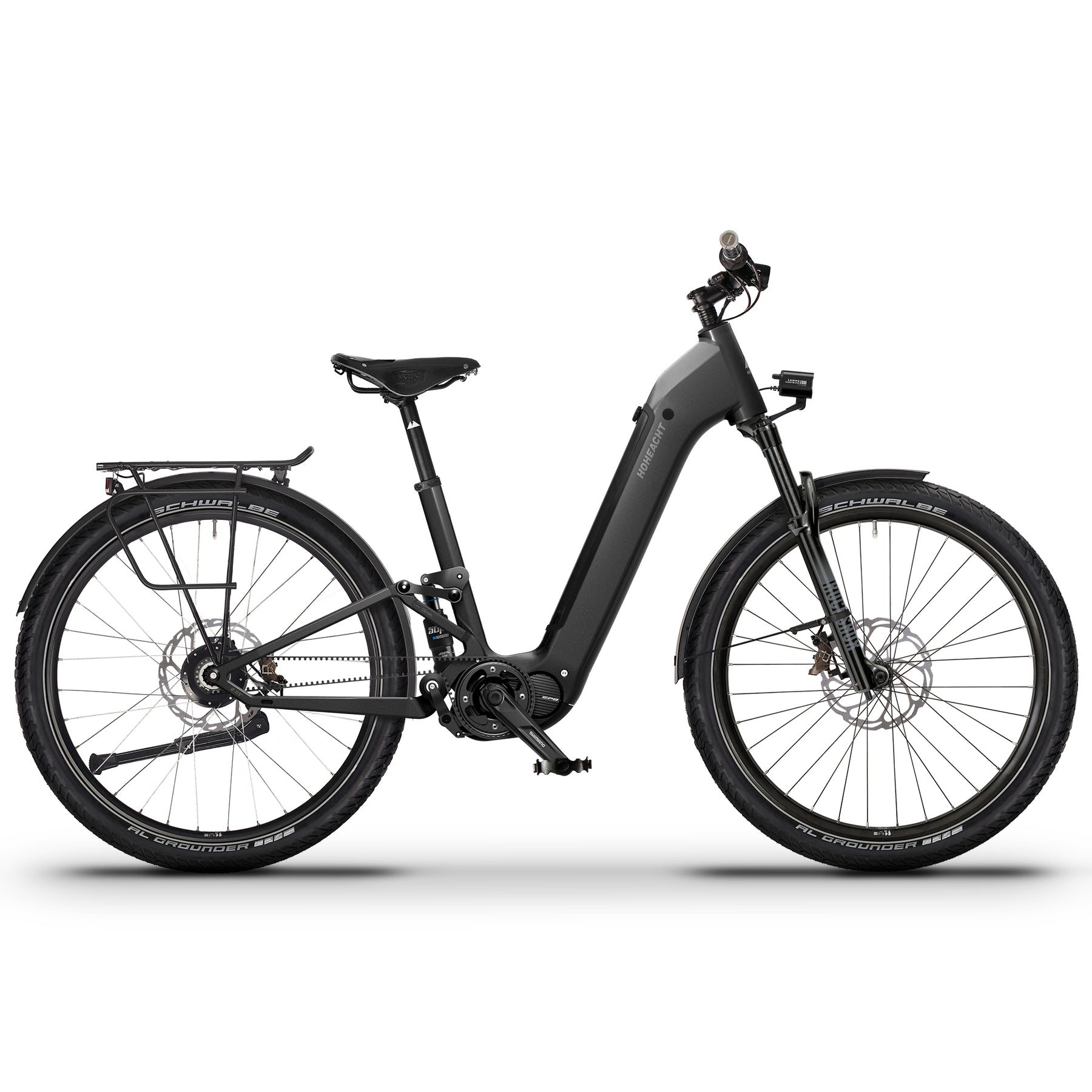

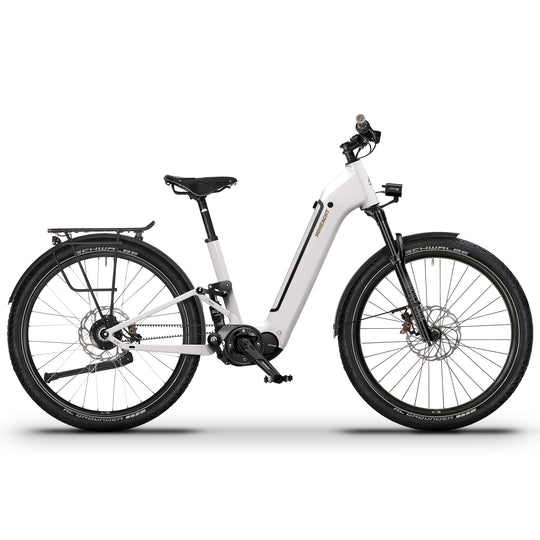

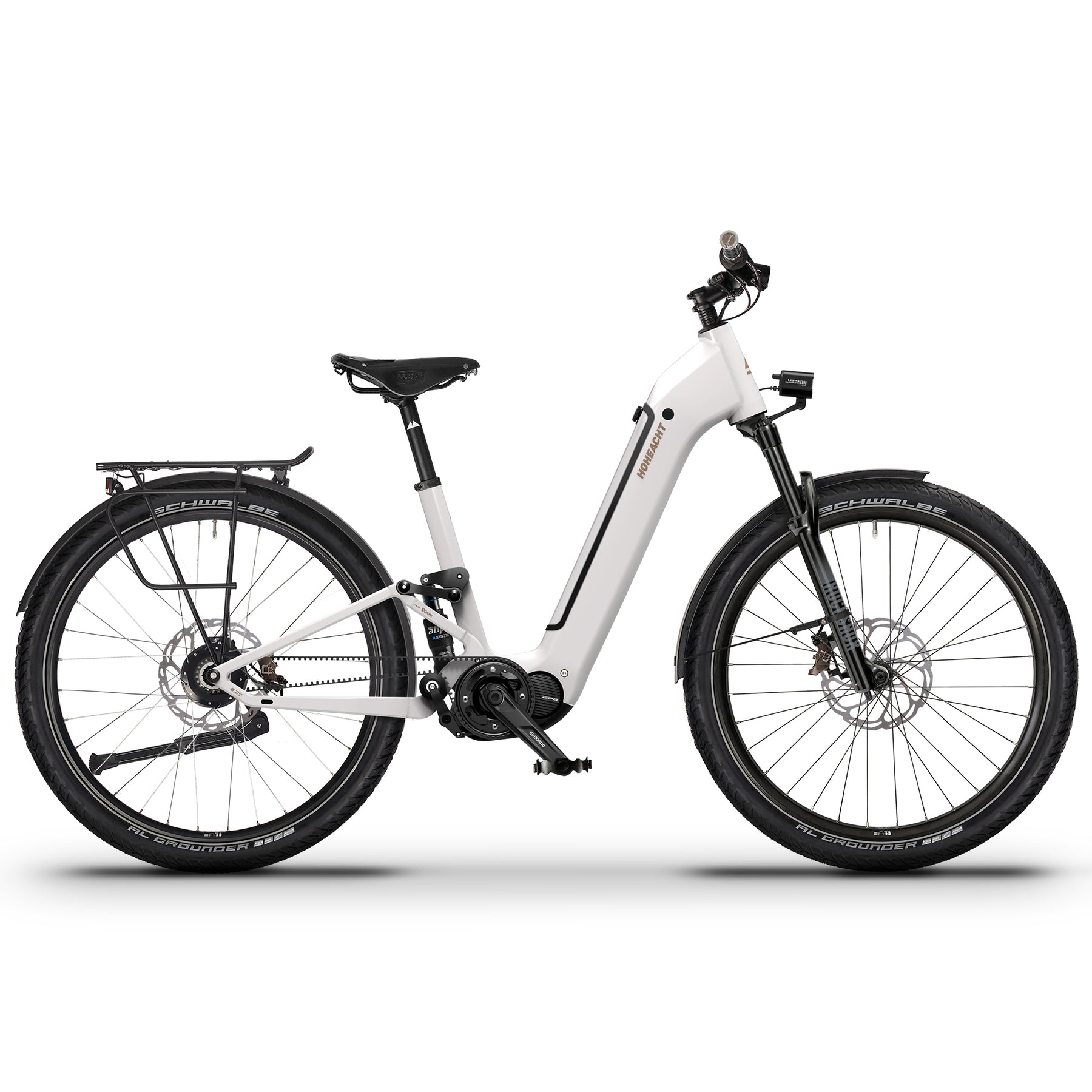

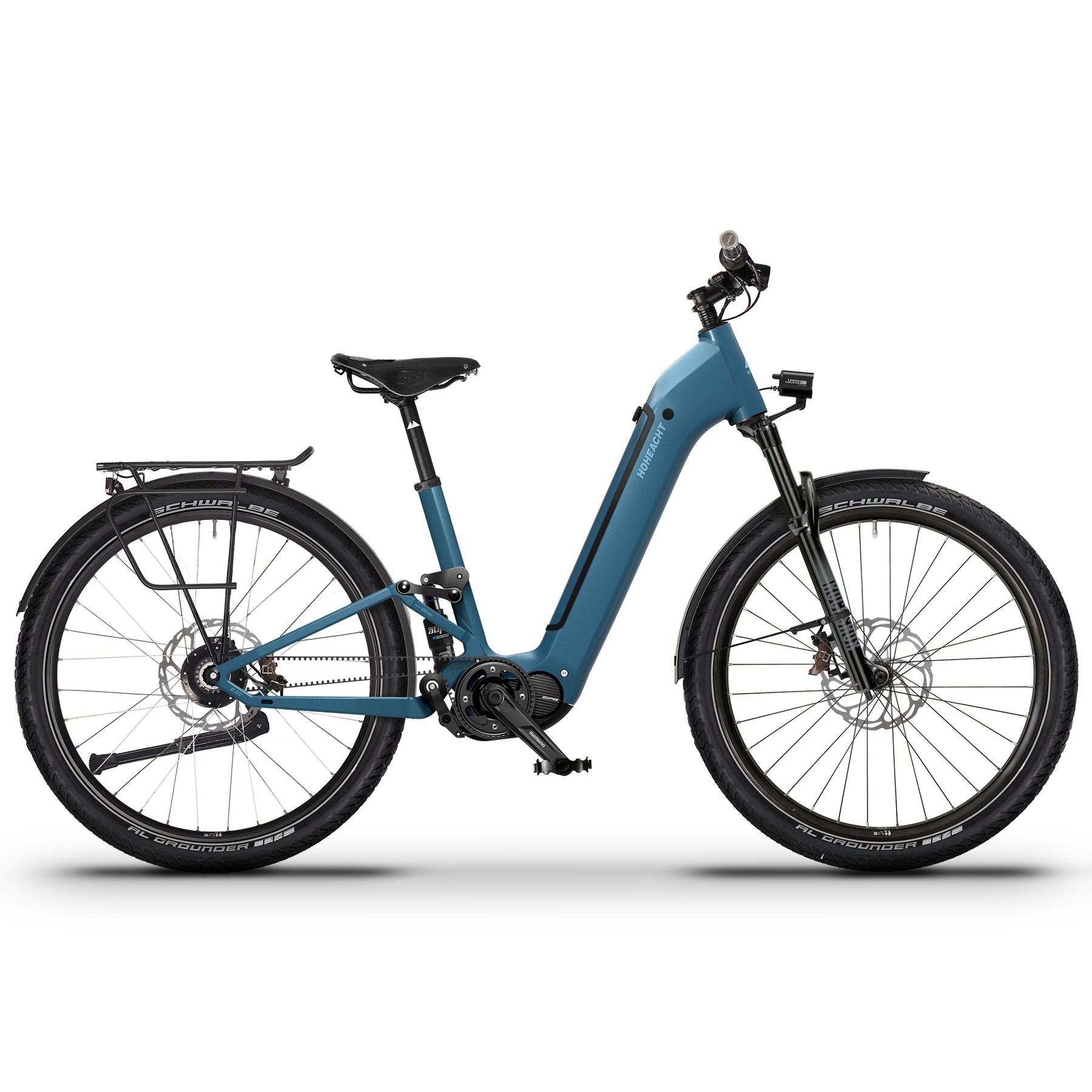

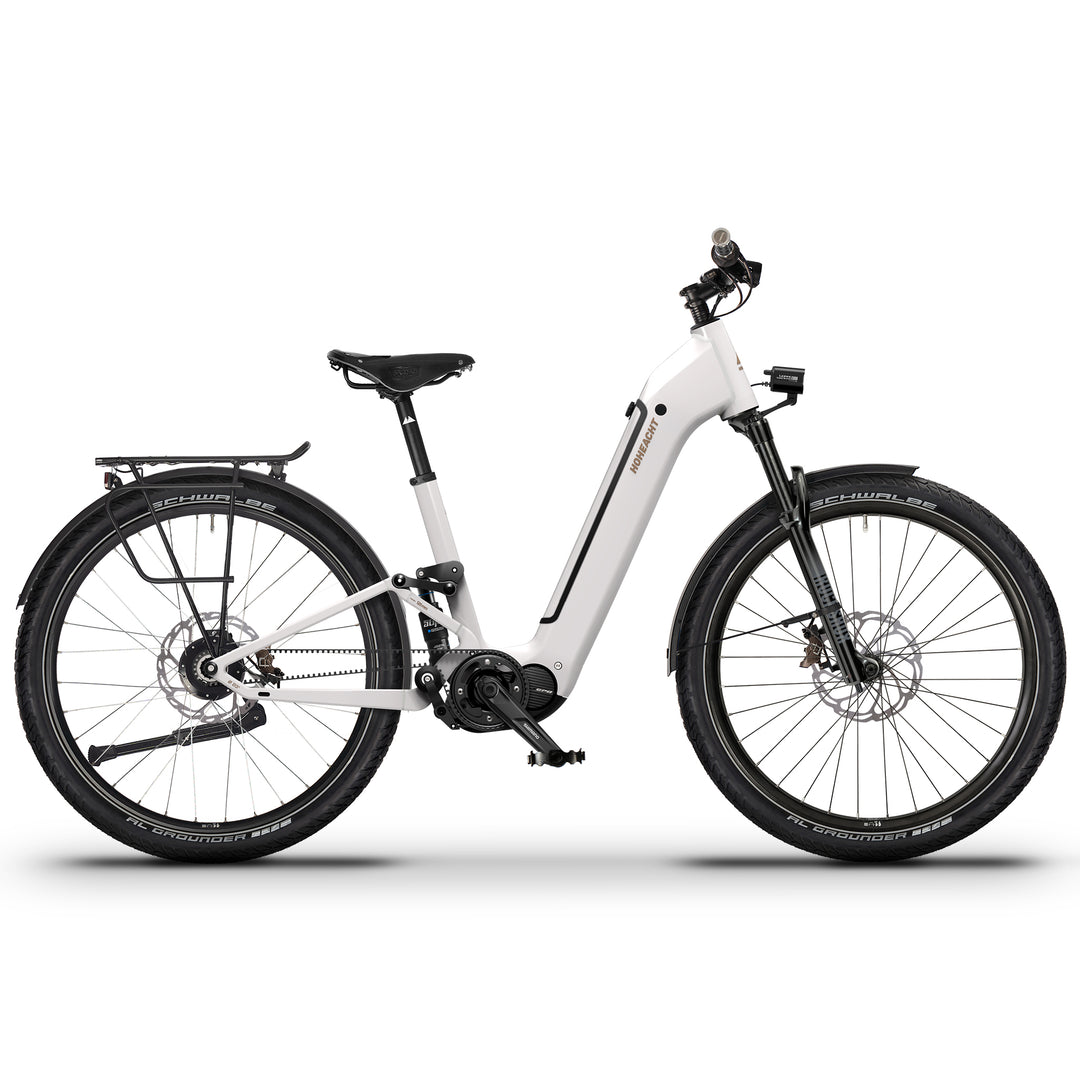

AMOLA Aventuro –The HIGH-END ADVENTURER
The full-suspension low step AMOLA Aventuro with 120 mm suspension travel brings every trekking enthusiast comfortable and safe to the destination. Both the RockShox shock in the rear and the RockShox suspension fork can be perfectly adjusted to weight and use using the air pressure, which makes the AMOLA a real comfort miracle. The deep step-through not only makes it easier to get on and off, but also offers safe handling with full luggage bags. Even with a full load (up to 160 kg), the Hayes Dominion four-piston brakes (front wheel) bring the AMOLA to a reliable standstill. The powerful yet lightweight Shimano EP801 motor accelerates with a powerful torque of up to 85 Nm. In combination with the large, integrated 630 Wh battery, nothing stands in the way of even long tours.
All-round carefree and practically maintenance-free - this is guaranteed by the drive, consisting of a 14-speed Rohloff Speedhub and a Gates carbon belt. The AMOLA Aventuro stands for our vision like no other HoheAcht e-bike: “Your new horizon”.
AREA OF USAGE
Tours | Adventure – perfect for long discovery tours on and off the road.
MOTOR
Shimano Steps, DU-EP801, 25 km/h, 85 Nm, mid-motor
Discover the next levell of e-bike riding with the Shimano Steps DU-EP801 mid-motor. With a powerful torque of 85 Nm and a maximum assist speed of 25 km/h, you will experience a completely new driving experience. Thanks to its position in the bottom bracket area, the mid-motor provides balanced weight distribution and a natural riding experience while helping you climb hills and cover long distances with ease.
Gear system
The AMOLA Aventuro e-trekking bike's gear system uses the proven Rohloff SPEEDHUB 500/14 rear derailleur, which is known for its robustness and precision. With 14 gears and a spread of 526 %, it offers a wide selection for any terrain. The Rohloff shifter allows for easy and precise shifting, while the freewheel allows for effortless gear changes. This high-quality combination guarantees reliable performance and longevity for riders of all experience levels.
Frame |
Wave-Fully, aluminum |
Rear brake |
Hayes, Dominion A2 |
Suspension fork |
RockShox, 35 SILVER TK, 120 mm travel |
Brake disc front |
Hayes, D-Series, 203 mm, IS 6-hole |
Shock |
RockShox, Deluxe Select+, 120 mm travel |
Brake disc rear |
Rohloff, 180 mm, IS 6-hole |
Handlebar |
HoheAcht, 31.8 mm, width 720 mm, bend 9°, rise 25 mm, aluminum, black |
Saddle |
Brooks, B17 Sport, black |
Stem |
HoheAcht, 60 mm, ±7°, aluminum, black |
Seatpost |
HoheAcht, Seatpost 2D, 30,9 mm x 350 mm, 10 mm offset, aluminum |
Grips |
Brooks, Ergonomic Rubber Grips, 130 mm / 100 mm |
Rack |
AtranVelo, Tour 365 BS H-Cargo, 27 kg payload |
Headset |
ACROS, zs56, zs66, industrial bearings, integrated cable routing |
Front light |
Lezyne, E-Bike Classic HB StVZO E800, 11 - 15 V, LED, 13 W, max. 800 lm |
Rim |
Mach1, Trucky 30, 27,5'', aluminum, black |
Rear light |
Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector |
Wheel size |
27,5 inch |
Mudguard |
ChingChern, aluminum, powder-coated |
Tyres |
Schwalbe, Al Grounder, 27.5'' x 2.35'' (60-584), Reflex |
Battery lock |
ABUS, BLO SHI IT2 XPLUS |
Front wheel hub |
Formula, DC-711, Disc, 15 x 110 mm, 6-hole, industrial bearings, Boost |
Side stand |
Ursus, R81 Wave, KSA 40 mm, rear |
Rear wheel hub |
Rohloff, SPEEDHUB 500/14 A12, 15 x 148 mm, Boost |
Pedals |
Marwi, SP-2160, AL-6061 Extrusion T6 |
Sprocket |
Gates, CDX pulley, 19 teeth, Rohloff plug-in version |
Motor |
Shimano Steps, DU-EP801, 25km/h, 85 Nm, mid-motor |
Drive belt |
Gates, 130T CDX, black |
Battery |
Shimano Steps, BT-EN806, 630 Wh, integrated |
Crankset |
Chainring Gates, 42T CDX + Spider + trouser guard ring, aluminum |
Display |
Shimano Steps, SC-EN600, Bluetooth, ANT Private |
|
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Charger |
Shimano Steps, EC-E8004, 4 A |
|
Derailleur |
Rohloff, SPEEDHUB 500/14, 14-speed hub gear, freewheel |
||
Shift lever |
Rohloff, SPEEDHUB 500/14 A12, twist shifter, 14 gear |
Weight |
From 28.0 kg |
Front brake |
Hayes, Dominion A4, four-piston |
Max. permissible weight |
160 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
Frame size (cm) |
42 |
48 |
55 |
Seat tube (mm) |
420 |
480 |
550 |
Top tube horizontal (mm) |
600 |
620 |
620 |
Head tube (mm) |
175 |
175 |
195 |
Wheelbase (mm) |
1210 |
1230 |
1232 |
Chainstays (mm) |
515 |
515 |
515 |
Bottom bracket height (mm) |
313,5 |
313,5 |
313,5 |
Head tube angle (°) |
69 |
69 |
69 |
Seat angle (°) |
74 |
74 |
74 |
Stack (mm) |
673 |
673 |
691 |
Reach (mm) |
407 |
427 |
422 |
Body height (cm) | 160 - 170 | 170 - 180 | 180 - 190 |
